DEUTZ-FAHR F410 GS-4C

Deutz-Fahr F410 Agroplus GS

Engine
SDF 1000 Series Tier 3 Diesel Engine; 4 Cyl / 4000cc Turbocharged; Liquid/Oil Cooled
Individual Bosch Injection System
85 hp (2005/25/CE)
Torque 345nm
Engine Speed Programming
Down Swept Side Exhaust
55lt Fuel Capacity

Transmission
30/15 Forward and Reverse Gears
Wet Clutch Power Shuttle
4 Wheel Independent Braking
Front & Rear Diff Lock- Push Button
40 km/h Road speed

Hyd/Linkage/Drawbar
Open Centre Hydraulic System
54 l/min Hyd Pump
26 l/min Steering Hyd pump
3 Set of Remotes
1 Kick out / 1 Detent / 1 Float
Flow control on one Remote
Mechanical Three Point Linkage Position & Draft Control Settings
Cat 2 hook ends Swinging Drawbar

PTO
Independent Hydraulic Rear PTO
Push Button engagement
2 Speed PTO 540/750
13/8 6 Spline PTO Shaft

Operator Environment
4 Post Hi Visibility Air-Conditioned Cab
Carbon Filters

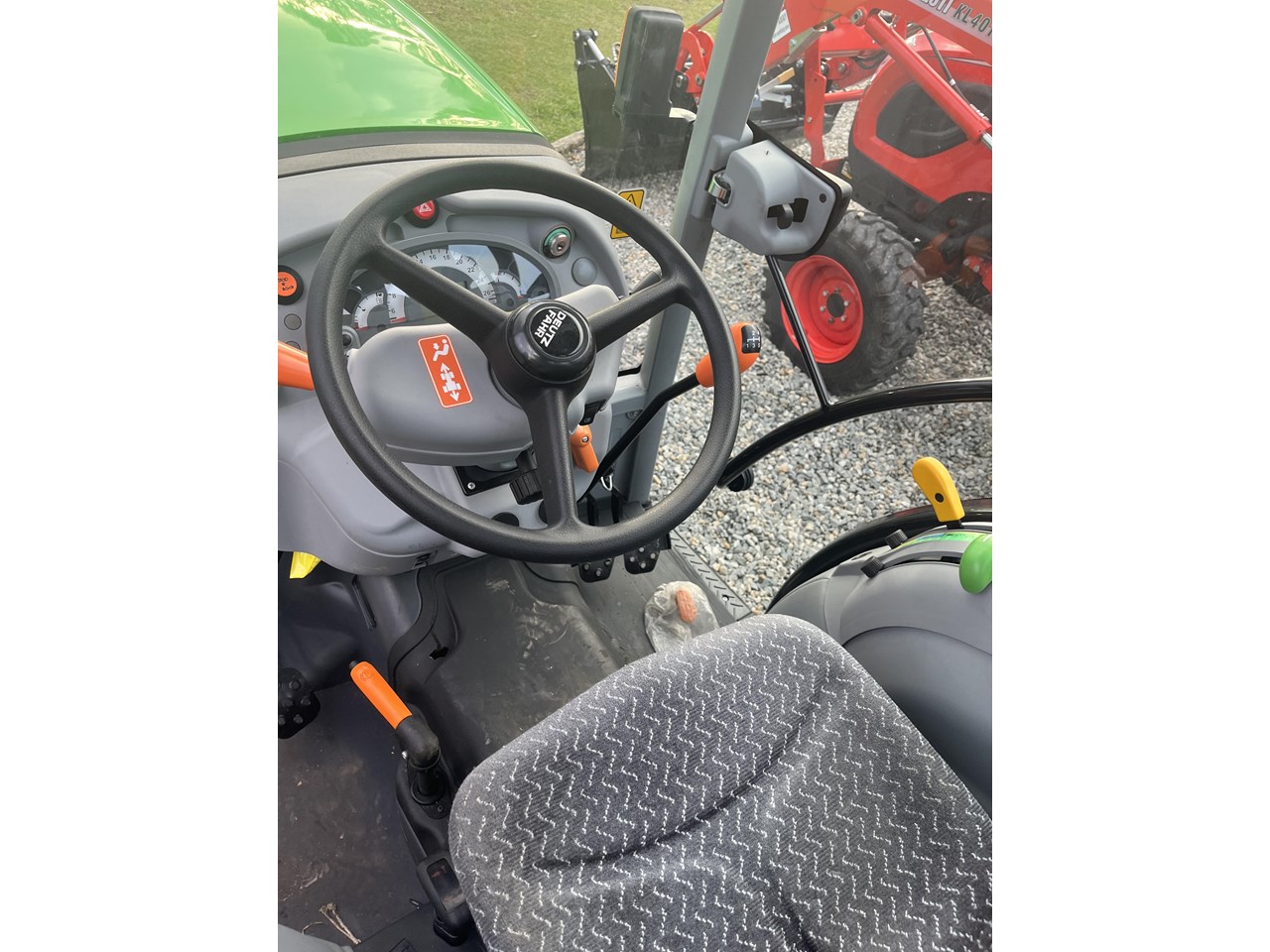

Ergonomic Controls
Multi-Function Digital Dash

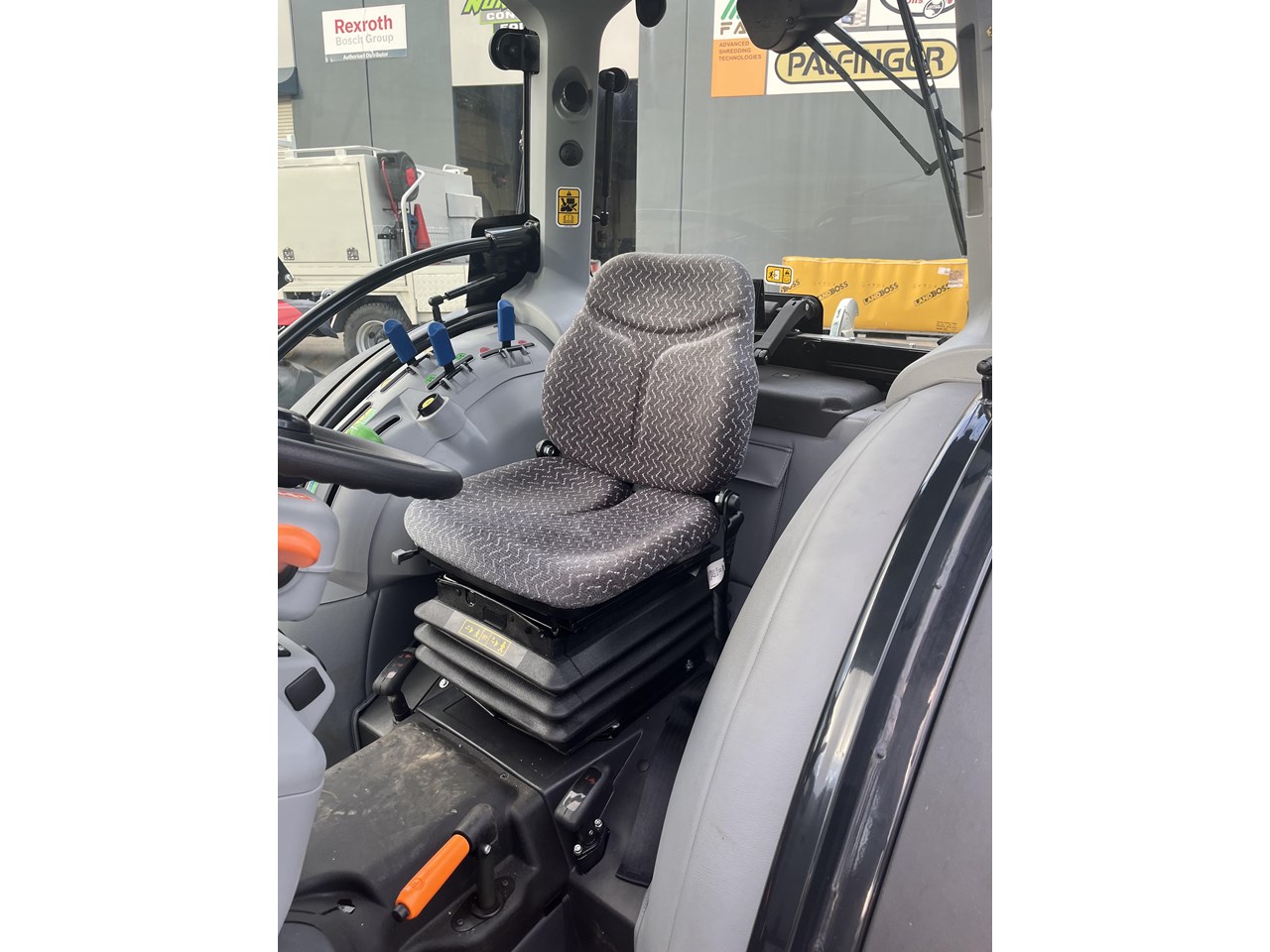

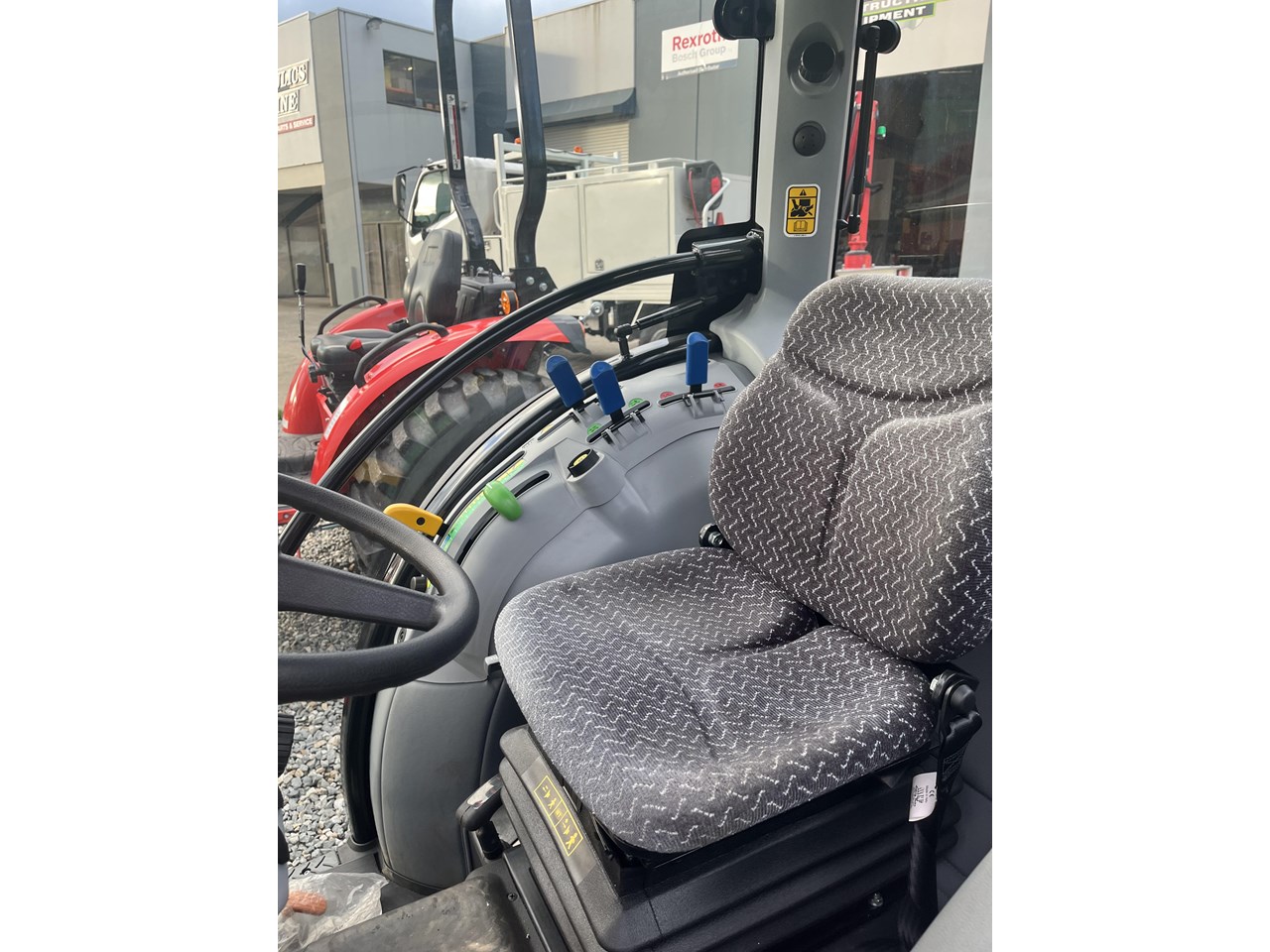

Deluxe Air Seat
MP3 Radio Player with Twin Speakers Telescopic Mirrors
4 Cabin Work Lights
2 Bonnet Front Work Lights
Rotating Beacon

Weights & Dimensions
Wheelbase 2120mm
Length 3338mm
Total Height 2290mm
Total Weight 3000kg
