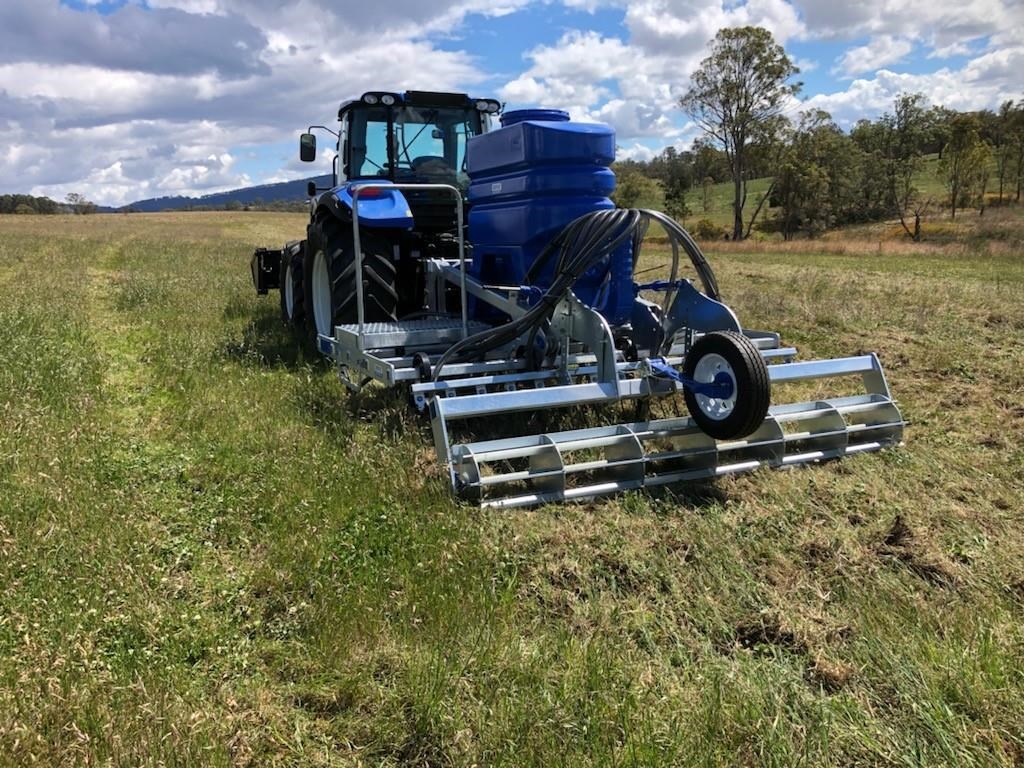

DOYLE CULTI-DRILL CD3001
Price:
$32,900*
Report Listing
Contact Seller
Features
| Title | DOYLE CULTI-DRILL CD3001 |
| Make | DOYLE |
| Price | $32,900 plus GST |
| Listing Type | New |
| Stock Number | S40 |
| RefCode | TA1105262 |
| Class | Drills |
| Seedbox Capacity - litres | 800 |
| Row Spacing - mm | 150 |
| Working Width - m | 3 |
Description
CD3000 CD6000 Culti-Drill
Conventional Tillage or Direct Drilling the CD has you covered!!
- Proudly Australian made
- The CD series is a multi-purpose machine based on our HD Spring Tyne Cultivator.
- It allows a quick conversion between a conventional cultivation and direct drill modes.
- 30 minute conversion from a heavy duty Spring Tyne cultivator to a economical Tyne Direct Drill
- 3.0m version is designed to be used on tractors from 100hp
- 65x65x6mm RHS and 12-16mm 350 grade plate frame makes for an extra heavy duty machine with built-in penetrating weight
- 5 toolbars on 500mm spacings for superior trash handling capability
- HD 45x12mm S-Tyne + 45x10mm helper spring
- Single bolt BOSS3 McCoy lucerne points
- Narrow 10mm wide x 75mm deep tungsten tile
- Low disturbance at shallow or deep levels
- Longer life unlike a baker boot, rock damage to the tip does not seriously affect operation
-Single bolt BOSS1 cast baker boots available
- 1 row of 10mm swept harrows for seed covering or soil levelling
- 400mm full width crumble bar roller for excellent depth control and seed bed production.
- DOYLE SSB300 300Litre poly seed box or DELIMBE SB800 litre poly seed box
- Mechanical Vari-box infinitely variable seed rate
- High flow electric fan (300L box) or hydraulic fan(800L box)
- The drought highlighted the shortcomings of current pasture tyne equipped direct
- Lack of penetration especially with front disc coulters engaged
- Lack of trash handling capability especially with disc-coulters dis-enagaged
- Hard bottomed, open, tilth-less seed slots exacerbated by damaged/worn baker boots
- Lack of tilth and seed cover
The DOYLE CD drill design has addressed all these issues plus more
Conventional Tillage or Direct Drilling the CD has you covered!!
- Proudly Australian made
- The CD series is a multi-purpose machine based on our HD Spring Tyne Cultivator.
- It allows a quick conversion between a conventional cultivation and direct drill modes.
- 30 minute conversion from a heavy duty Spring Tyne cultivator to a economical Tyne Direct Drill
- 3.0m version is designed to be used on tractors from 100hp
- 65x65x6mm RHS and 12-16mm 350 grade plate frame makes for an extra heavy duty machine with built-in penetrating weight
- 5 toolbars on 500mm spacings for superior trash handling capability
- HD 45x12mm S-Tyne + 45x10mm helper spring
- Single bolt BOSS3 McCoy lucerne points
- Narrow 10mm wide x 75mm deep tungsten tile
- Low disturbance at shallow or deep levels
- Longer life unlike a baker boot, rock damage to the tip does not seriously affect operation
-Single bolt BOSS1 cast baker boots available
- 1 row of 10mm swept harrows for seed covering or soil levelling
- 400mm full width crumble bar roller for excellent depth control and seed bed production.
- DOYLE SSB300 300Litre poly seed box or DELIMBE SB800 litre poly seed box
- Mechanical Vari-box infinitely variable seed rate
- High flow electric fan (300L box) or hydraulic fan(800L box)
- The drought highlighted the shortcomings of current pasture tyne equipped direct
- Lack of penetration especially with front disc coulters engaged
- Lack of trash handling capability especially with disc-coulters dis-enagaged
- Hard bottomed, open, tilth-less seed slots exacerbated by damaged/worn baker boots
- Lack of tilth and seed cover
The DOYLE CD drill design has addressed all these issues plus more
