Price $27,500
Listing Type New
Stock Number S23
RefCode TA1178907

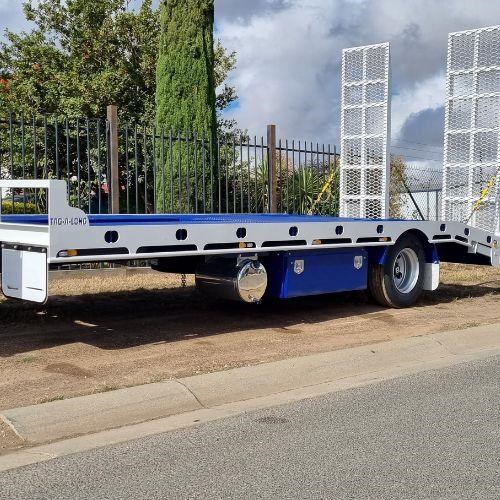

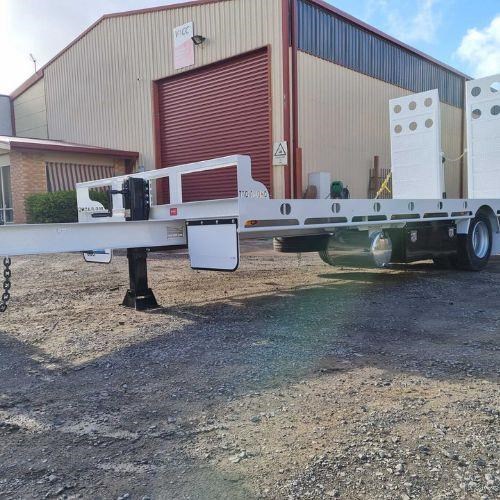

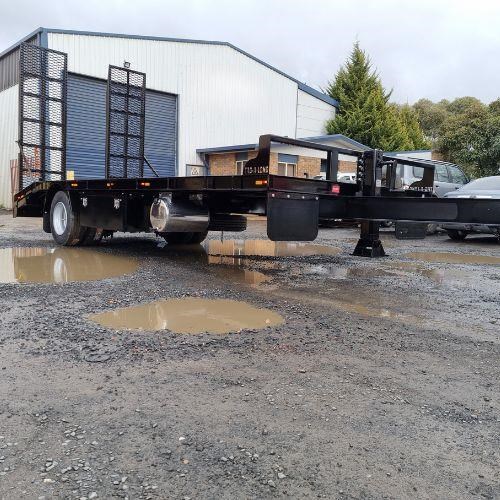

Trailer Type: Singe Axle Mini Tag Trailer
Make: Tag A Long
Gross: 9000kg
Tare: 2500kg
Capacity: 7000kg
Overall length including drawbar: 6800mm
Width: 2500mm
Deck Height: 870mm with 235R75 17.5
Deck & Floor: 4000mm Long x 2500mm Wide 5mm Checker Plate C/W floor supports, chain down points every meter.
1000mm Long x 2500mm Wide, 5mm Checker Plate, Covered with rear centre well with rear
swing down legs. Total Deck Length 5000mm
Including Coupling 1500mm Height: Standard 650 to centre of eye
200UB 18.2KG
Cross Members
75mm x 50mm x 3mm RHS
Combing Rails 8 mm Laser Cut with vertical tie down bars and rope rails Suspension Underslung spring suspension 9 leaf Make Maxis Axle 17.5 S/Cam 10 stud 225 PCD Make Maxis Tyres & Rims 4 x 235R75 17.5 on 10 Stud Steel 17.5 Rims Braking System PBR standard c/w type 24/30 boosters conforming to ADR 38/02 Male/Female Fitting with 24v ABS brakes and auto slack adjusters. Coupling Pintle coupling 6.5 Ton Vertical loading. Safety Chains 13mm Chains Fitted Landing Leg Two Speed with rocker foot
Water Tank 1 x Bracket Only Hurdle Fixed 300mm high Mud Guards Mud guards fitted to front and rear of tyres. White rubber mud flaps fitted to the front and rear of trailer. Lights Heavy Duty LED lighting and harness system are fitted to comply with ADR regulations. They are functional, have long lasting Quality and easy to replace. 4 x Red/Amber side lights per side. Jumbo Rear lights with reverse and 2x number plate lights Ramps 2100mm x 760mm Spring Loaded Rear Ramps Covered In Mesh. Finish Sandblasted, etch primed and painted in primary Mack White 2 Pac colour with secondary Black 2 Pac colour.
All trailers are painted & baked in our specially heated spray booth for maximum quality finish
All our trailers are ADR compliant approved.
All our trailers are 100% built in Australia and we employ locals.
Registration is not included in pricing
