KUBOTA L2201DT TRACTOR + 4 IN 1 LOADER + BACKHOE for sale $21,900

kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 001 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 002
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 003 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 004
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 005 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 006
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 007 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 008
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 009 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 010
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 011 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 012
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 013 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 014
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 015 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 016
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 017 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 018
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 019 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 020
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 021 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 022
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 023 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 024
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 025 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 026
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 027 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 028
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 029 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 030
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 031 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 032
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 033 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 034
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 035 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 036
kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 037 kubota l2201dt tractor + 4 in 1 loader + backhoe 644616 038
CALL 02 8315 0078
Title KUBOTA L2201DT TRACTOR + 4 IN 1 LOADER + BACKHOE
Make KUBOTA
Price AUD $21,900 Remanufactured tractor
Listing Type Used
Stock Number S122
Refcode TA917635
Drive Type 4WD
FEL YES
Number Cylinders/cc 3/1115cc
Rated Engine Power - hp 25

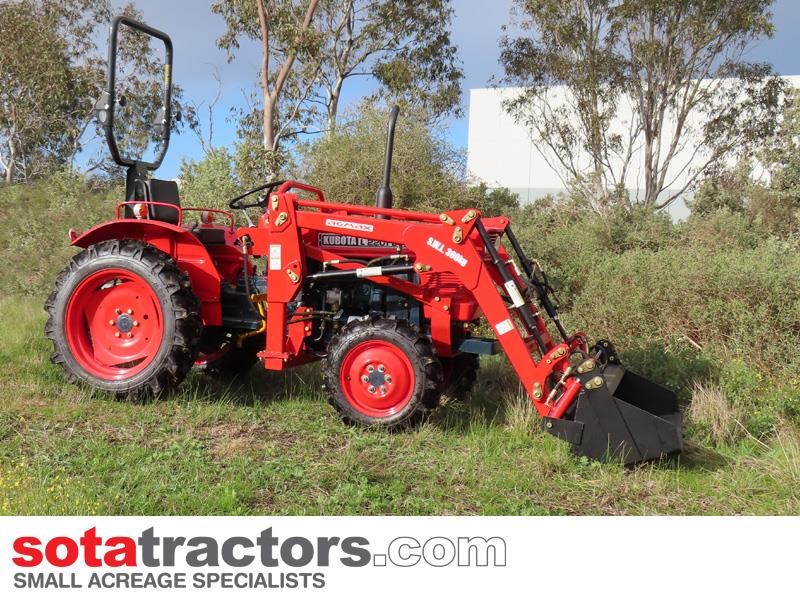

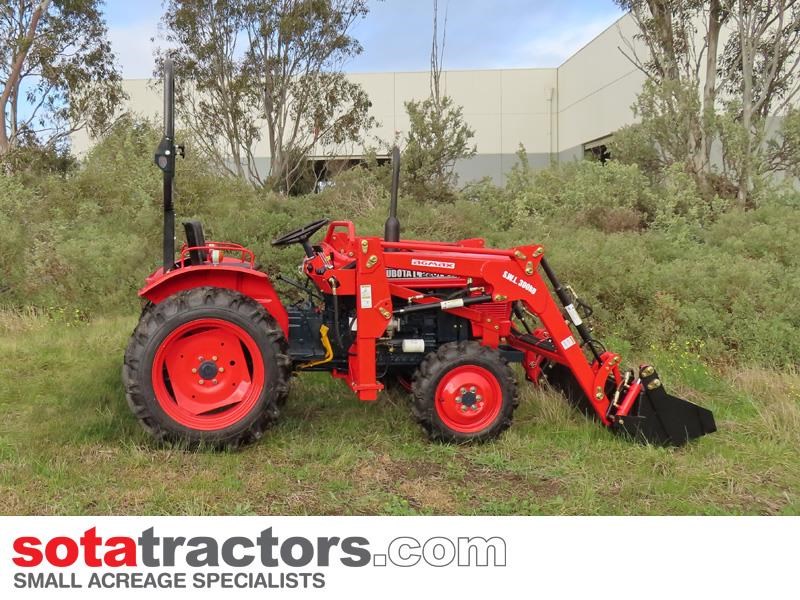

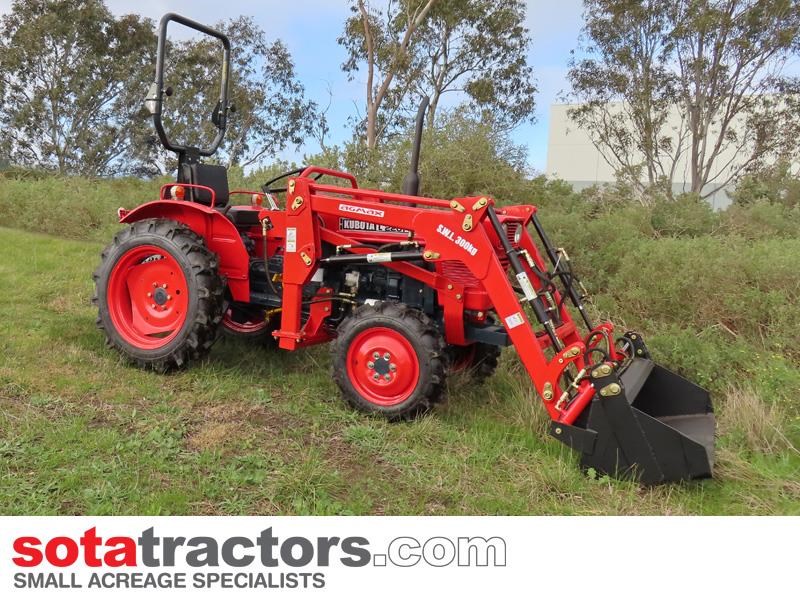

This listing is for a remanufactured L2201DT Kubota tractor, with a 4-in-1 front end loader and a Del Morino RES10 backhoe.

VIEW THE FULL L2201DT PACKAGE
Copy and paste this link into your browser to view:
http://www.sotatractors.com/tractors-for-sale/tractor-loader-backhoe-2/

SOTAs Kubota 01 series are especially good value when matching horsepower for dollars. This Kubota L2201DT 25hp diesel 4WD with front end loader is the largest tractor in the 01 series. It is not a new tractor; it is a remanufactured tractor that has been rebuilt to a fixed specification.

A SOTA remanufactured Kubota tractor has been dismantled down to the transmission and key components of the engine, clutch, brakes, hydraulics and starting system that is tested and replaced as required. The tractor is then rebuilt.

Buying a remanufactured Kubota is a cost effective way of purchasing a reliable, high quality tractor that is supported like a brand new tractor. The powerful Kubota tractor range is ideal for landscaping, small farming and other agricultural applications. With 16 speed transmissions and creeper gears as a standard kit, the 01 series are excellent workhorses and have the capacity to handle a full range of implements including 4-in-1 loaders, post hole diggers, box scrapers, backhoes, rotary hoes, flail mowers, chippers, bale spikes and stick rakes.

SOTA remanufactured tractors come with a certified Hercules ROPS, operators manual, comprehensive safety manual, spare parts back up and a 3 month written warranty. An extended warranty is available for $550. This covers engine and transmission for a further 15 months. There is a 2 year warranty on the AGMAX front end loader.

The Del Morino RES10 is the best backhoe for a sub-compact tractors in Australia. In the RES10, Del Morino have been able to engineer a very light and fully-functional backhoe that is stable and transports safely on your tractor's three point linkage. It may also be folded close to the tractor, compactly and conveniently, for storage. The Del Morino backhoe has a 2 year warranty.

------------------------------------------------------------------------------------------------------------------------------
FEATURES & BENEFITS

The Remanufactured Kubota L2201DT offers:

> Self levelling 4-in-1 loader
> SWL 300kg
> 3 cylinder, direct injection, diesel engine
> Transmission (16 forward, 4 reverse)
> 2WD/4WD selection
> Creeper gears
> Rear differential lock
> Single stage clutch
> Split brakes
> 4 speed PTO
> Certified (AS 1636) ROPS and seat belt
> Accepts standard Cat 1 TPL implements

------------------------------------------------------------------------------------------------------------------------------
KUBOTA L2201 SPECIFICATIONS

> Engine Model: Kubota DH1100
> Engine Type: Diesel
> Engine Gross Power: 25hp
> PTO: 4 Speed 22hp
> No of Cylinders: 3
> Total Displacement: 1115cc
> Gearbox: Manual
> Battery: 12v
> Fuel Tank Capacity: 22L
> Drive: 4 x 4
> Transmission: 16 Forward, 4 Reverse
> Brake: Wet Disc
> Clutch: Dry Single
> Rear PTO Revolutions: 540/810/1160/1480rpm

------------------------------------------------------------------------------------------------------------------------------
HYDRAULICS

> Lift Control Type: Position
> TPL: Cat 1
> SWL 300kg

------------------------------------------------------------------------------------------------------------------------------
STANDARD TYRE SIZE

> Front: 6 x 14
> Rear: 8.3 x 22

------------------------------------------------------------------------------------------------------------------------------
DIMENSIONS

> Overall Length: 3400mm
> Overall Width: 1350mm
> Overall Height (Including ROPS): 2220mm
> Min. Ground Clearance: 290mm
> Weight w/ Loader: 1190kg

------------------------------------------------------------------------------------------------------------------------------
FEATURES & BENEFITS

The Del Morino RES10 backhoe offers:

> 180 degree arm rotation (side shift lock)
> High performance, cast iron pump
> Case hardened steel pins - all pivot points
> Self lubricated bushes
> Easy access and ergonomic seat (adjustable)
> Stabiliser legs with locking valves
> Italian hydraulic pumps, by META
> Italian hydraulic cylinders
> Italian hydraulic hoses, by TEKNO
> Purpose-specific buckets
> Independent, hydraulic stabiliser legs
> Hydraulic control unit with pressure regulator
> Tilt seat with gas strut

------------------------------------------------------------------------------------------------------------------------------
DEL MORINO RES10 SPECIFICATIONS

> Tractor HP: 18-30
> TPL: Cat 1
> Arm Length: 220cm
> Maximum Working Height: 160cm
> Maximum Digging Depth: 140cm
> Digging Bucket: 25cm
> Stabilising Leg Maximum Height: 30cm
> Side Shift: No
> Shifting Lock: N/A
> Tearing Power At Tooth: 1200kg
> PTO: 540rpm
> Weight: 236kg

------------------------------------------------------------------------------------------------------------------------------
WARRANTY

The Kubota L2201DT is a value-priced, fully supported 25hp tractor, which means it is backed by SOTAs renowned after-sales support. SOTA has a comprehensive inventory of spare parts on hand, including all consumables such as filters, belts and so on. This tractor has a 3 month written warranty:

> Standard 3 month warranty: comprehensive warranty, including parts, labour and all travel expenses.
> Optional 15 month warranty extension: effective on expiry of standard 3 month warranty. Additional coverage of powertrain for 15 months.

Your tractor package is backed by SOTAs high standard of customer service we dont forget you once youve made your purchase.

We carry a huge range of spare parts in stock and supply directly to our customers. We offer full tractor servicing at each of our branches in VIC, NSW and QLD and we also offer onsite tractor servicing.

------------------------------------------------------------------------------------------------------------------------------

Our experienced diesel mechanics are fully equipped with onsite service trucks. They are always happy to share their expert knowledge and answer any maintenance questions you may have.

Delivery is available POA. A Kubota L2201DT 25HP diesel 4WD can be transported in a large trailer if necessary.
