Tractors / Tractor Attachments

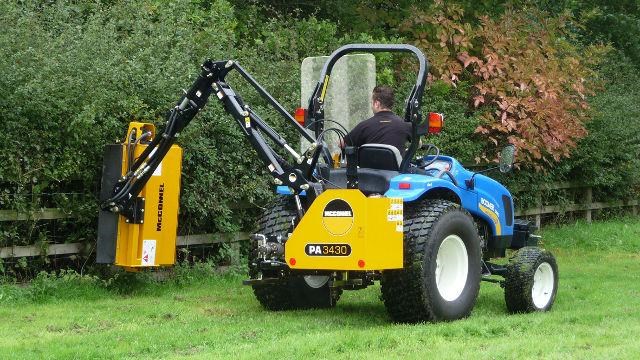

mcconnel power arm 3430 225396 001 mcconnel power arm 3430 225396 002
CALL 03 8373 7076
Price POA
Listing Type New
Stock Number S129
Refcode TA542947


3.4m reach
Left hand or Right hand build option
Three-point linkage mounting, (CAT I & CAT II)
Parallel arm geometry
Hydraulic safety breakaway
Low power requirement
High performance hydraulic system
Storage support legs
Operator friendly
Front mounted build option
Horticultural/ landscape
Groundcare/ Amenity
Tractor Requirements

1300kg minimum tractor weight
35hp minimum tractor horsepower


Lift Float Kit
The McConnel lift float kit enables the Flailhead (or other attachments) to automatically follow the contours of the ground in a vertical plane. Ideally suited for verge mowing the lift float kit greatly reduces the need for input. Activating the Lift Float mode is done via the in-cab Power Arm controls.
Angle Float Kit (Cable Controls Only) McConnel Angle float kits are fitted to all Power Arms with Cable as standard. It enables the Flailhead (or other attachments) to automatically follow the contours of the ground in a horizontal plane. Ideally suited for verge mowing the Angle float kit greatly reduces the need for operator input. Activating the Angle Float mode is done via the in-cab Power Arm controls.
Parallel Arm Geometry This feature enables the operator to adjust the reach of the machines arms, he need to continuously adjust the 'lift' service in order to compensate for the change in head pivot height - as would be the case with conventional arm geometry.
Safety Breakaway
All McConnel Power Arms incorporate a safety breakaway system that provides protection to the Power Arm and cutting attachment. Non Power Slew models use a mechanical system which allows the dipper arm to break back when the arms or cutting attachment comes into contact with a foreign object. Power slew models work in the same principle but break back movement comes via the slew ram.

Maximum Reach 3.4m
Machine Weight* 400kg
Power Arm Horsepower 30hp
Oil Tank Capacity 80ltr
Hydraulics Gear Semi Independent Optional
Gear Totally Independent Optional
Piston Hydraulics N/A
Attachment Method 3-point Linkage Standard
5-point Axle Bracket-Mounted N/A is the home of Farms & Farm Machinery magazine and has over 40,000 new and used agricultural machinery items for sale across a wide range of farming categories including agricultural parts, tractors, UTVs/ATVs, seeder drills, sheds, spreaders, tillage & seeding, backhoe loaders, mini tractors, sub-compact tractors and more.
