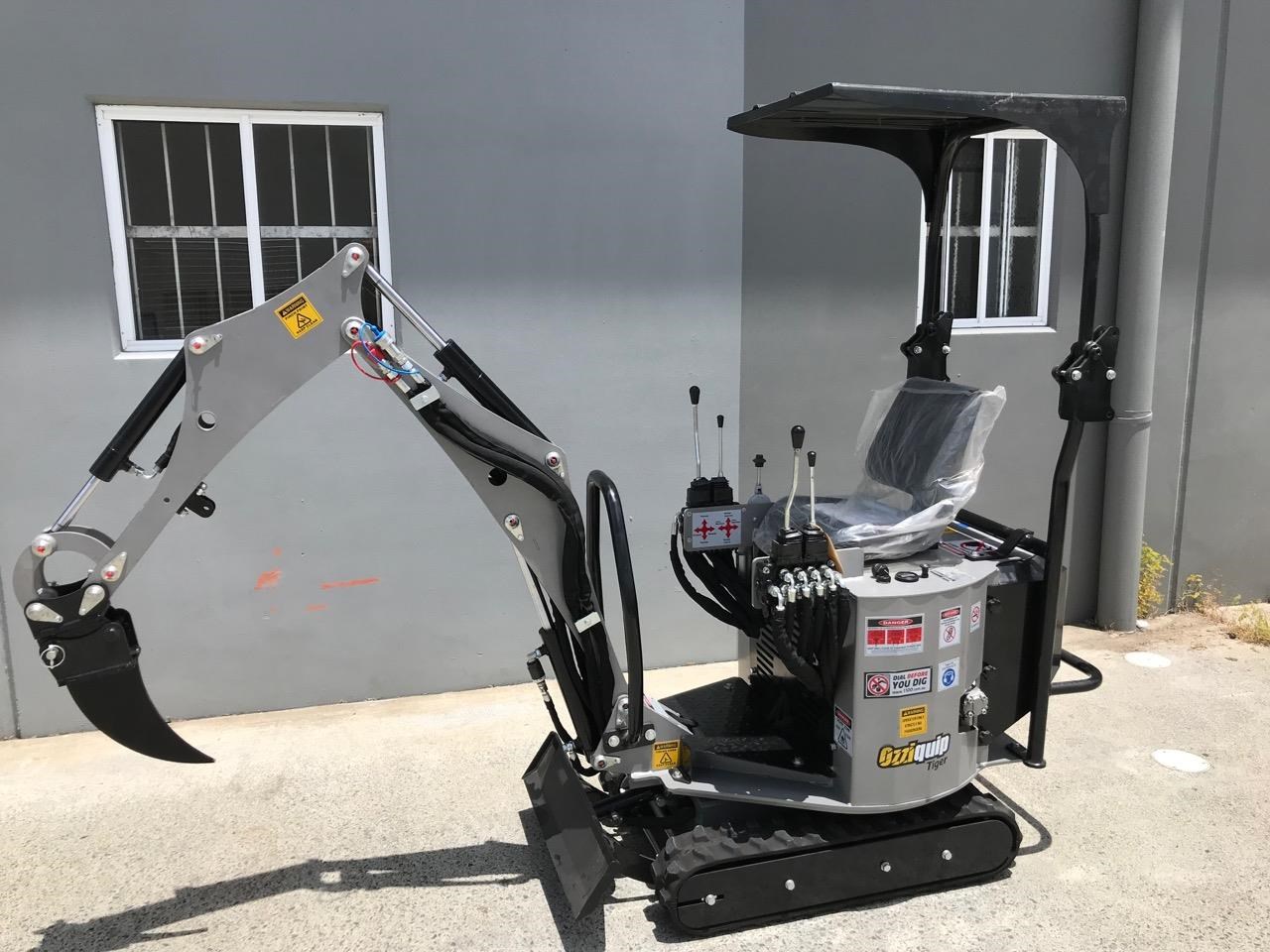

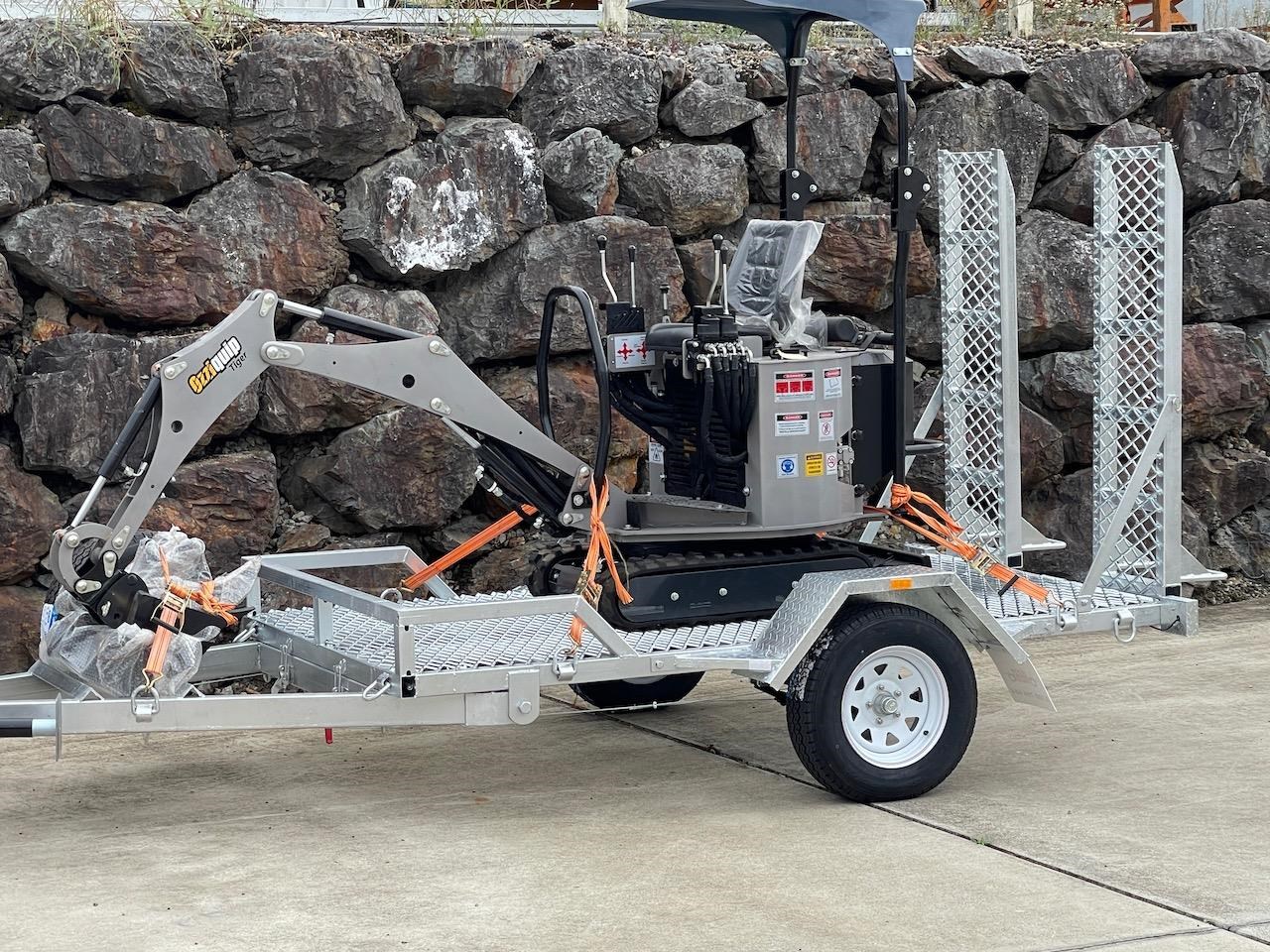

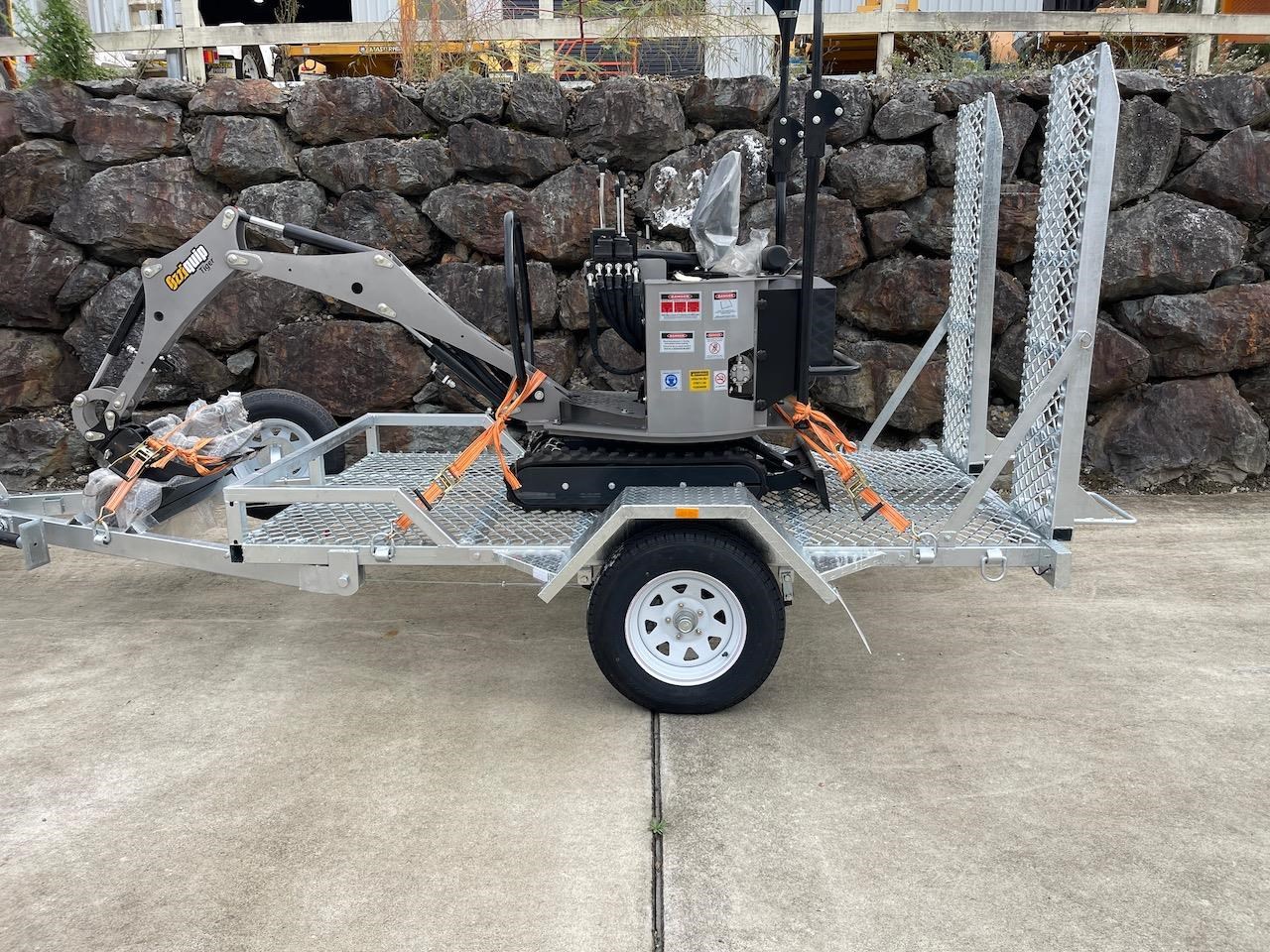

OZZIQUIP TIGER MK2 EXCAVATOR AND PLANT TRAILER PACKAGE
Price:
$14,900
Report Listing
Contact Seller
Features
| Title | OZZIQUIP TIGER MK2 EXCAVATOR AND PLANT TRAILER PACKAGE |
| Make | OZZIQUIP |
| Price | $14,900 |
| Listing Type | New |
| Stock Number | S4265 |
| RefCode | TA1191314 |
| Category | Mini Excavator |
| Operating Weight - MT | 0.7 |
Description
Technical specifications:
Engine: 13.5 HP Briggs & Stratton, 420cc
Fuel type: Regular petrol
Starter: Electric starter
Boom swing angle range: 360 degrees
Overloading height: max. 2144 mm
Dumping height: max. 1675 mm
Digging depth: max. 1456 mm
Reach: max. 2550 mm
Tractive performance: 0.9 t
Ripping force: approx. 550 kg
Load capacity (excavator arm fully extended): approx. 125 kg (dozer blade up)
Weight: approx. 590 kg
Shipping weight: approx. 600 kg
Width: 825 mm
Operational Specifications:

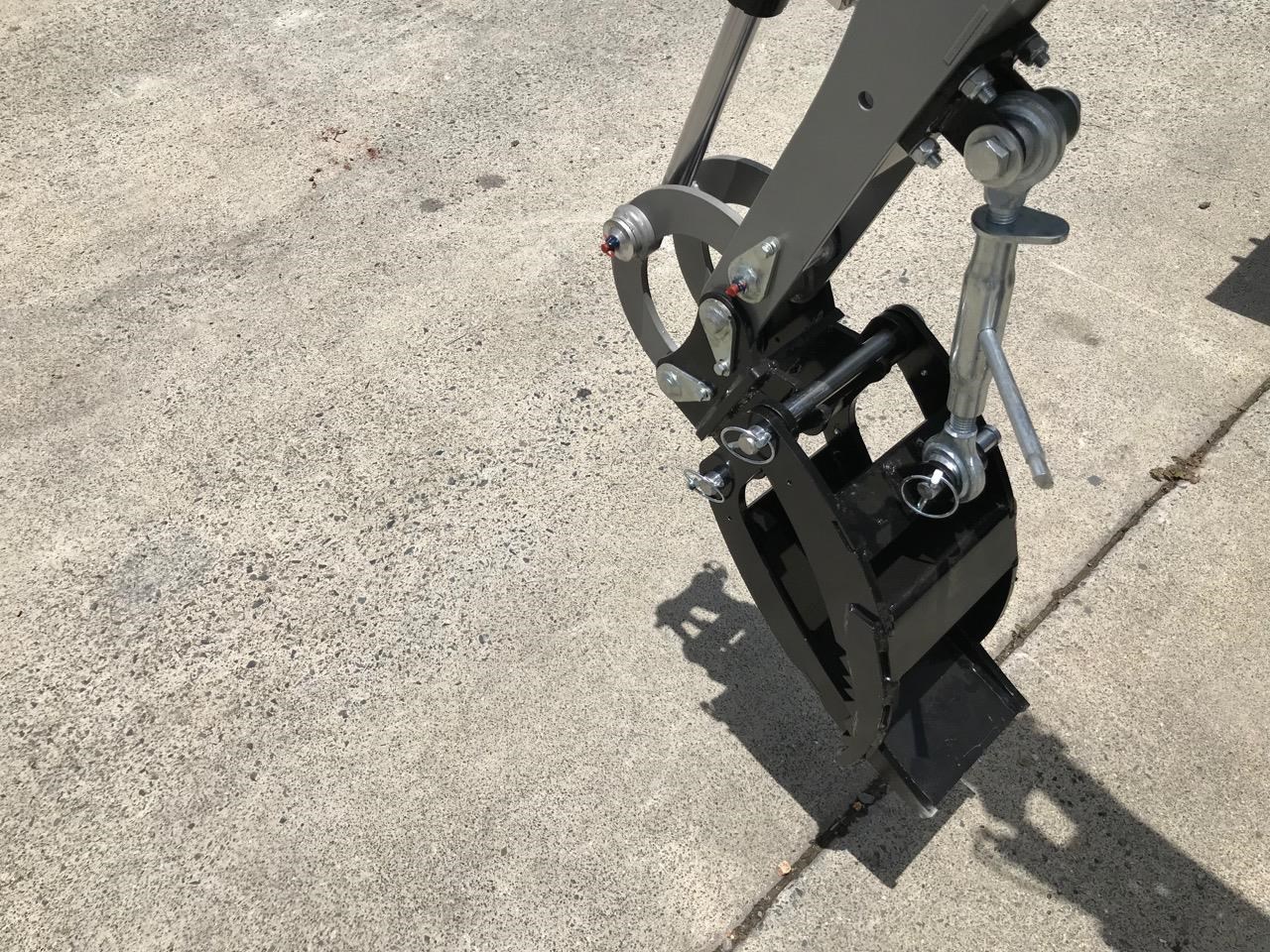

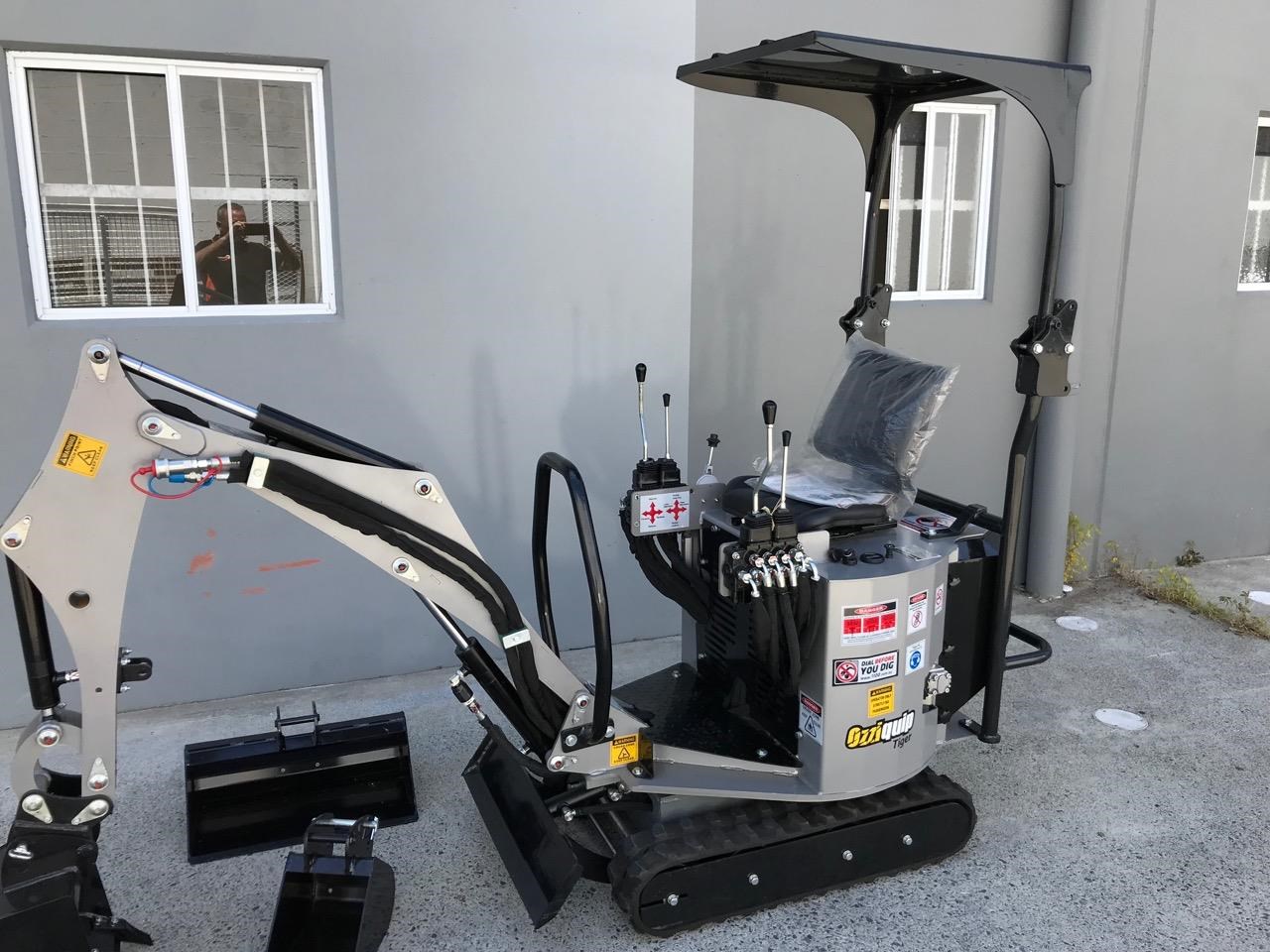

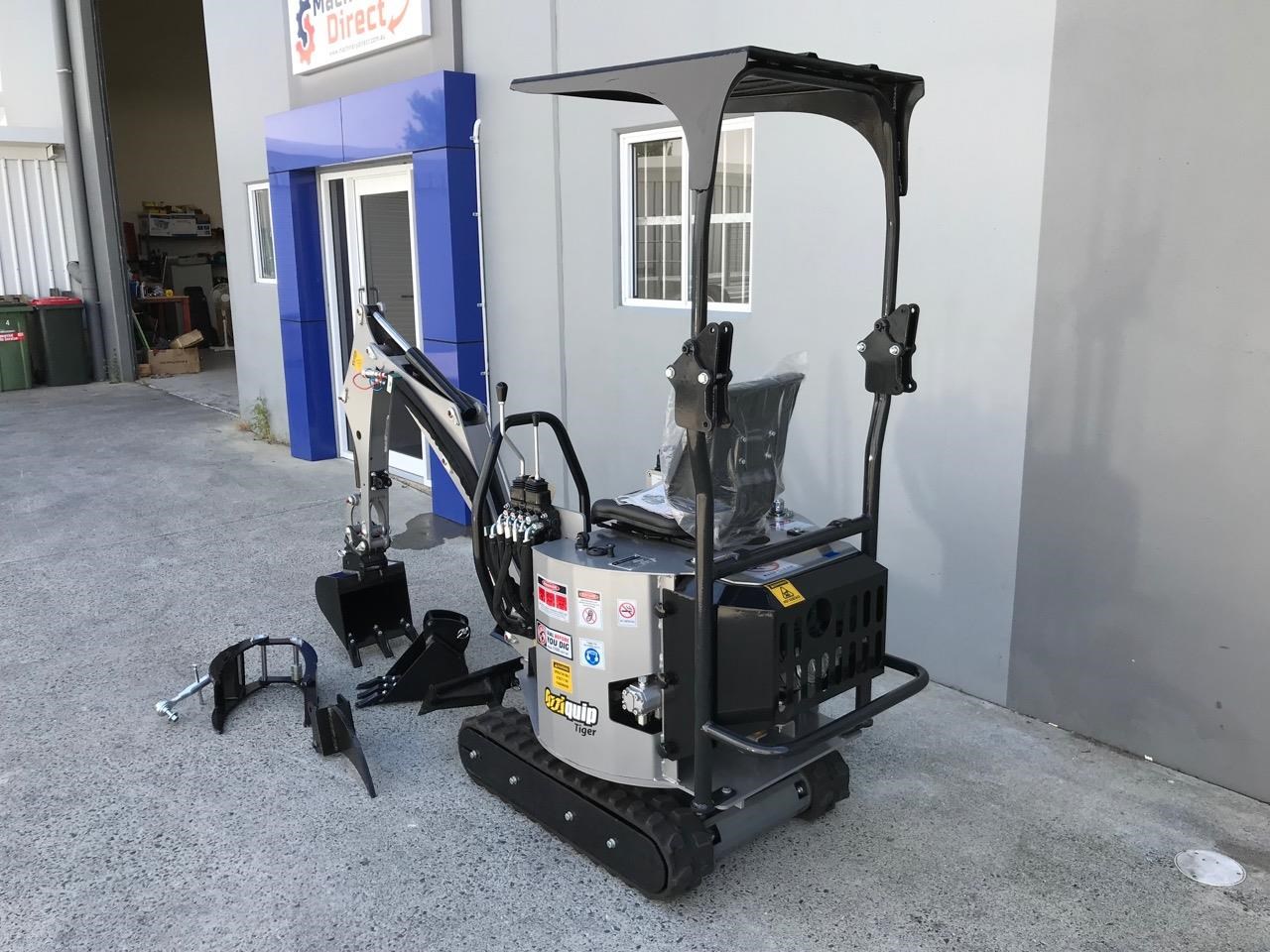

Complete set: incl. 20cm, 30cm & 60cm buckets, plus ripper and grapple
Electric starter: 12 Volt

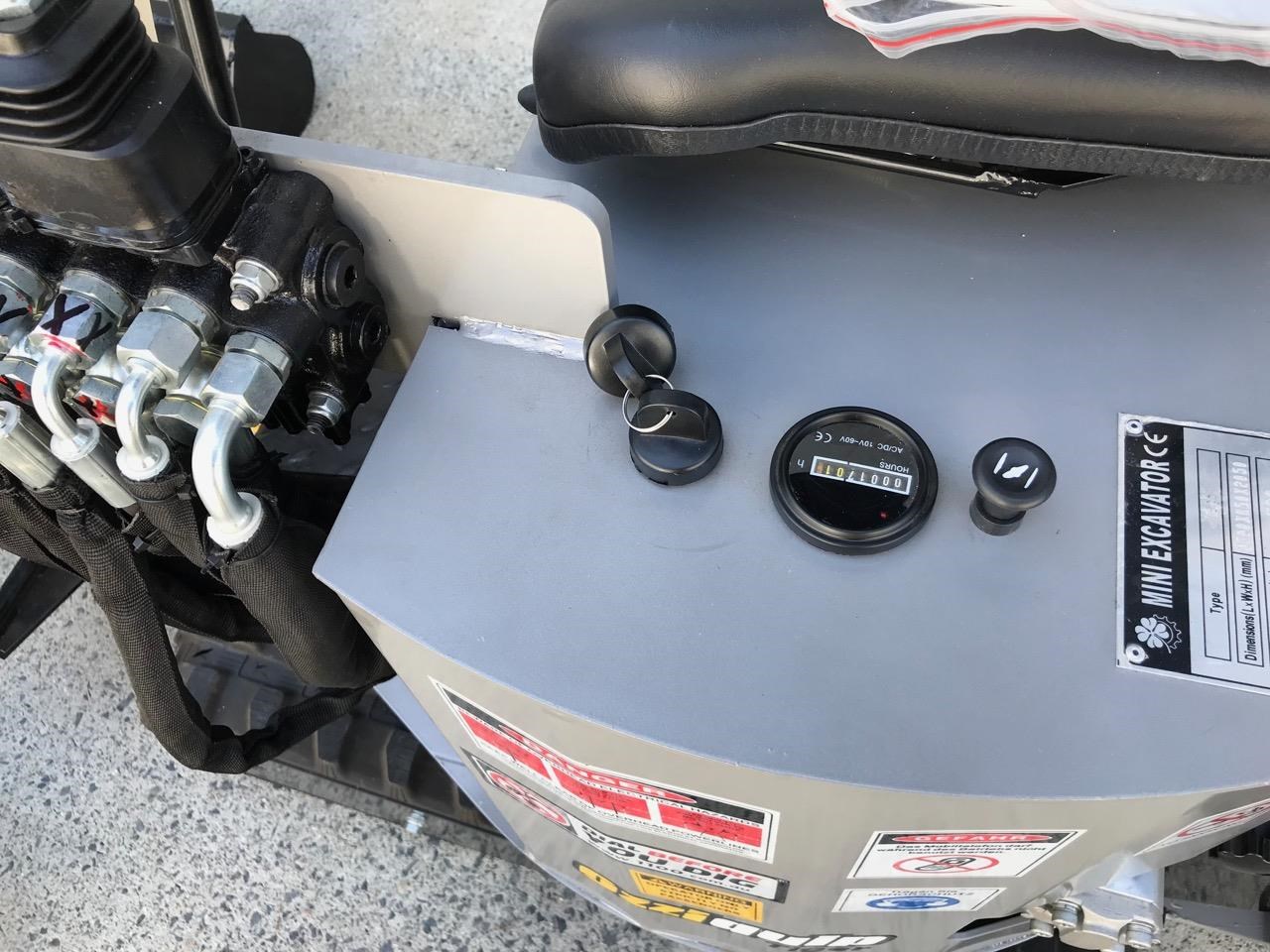

Operating hours meter
Fuel tank capacity: 6.5 litres
Oil tank capacity: approx. 23 litres
Swivel radius: 360°
Hydraulic flow rate: approx. 17 litres per minute
Operating pressure: approx. 160 bar
Special Features:

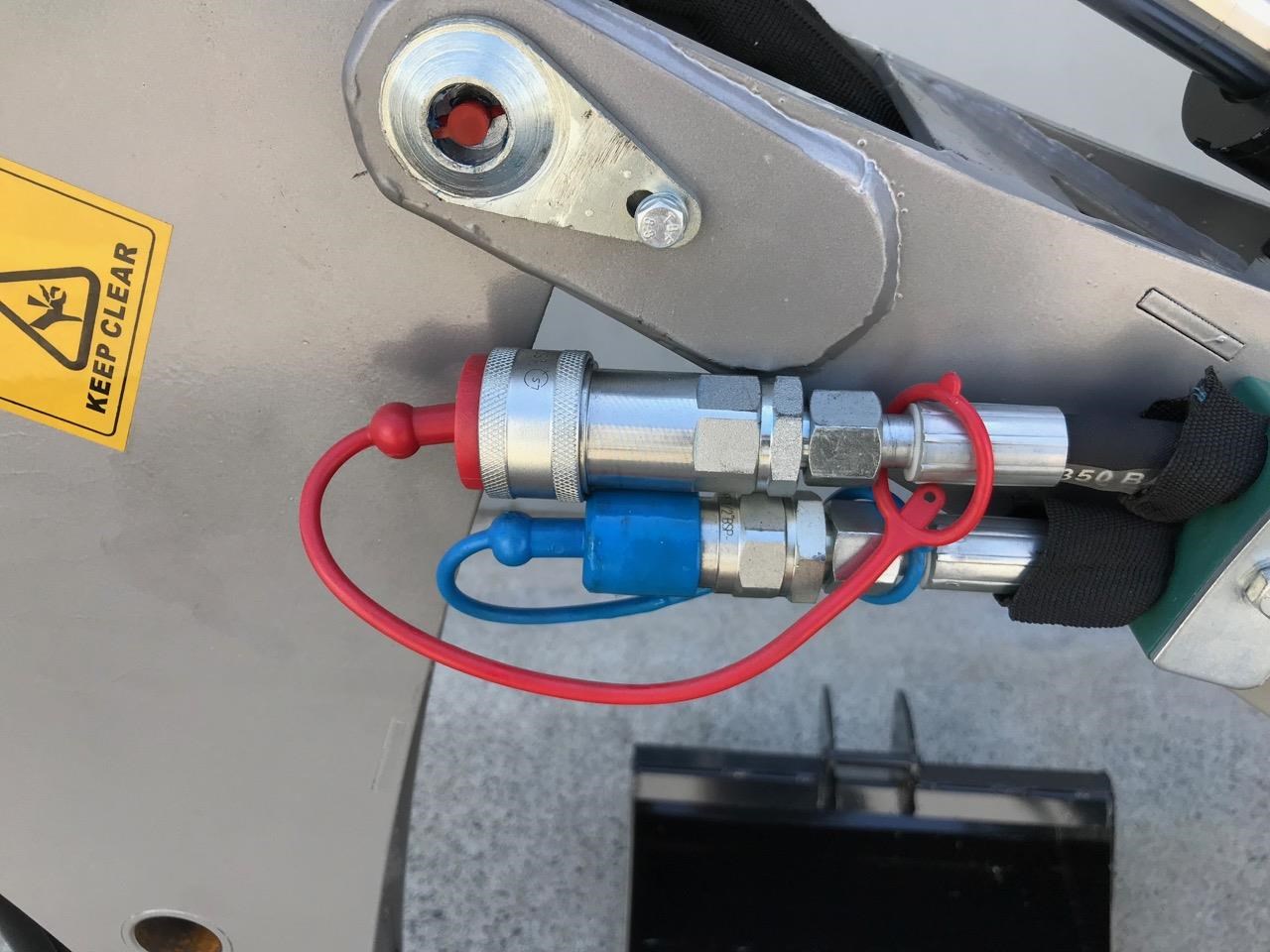

Additional hydraulic remotes on excavator arm
High quality, robust construction
Easy operation
Transport via trailer or inside a van
Passes through standard doors (Width: 825 mm)
Various attachments included
Equipped with half hitch
Powerful hydraulic pump unit

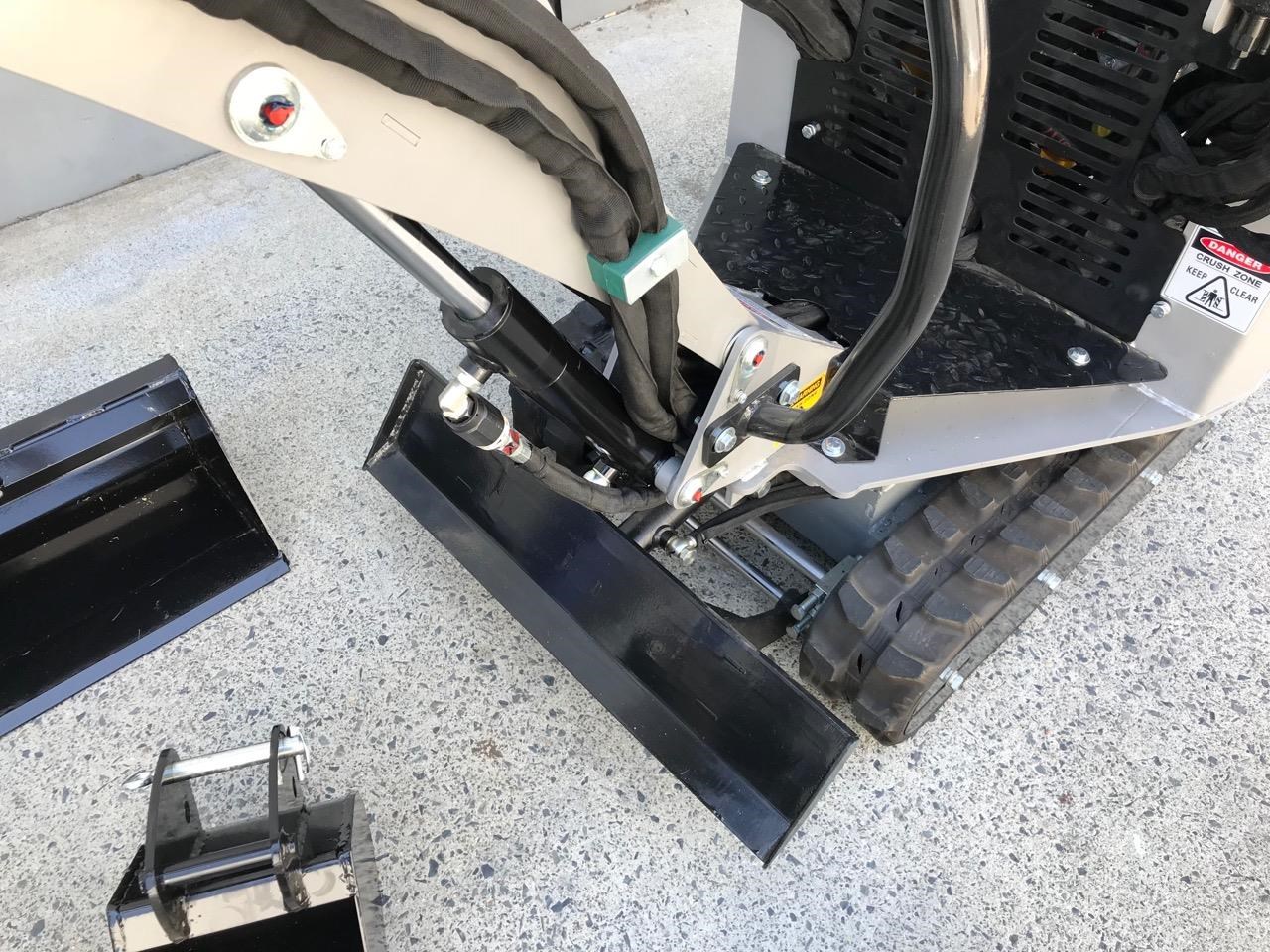

Hydraulic dozer blade lowering
High digging and ripping force
All lubricating points easily accessible

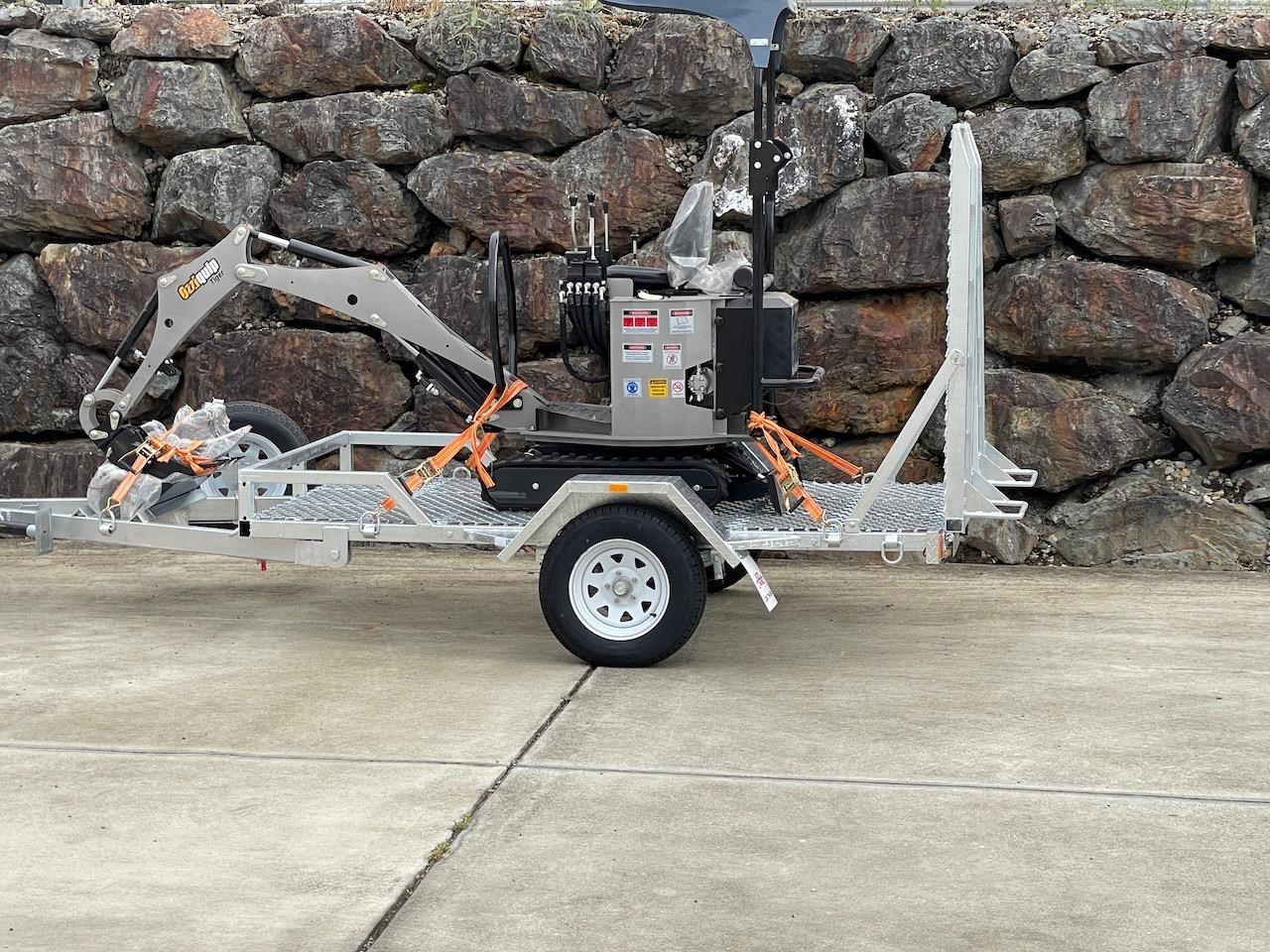

Single Axle Galvanised Ozzi Trailer Product Specifications
Product Features:
Tilting plant trailer with built in ramps
Single axle
Fully galvanised steel
Perfect for mini loaders like Dingo or Kanga, Scissor Lifts, Mini Excavators or ATVs.
Technical Specifications:
100x50x5mm Square Tube Drawbar 1600mm in length.
70x50x3mm Chassis fully galvanised
8mm Mesh Deck
1700mm Long Ramps, adjustable to the centre for narrow machinery.
Deck Size 9ft long, 5ft wide
Override Type Disc Brakes 50mm Axle with 185R14 Tyres with 5 stud rims
Heavy Duty Jack
Spare Tyre Included
45x8mm x 7 Leaf Springs
Led Lighting
Tare 590kg, ATM 1500kg Load Capacity 910kg
Engine: 13.5 HP Briggs & Stratton, 420cc
Fuel type: Regular petrol
Starter: Electric starter
Boom swing angle range: 360 degrees
Overloading height: max. 2144 mm
Dumping height: max. 1675 mm
Digging depth: max. 1456 mm
Reach: max. 2550 mm
Tractive performance: 0.9 t
Ripping force: approx. 550 kg
Load capacity (excavator arm fully extended): approx. 125 kg (dozer blade up)
Weight: approx. 590 kg
Shipping weight: approx. 600 kg
Width: 825 mm
Operational Specifications:
Complete set: incl. 20cm, 30cm & 60cm buckets, plus ripper and grapple
Electric starter: 12 Volt
Operating hours meter
Fuel tank capacity: 6.5 litres
Oil tank capacity: approx. 23 litres
Swivel radius: 360°
Hydraulic flow rate: approx. 17 litres per minute
Operating pressure: approx. 160 bar
Special Features:
Additional hydraulic remotes on excavator arm
High quality, robust construction
Easy operation
Transport via trailer or inside a van
Passes through standard doors (Width: 825 mm)
Various attachments included
Equipped with half hitch
Powerful hydraulic pump unit
Hydraulic dozer blade lowering
High digging and ripping force
All lubricating points easily accessible
Single Axle Galvanised Ozzi Trailer Product Specifications
Product Features:
Tilting plant trailer with built in ramps
Single axle
Fully galvanised steel
Perfect for mini loaders like Dingo or Kanga, Scissor Lifts, Mini Excavators or ATVs.
Technical Specifications:
100x50x5mm Square Tube Drawbar 1600mm in length.
70x50x3mm Chassis fully galvanised
8mm Mesh Deck
1700mm Long Ramps, adjustable to the centre for narrow machinery.
Deck Size 9ft long, 5ft wide
Override Type Disc Brakes 50mm Axle with 185R14 Tyres with 5 stud rims
Heavy Duty Jack
Spare Tyre Included
45x8mm x 7 Leaf Springs
Led Lighting
Tare 590kg, ATM 1500kg Load Capacity 910kg
