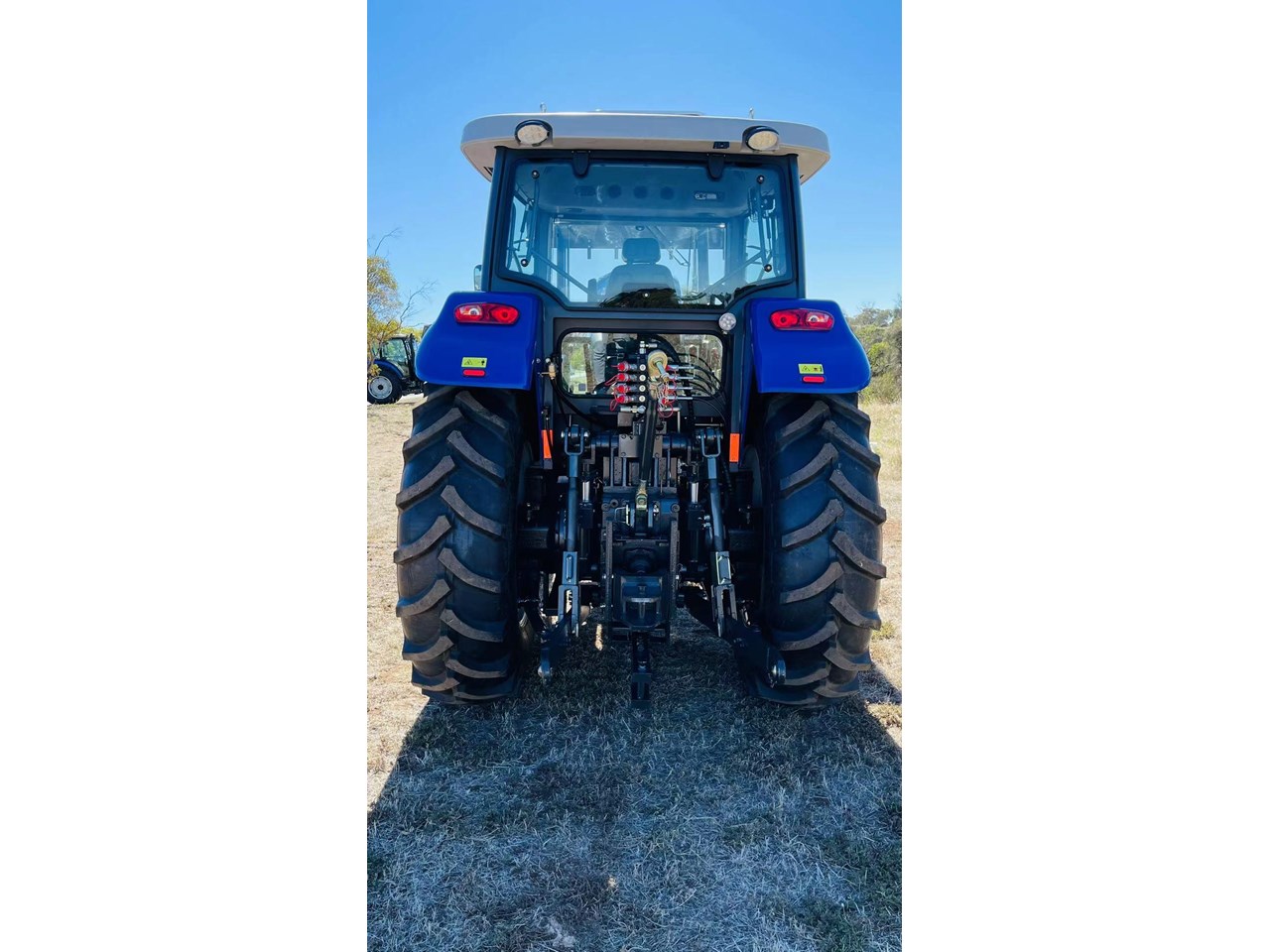

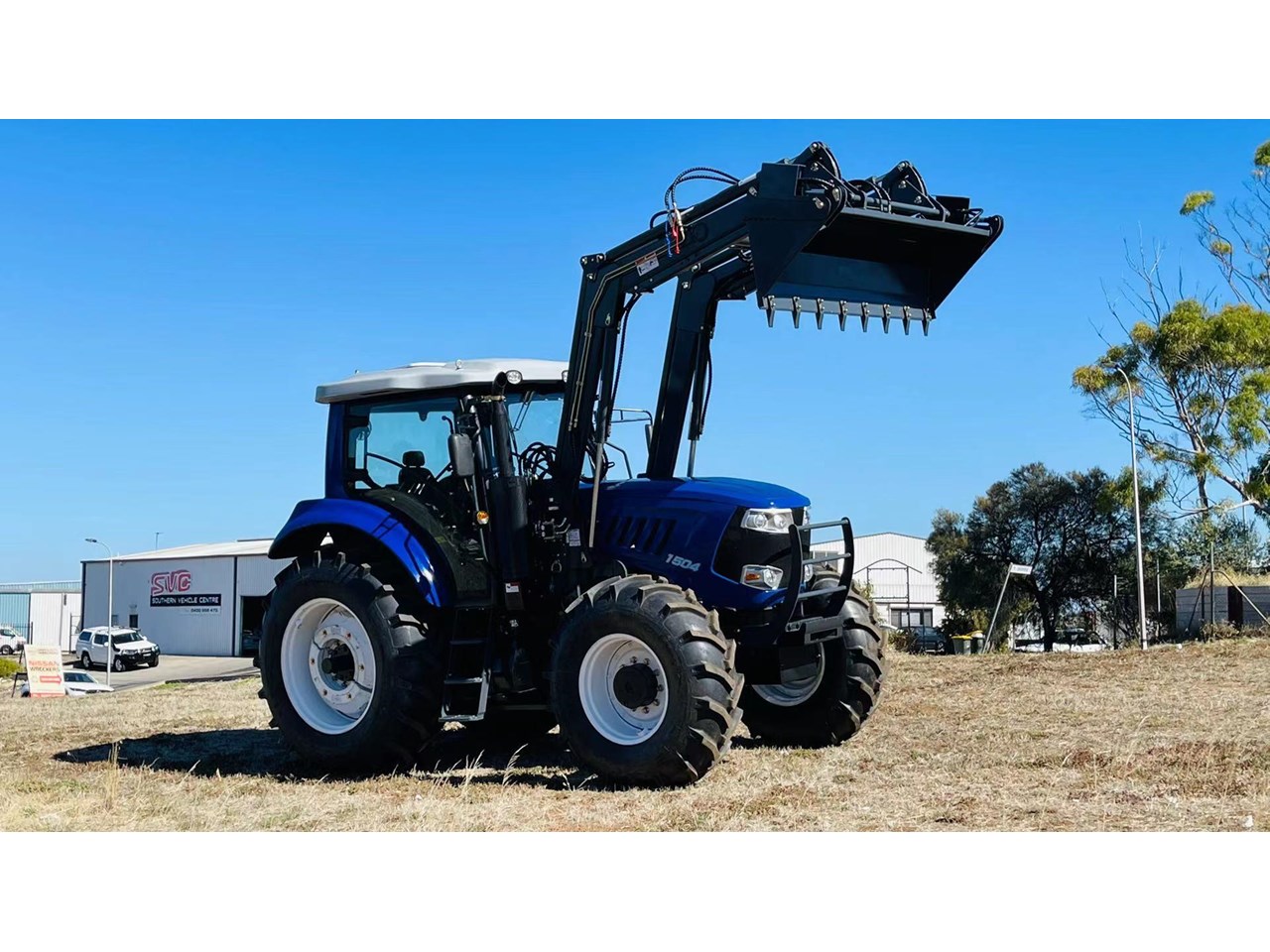

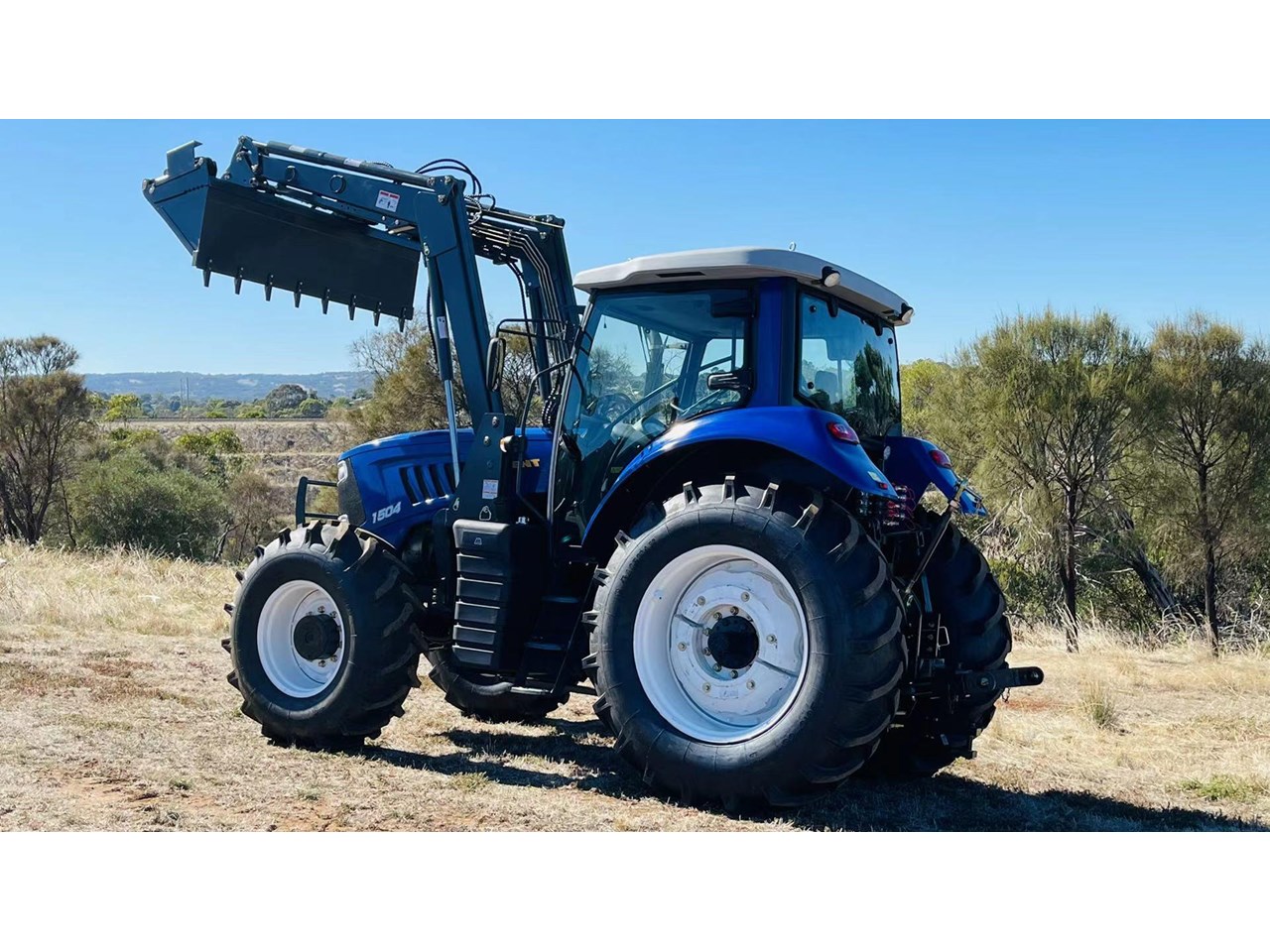

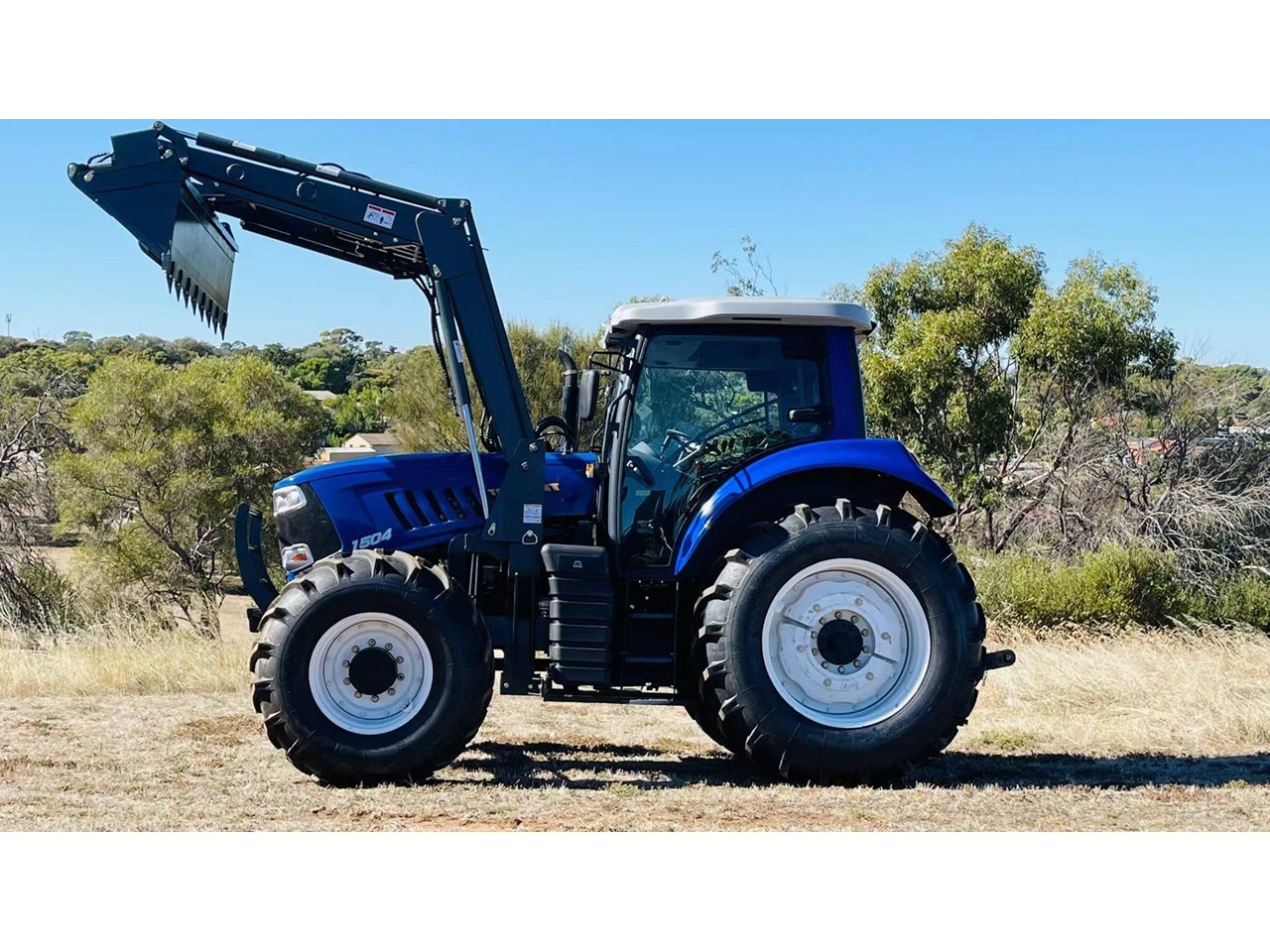

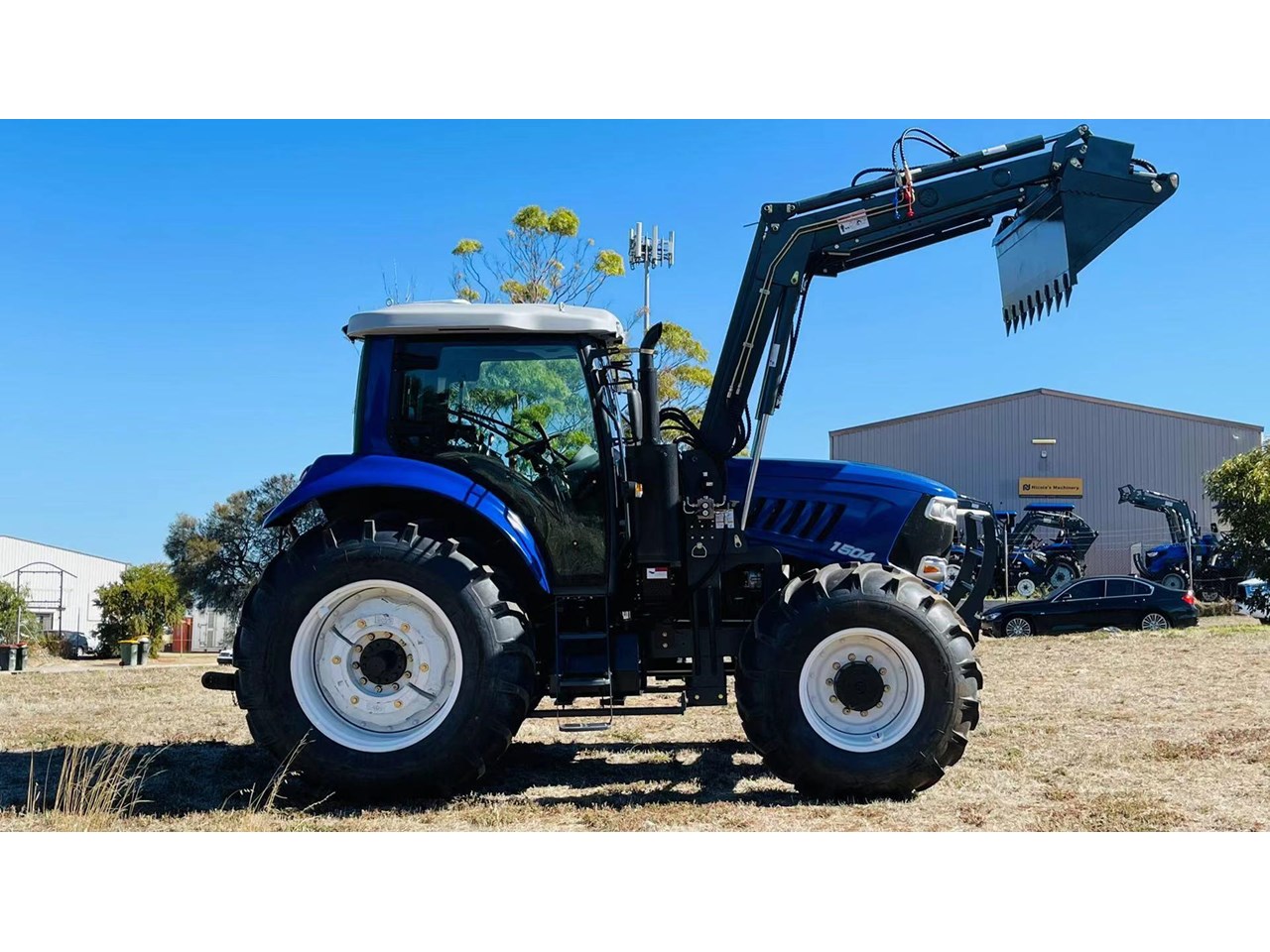

2021 TRIDENT 150HP TRACTOR WITH FEL 4IN1 BUCKET

TRIDENT 150HP TRACTOR WITH FEL&4IN1 BUCKET - SPECIFICATIONS

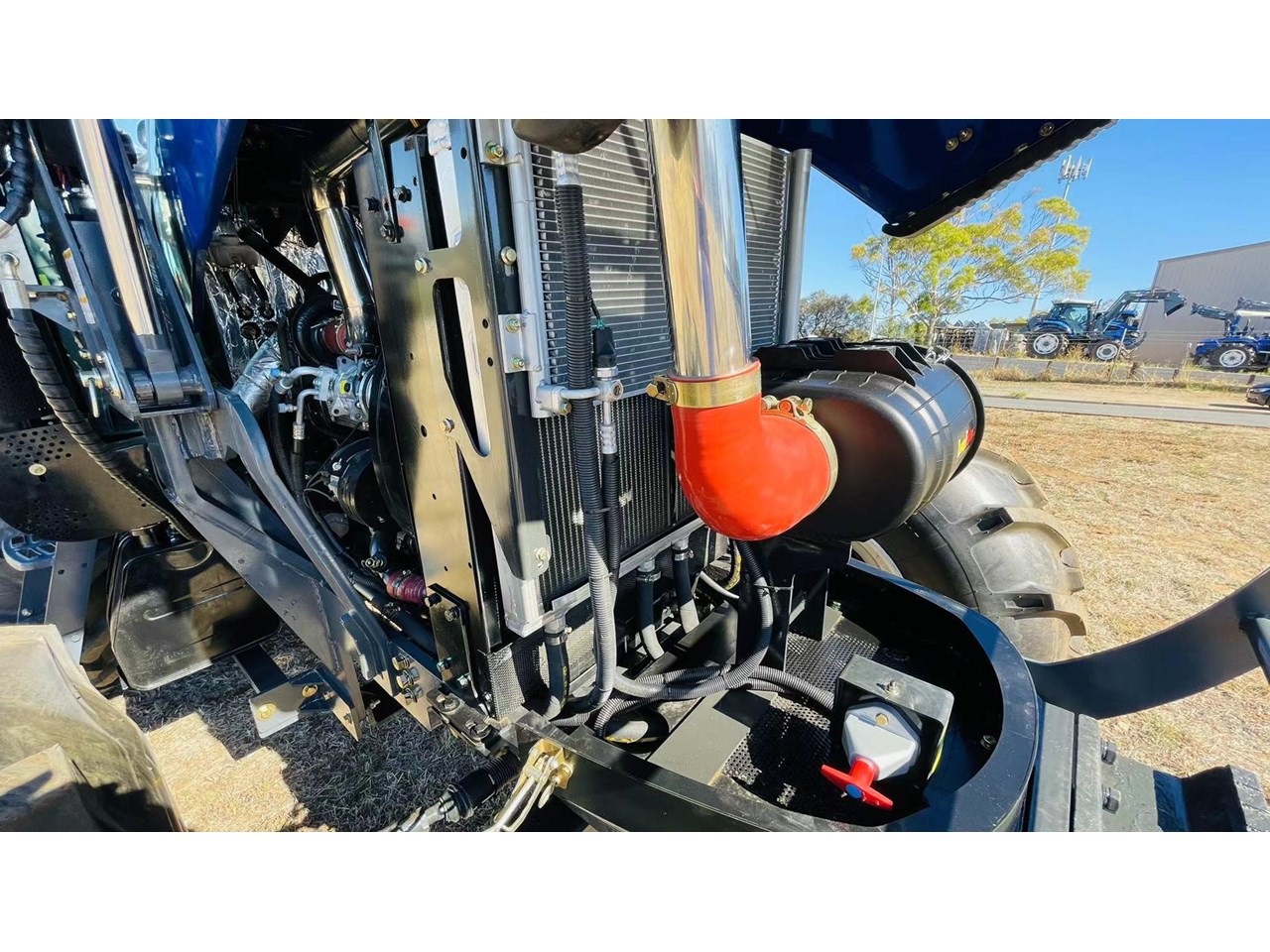

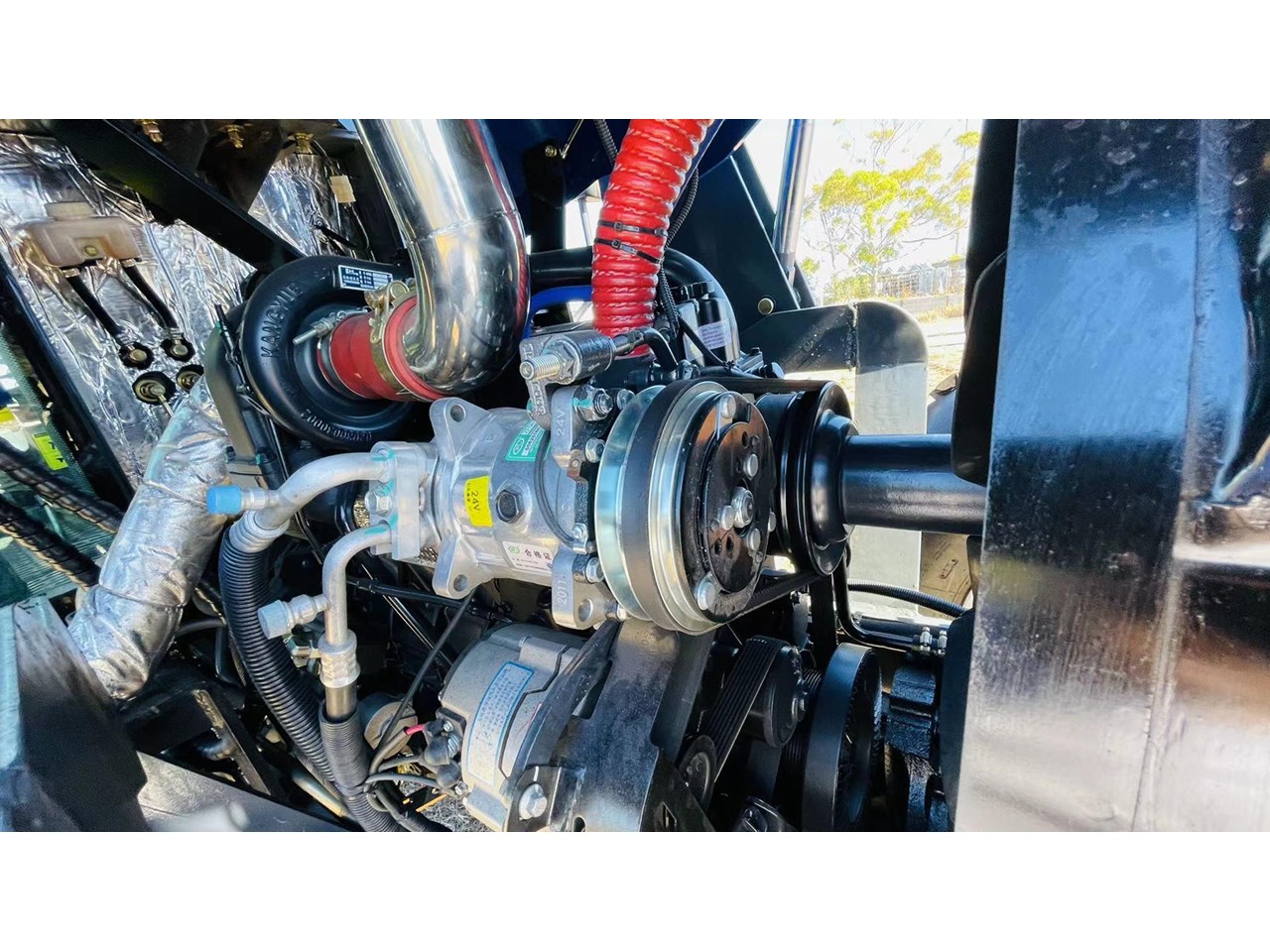

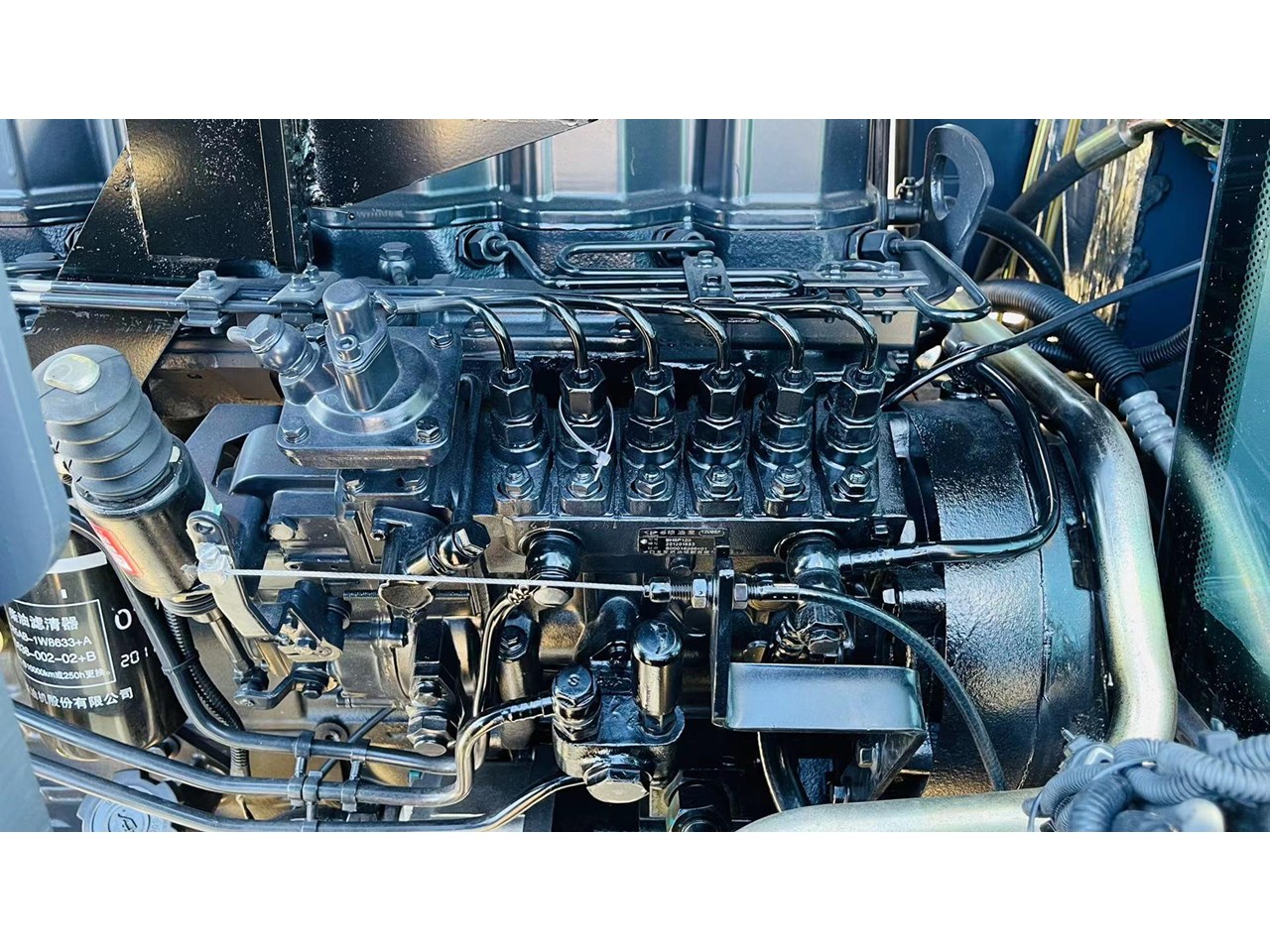

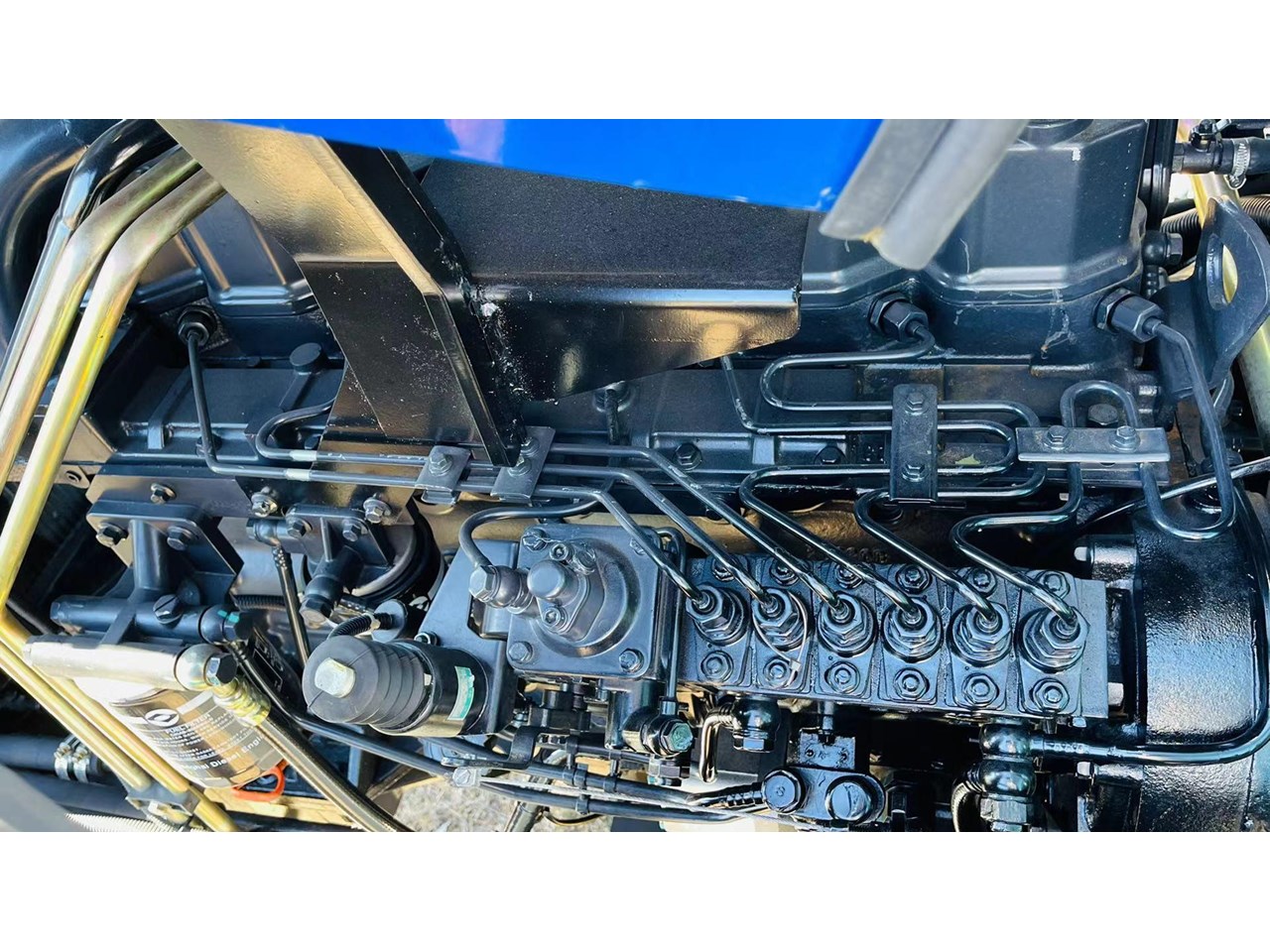

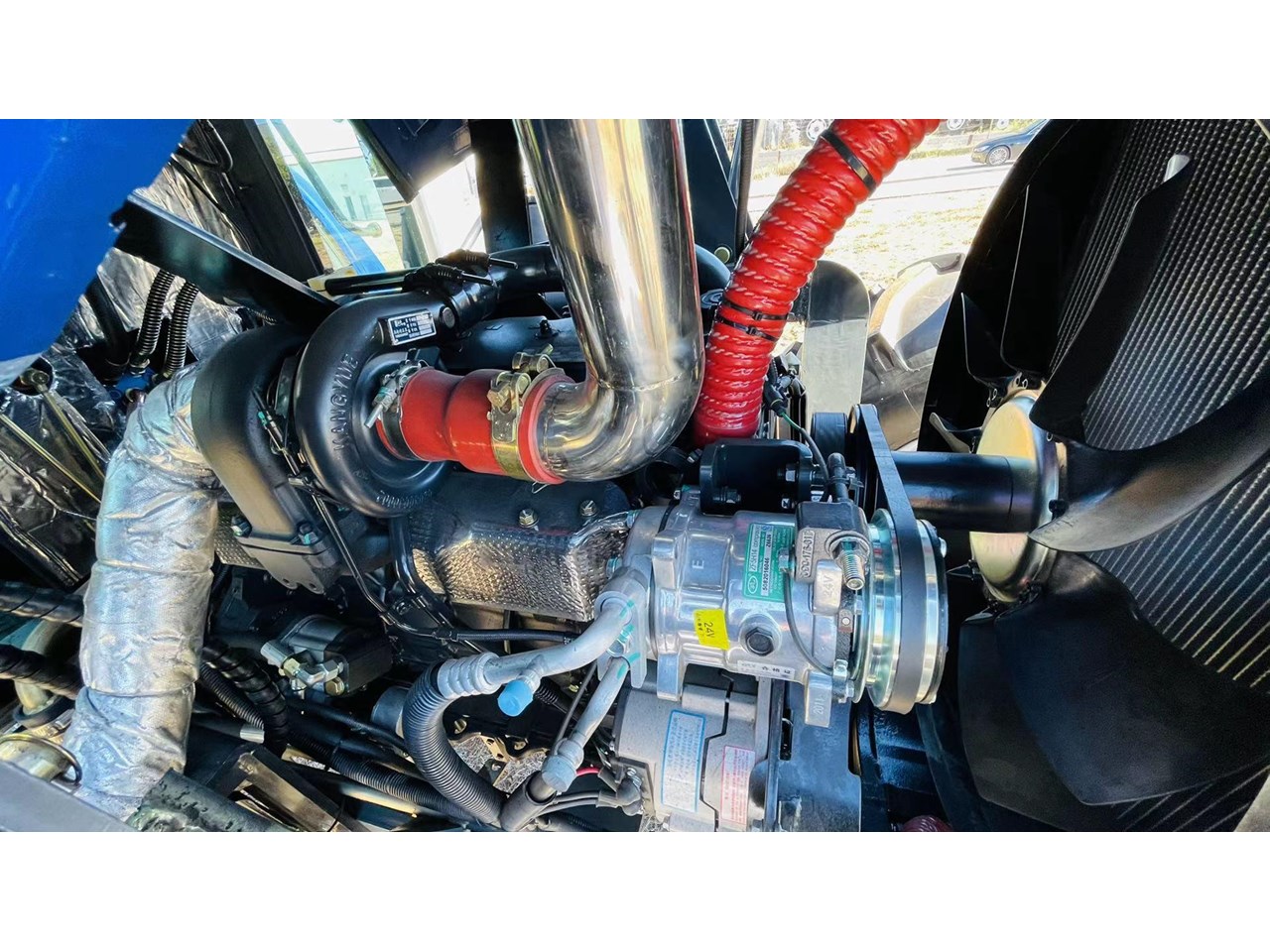

Engine

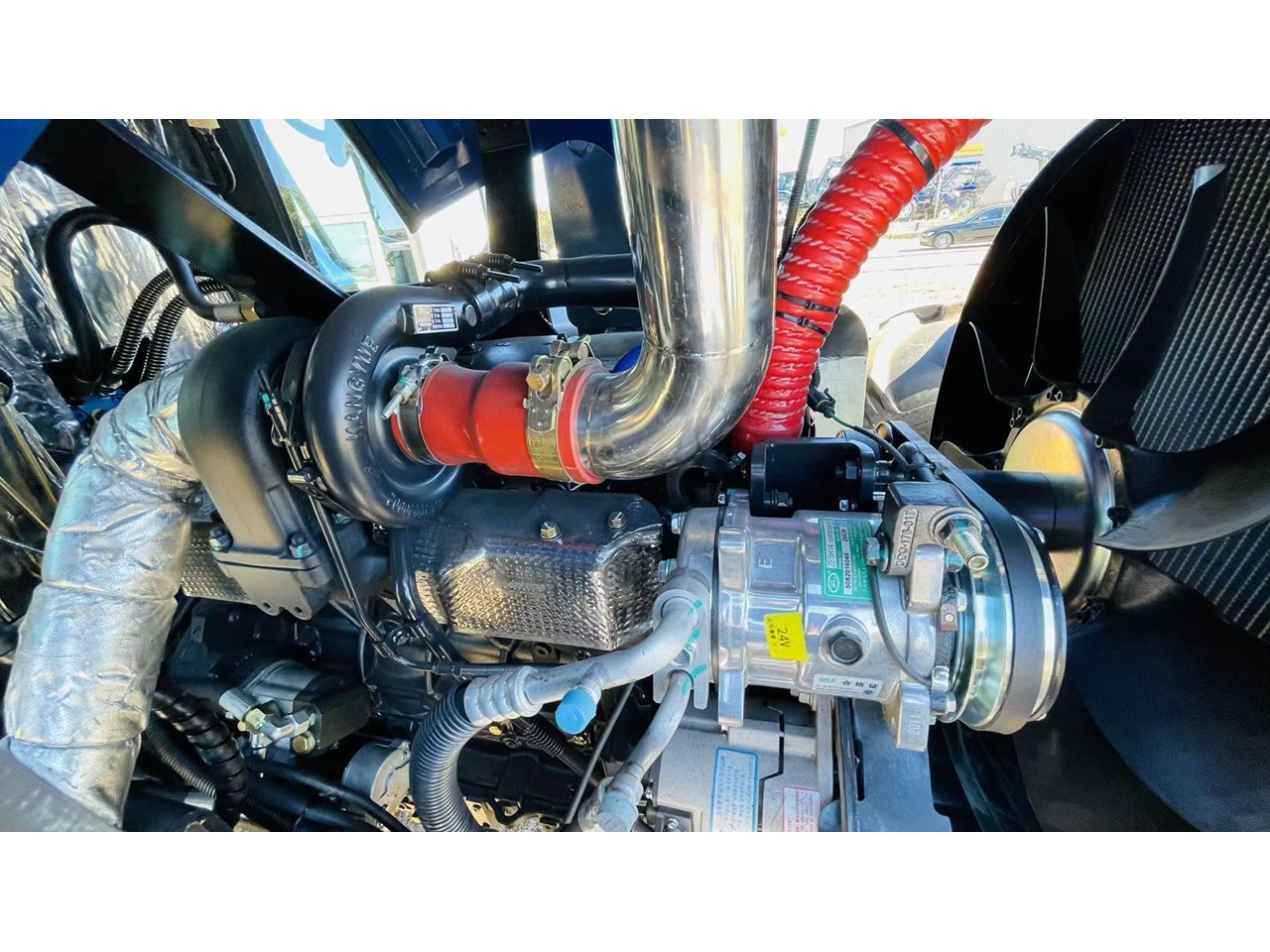

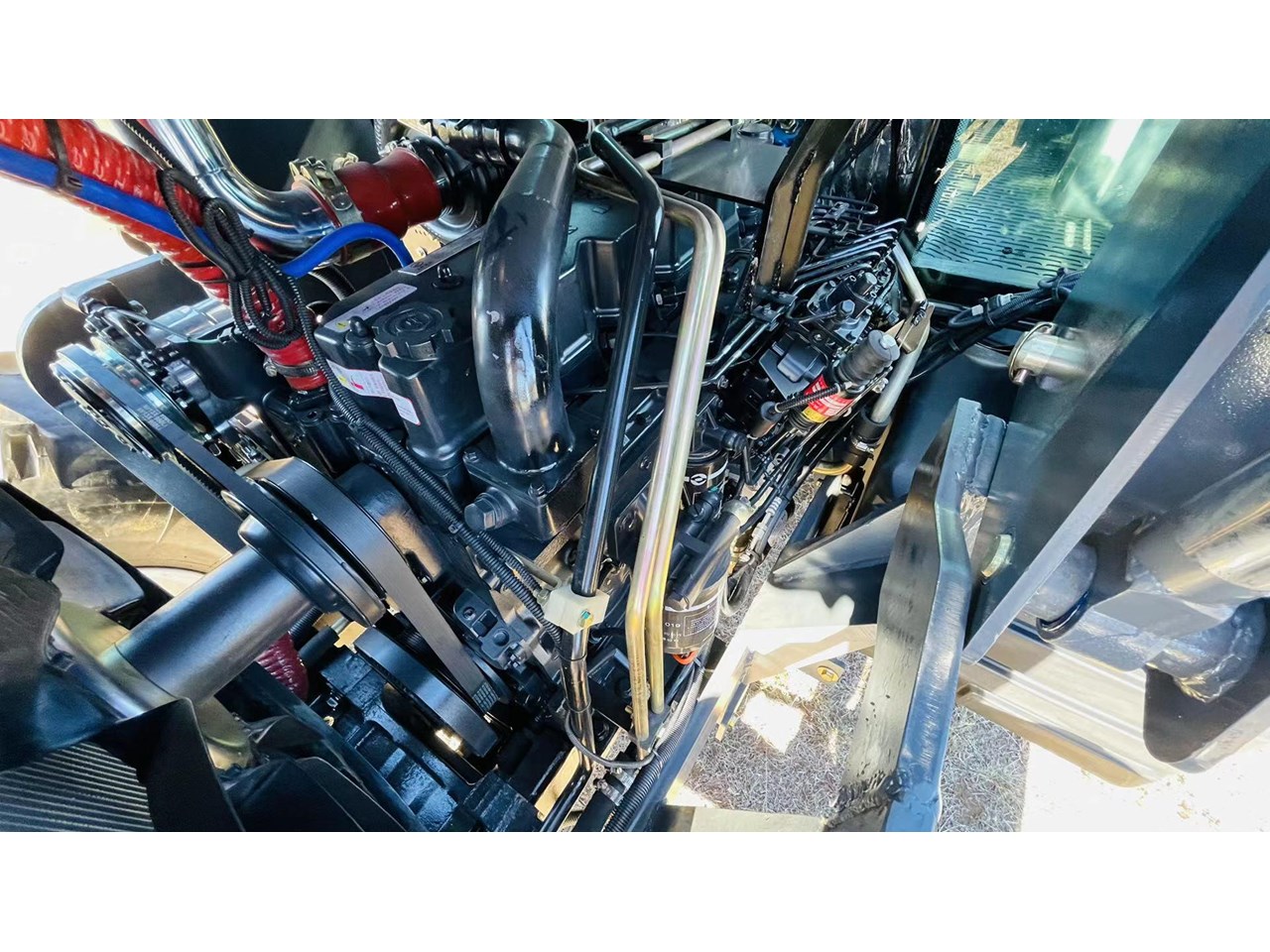

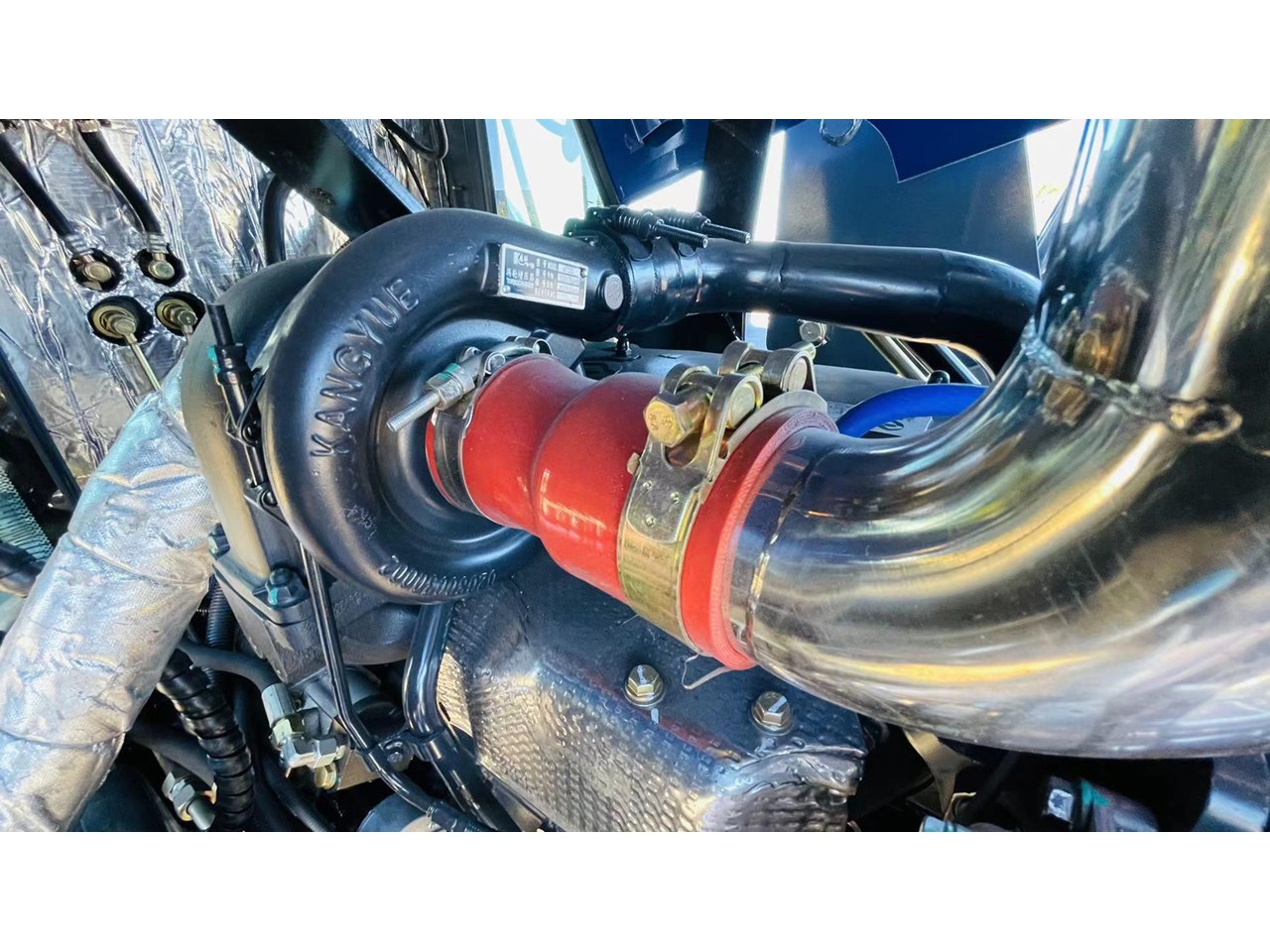

Engine: SDEC 4 Stroke, Direct fuel injected, Turbocharging diesel engine,
Vertical bore, 4 valves in each cylinder
Engine Displacement: 6.4L
Number of Cylinders: 6
Engine Orientation: Longitudinal
Rated Engine Power: 150 HP (110/2200 KW/RPM)

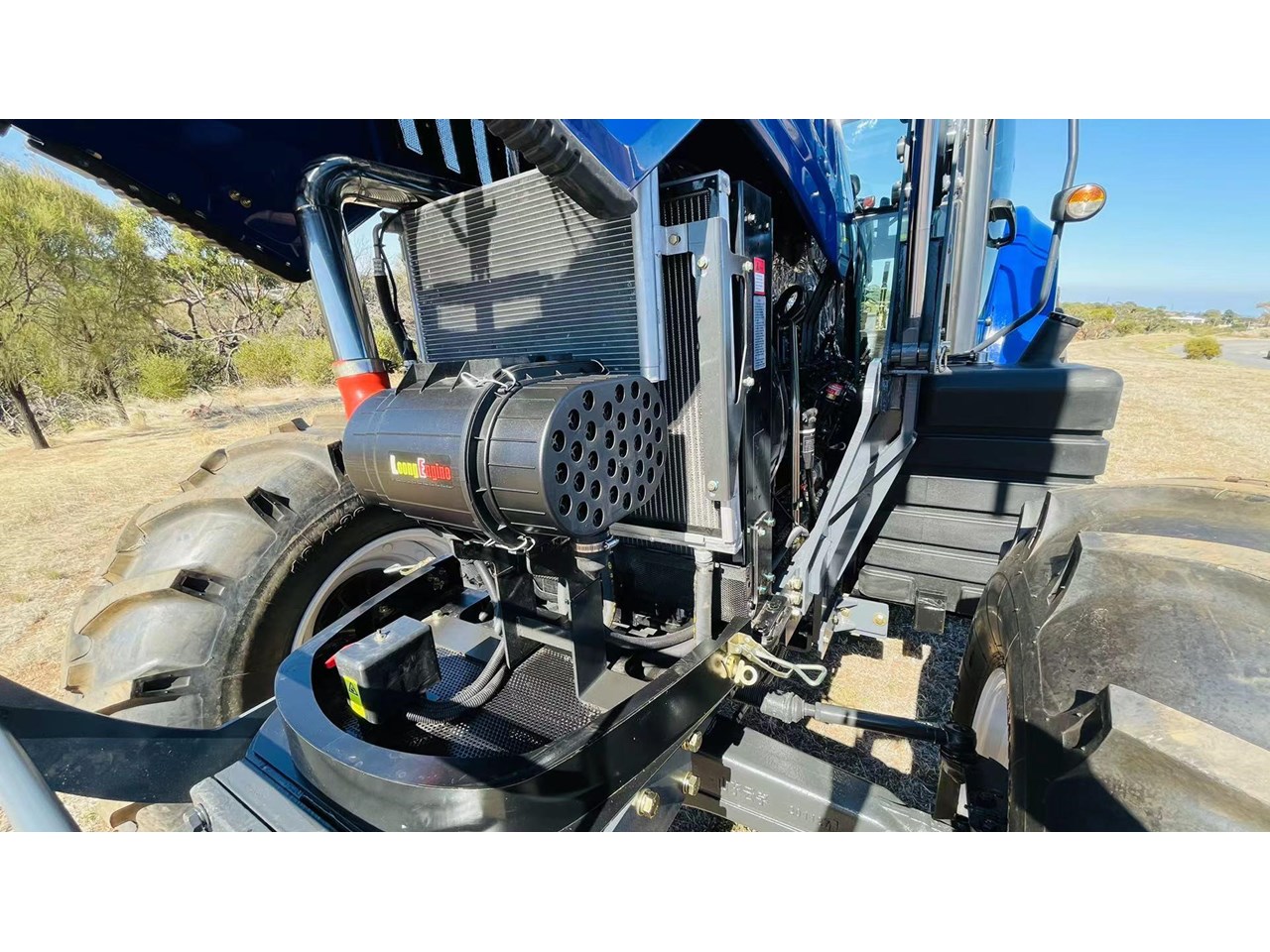

Air Filter Oil Bath
Top Nominal Speed: 35.81 Km/h
Fuel: Diesel
Fuel Tank Capacity: 380 Litres
Fuel Consumption: 200 g/kWh

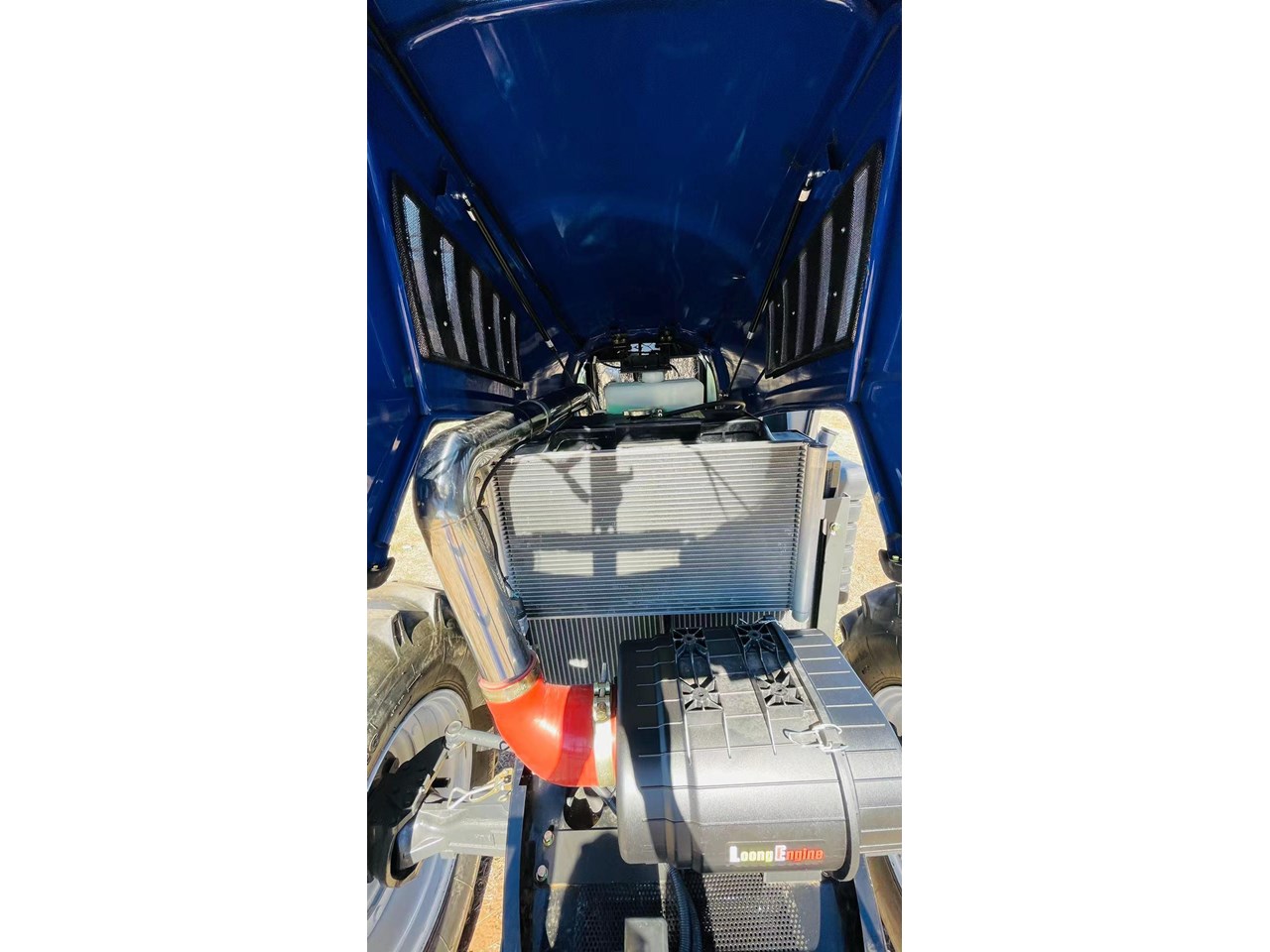

Cooling: Water Cooled
Transmission

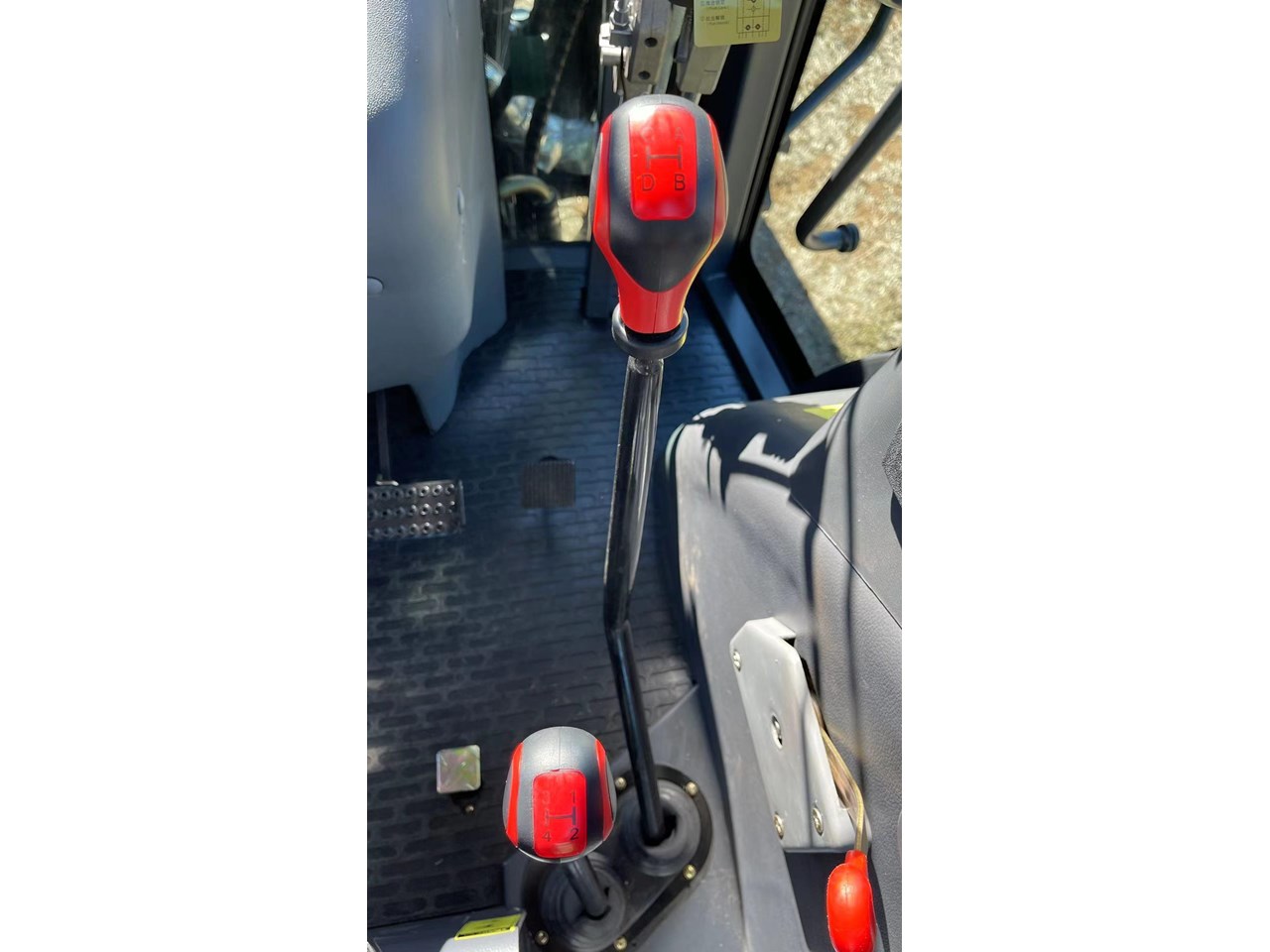

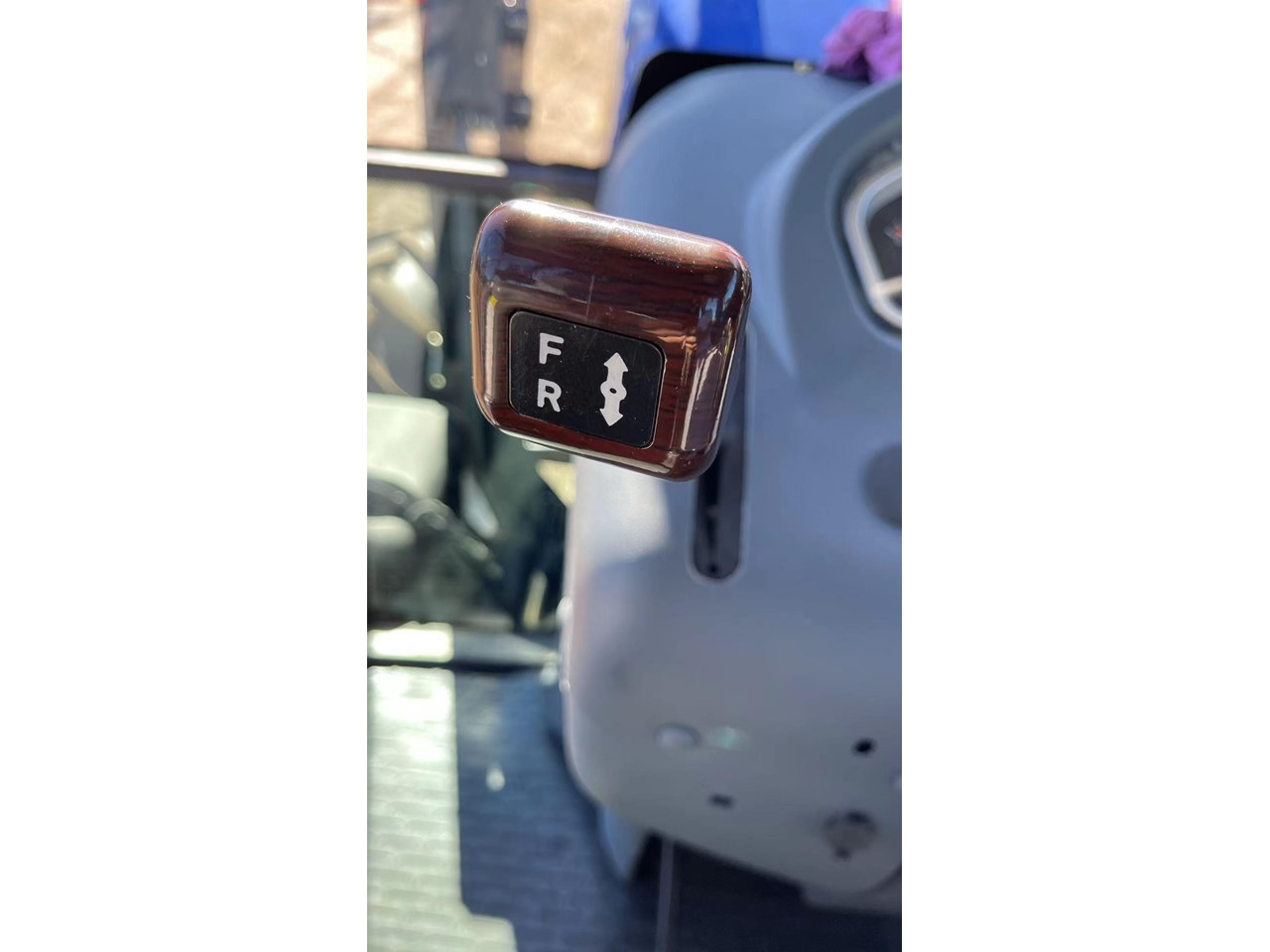

Transmission: 16F+16R Shuttle Shift
Clutch: 14inch Dual Functional Clutch with Metal Ceramic Friction Plate
Drive: Rear Wheel Drive with selectable 2WD / 4WD and Differential Lock
Differential: Closed, Planetary Reduction Bevel Gears
Differential Lock: Pin Type
Transfer Case: Helical Bevel Gears
Steering, Wheels & Brakes
Suspension: Front beam rocking axle.
Brakes: Oil-immersed Disc Hydraulic Brake System
Front Tyre Sizes: 18.4-26
Rear Tyre Sizes: 20.8-38
Available Tread Types: Agricultural Herringbone Tread Pattern
Steering: Hydraulic Steering with Independent Pump
Measurements & Weights
Tractor Weight: 7150 kg
Wheelbase: 2760 mm
Tractor Length: 5420 mm
Tractor Width: 2250 mm
Tractor Height: 3110 mm
Rear Track: 1850 mm (Adjustable)
Front Track: 1900 mm
Turning Circle 4.9 m
Ground Clearance: 530 mm
Rated Traction Force 35 KN
Miscellaneous
Colour: Blue
Power Take-Off: Spline: F35 Square, 6 teeth, Clockwise rotation Dual Speed: 540/
1000 RPM

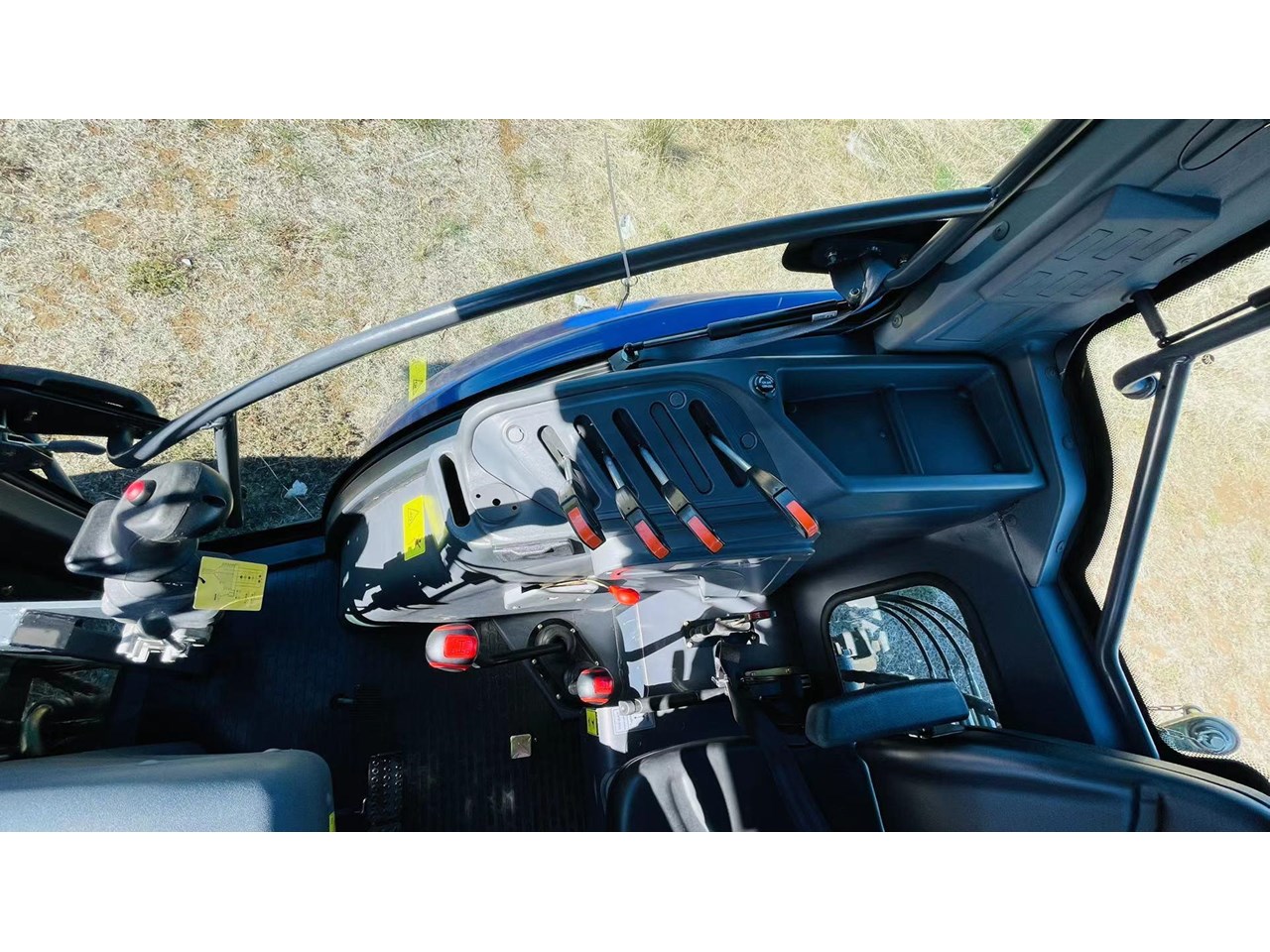

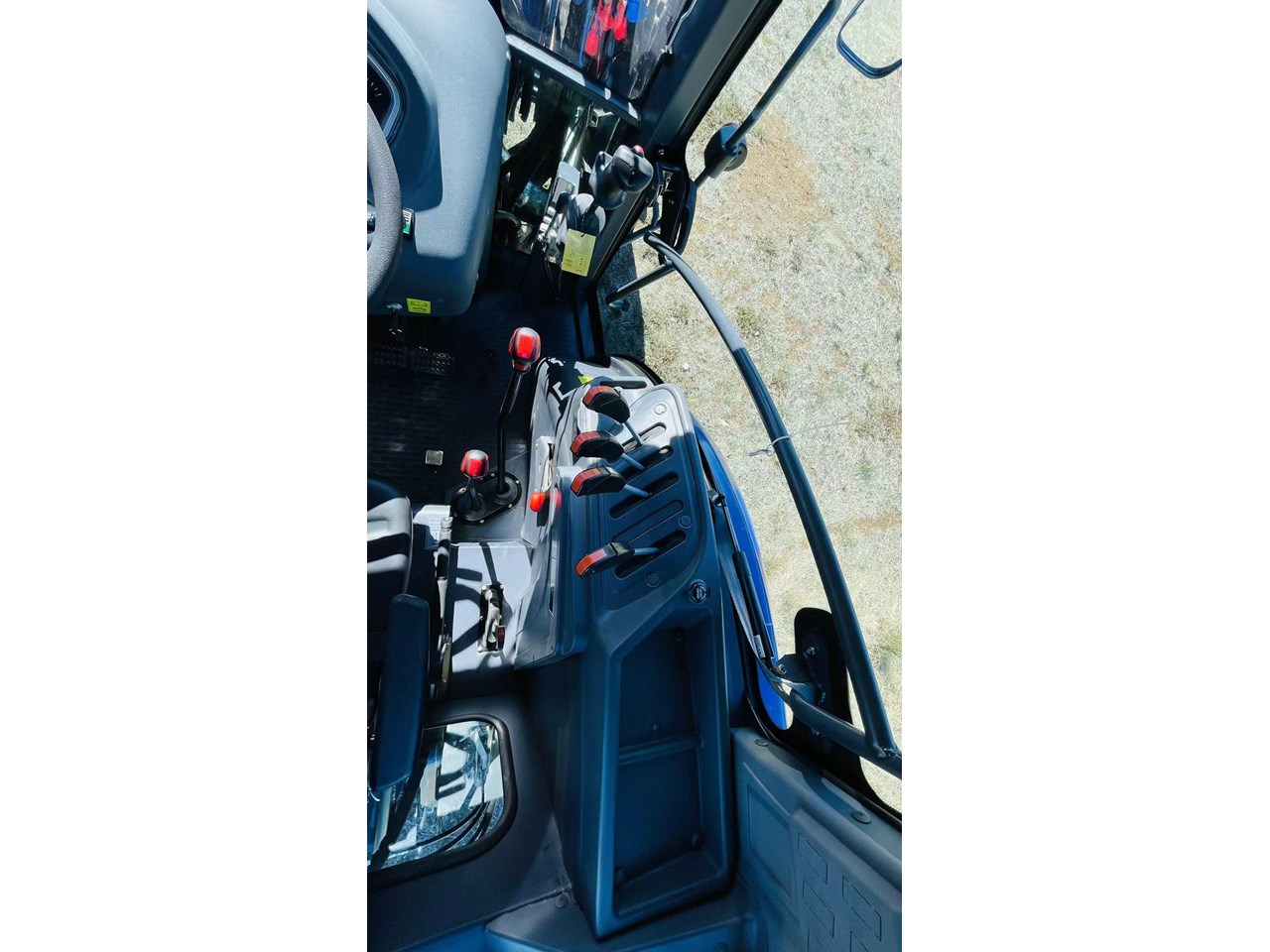

Remotes: Multi-valve 4 way remote hydraulics
Hydraulic Output Flow: 90l/min.
3-Point Linkage: Category 3, Hydraulic, 28Kn Lifting Capacity
Starting: Electric
Electrical: 24 V

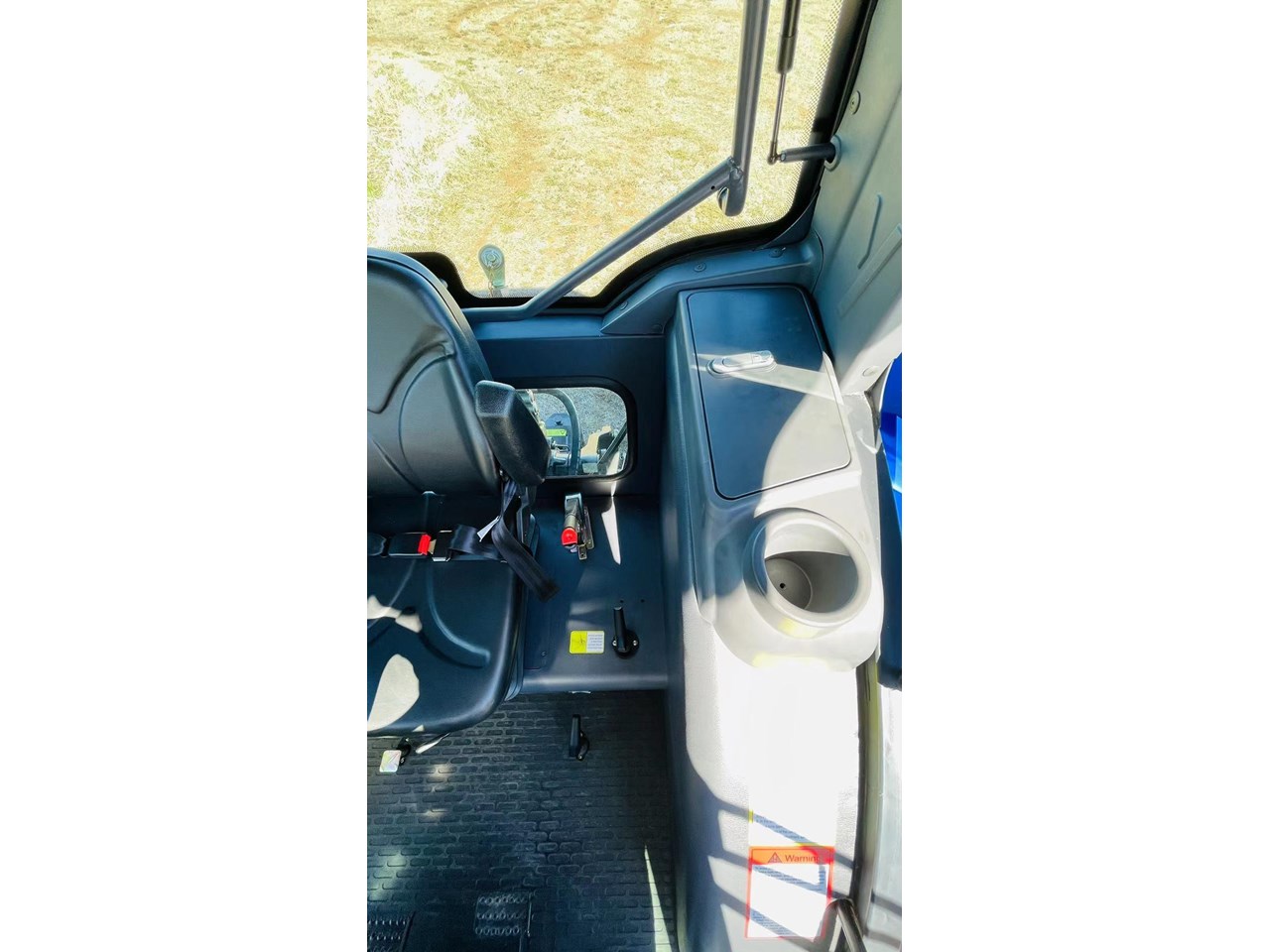

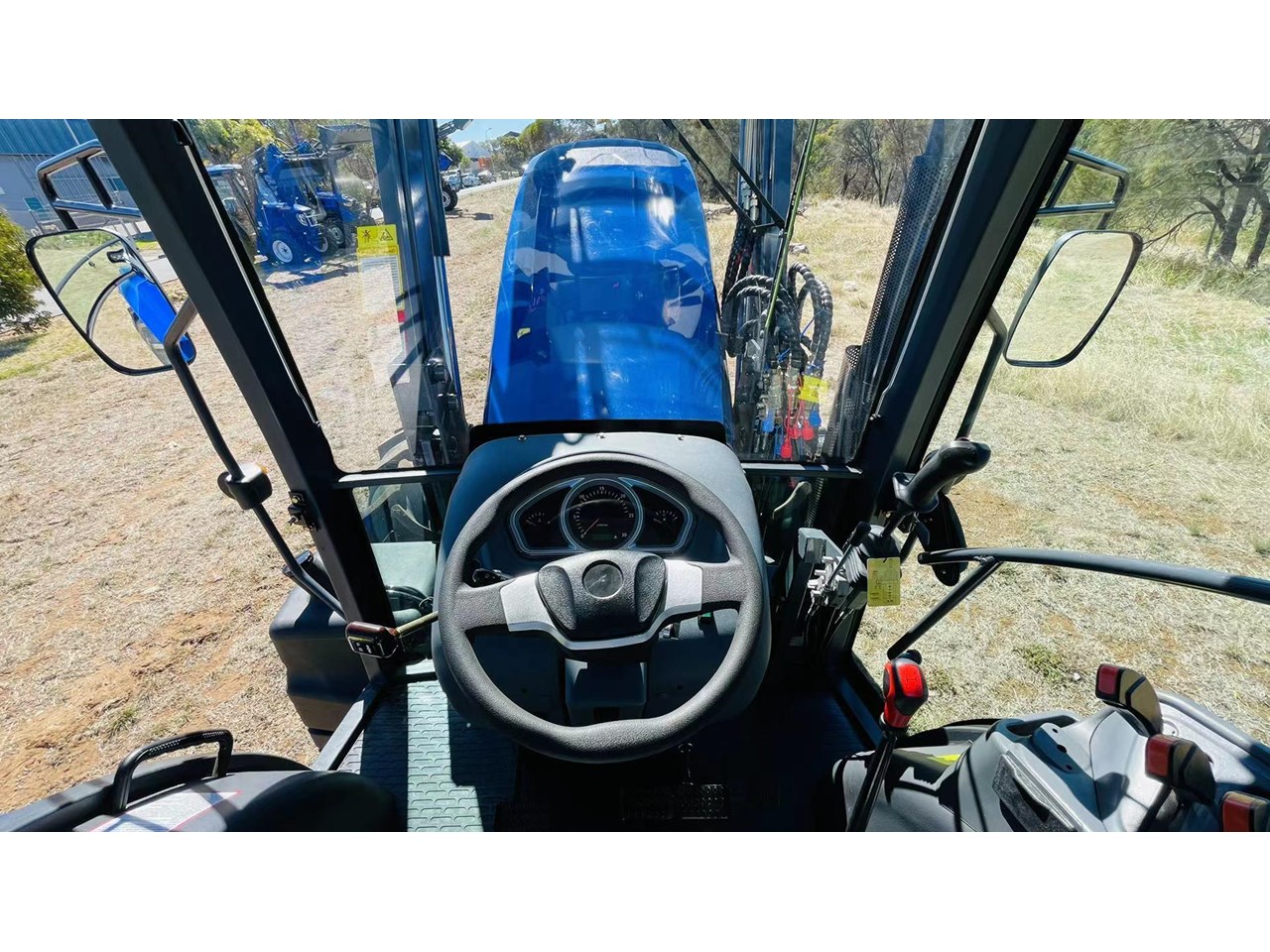

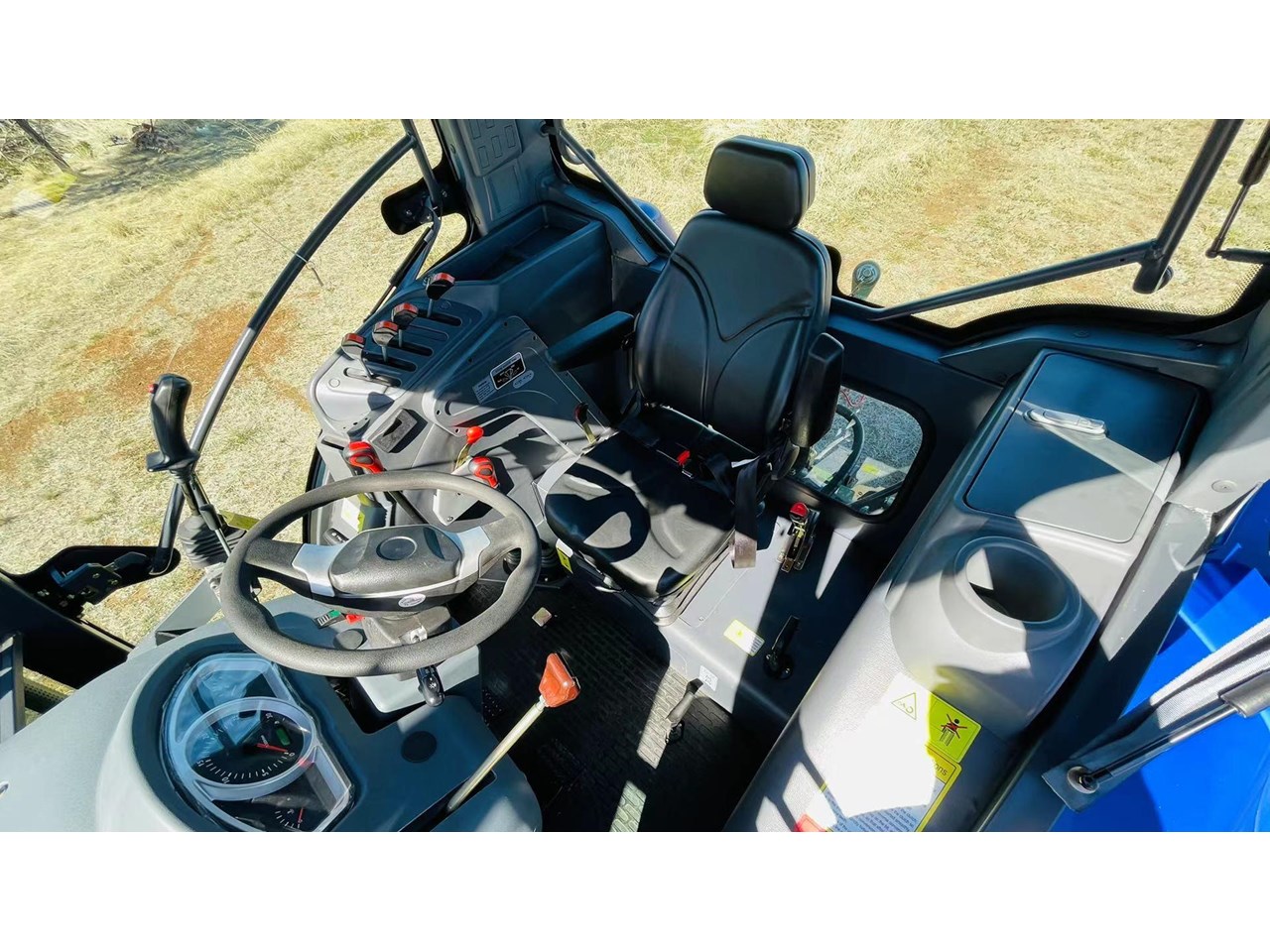

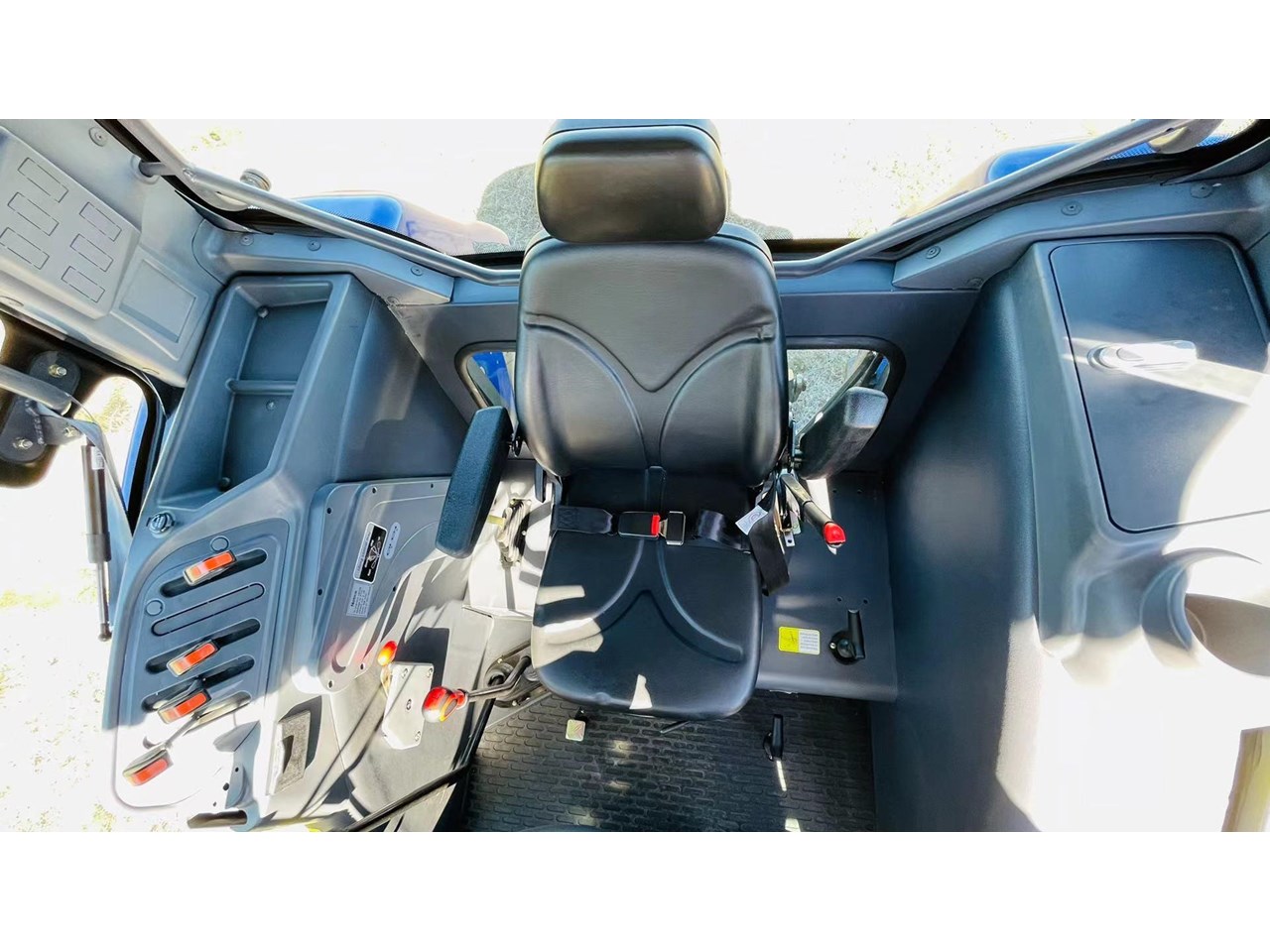

Seat: Adjustable suspension seat with seatbelt

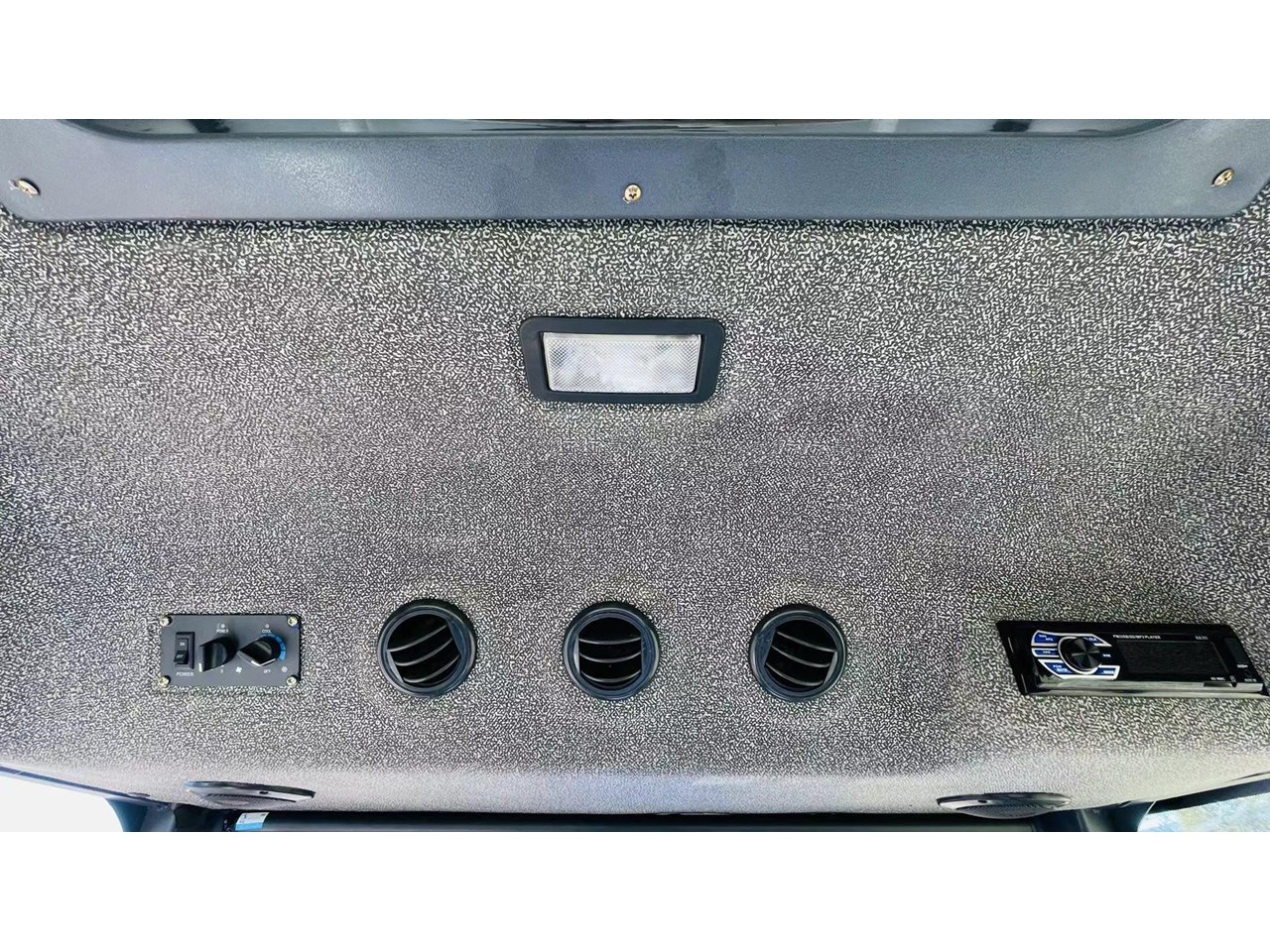

Standard Extras: Steel Bonnet with pneumatic ram, Agricultural Tyres, Tow bar, Cabin
with A/C & Heater, Flat Deck, Italy Faster brand quick coupler ½

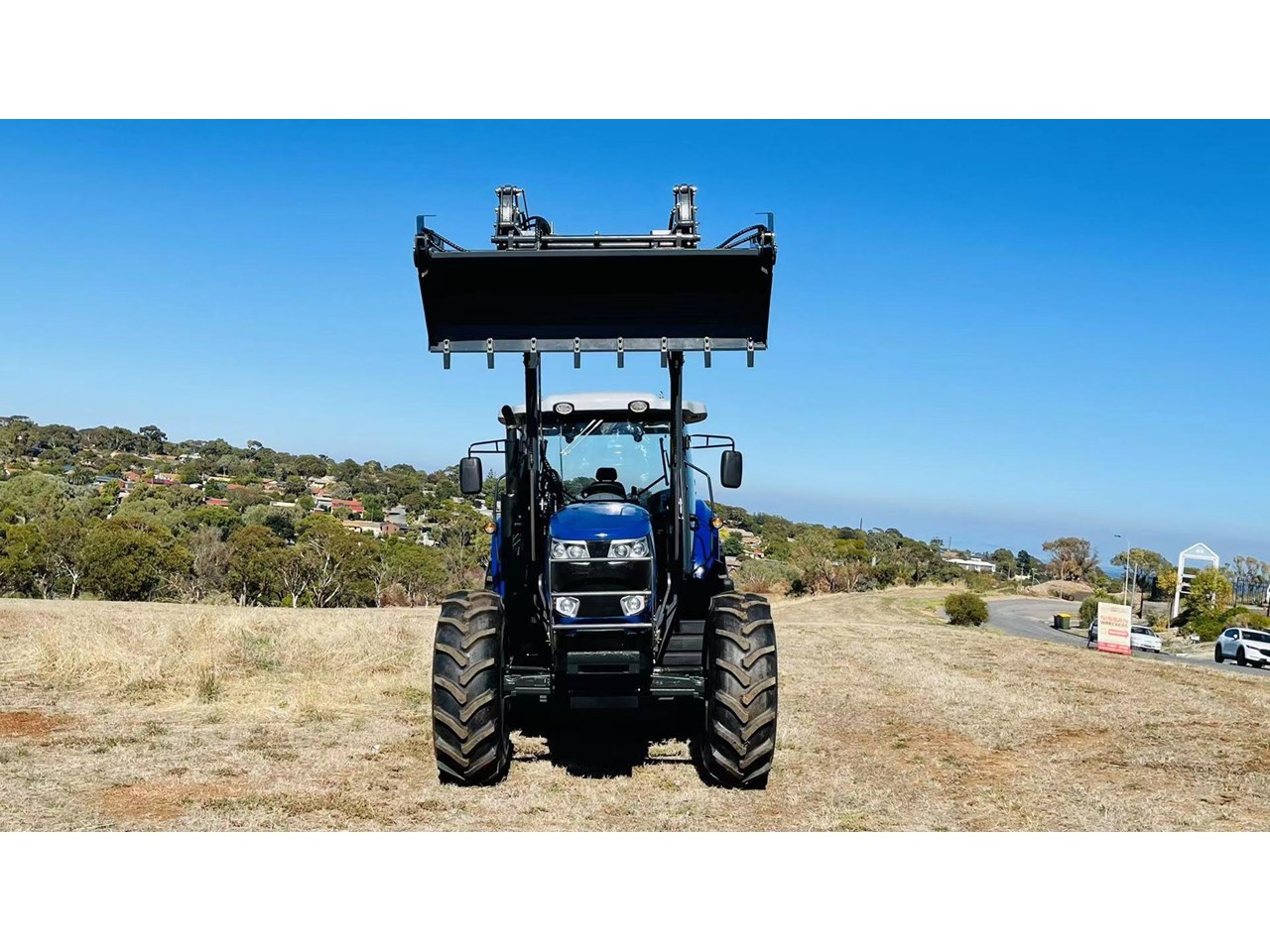

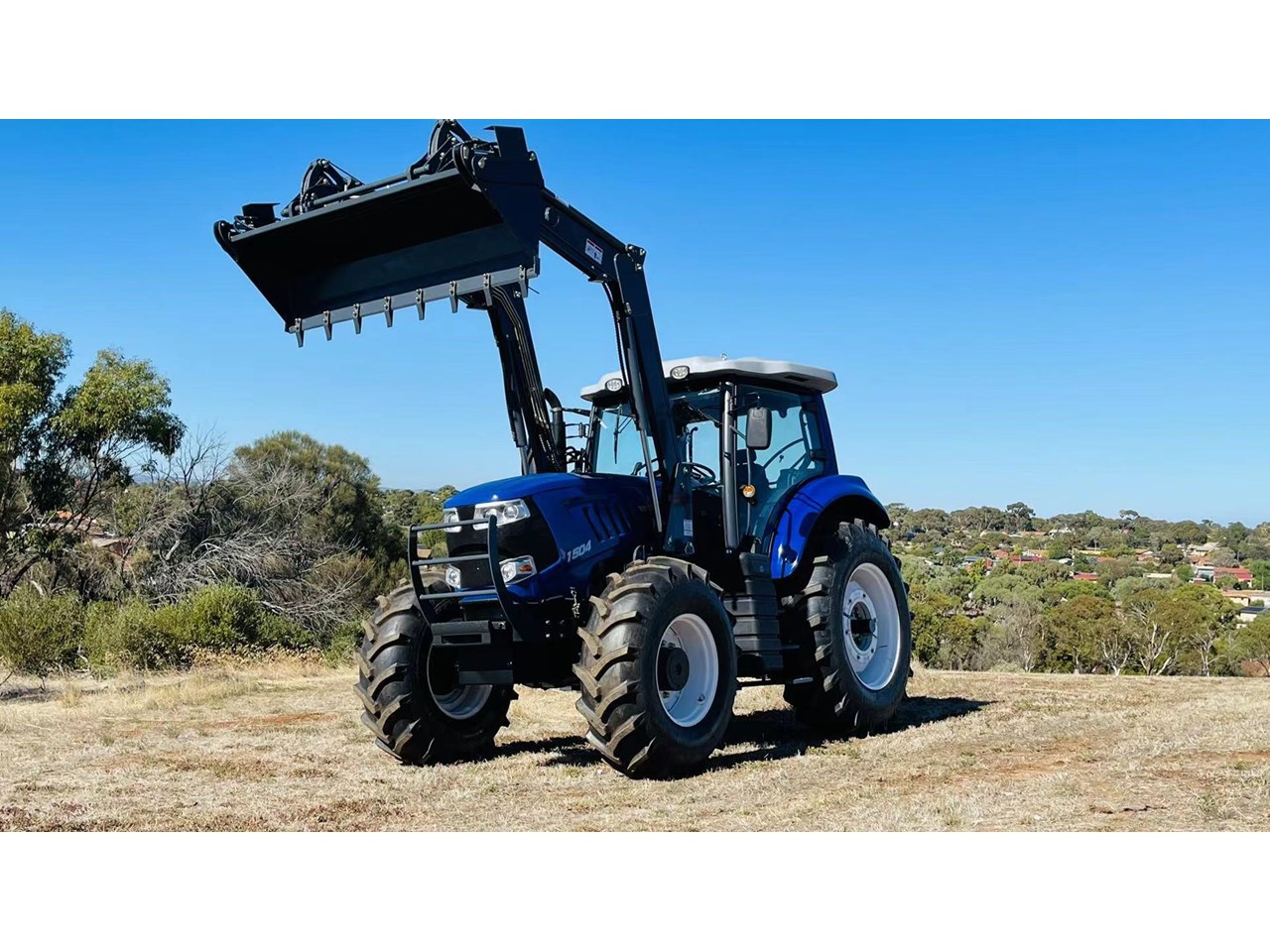

Front End Loader
Loader Model: TZ12D
Rated Load Capacity: 1200Kg
Cubic Capacity: 0.72m3
Opening Angle: 60°
Bucket Width: 2000mm
Bucket Depth: 800mm
Bucket Height: 450mm
Maximum Lift Height (at Pivot Pin): 3970mm
Max. Digging Depth: 200mm
Maximum Dump Reach: 1,200mm
Dumping Angle: 54°
No. of Teeth: 6
Self Levelling Bucket: Yes
Quick Release Bucket: Yes
Quick Release Loader: Yes
