NEW HOLLAND ROUND BALER DELIVERS INCREASED CAPACITY

Presented by

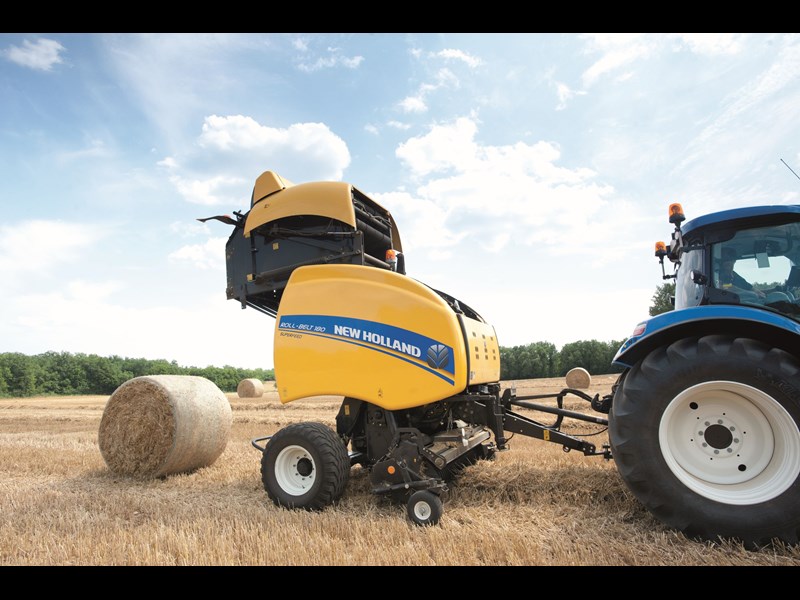

RBV 180 SuperFeed 13 039 elr RBV 180 SuperFeed 13 039 elr

New Holland claims its all-new Roll-Belt variable chamber round baler delivers capacity increases of up to 20 per cent when compared with the previous BR7000 series.

Available in 1.5 and 1.8m maximum bale diameters, the baler enables operators to specify the baler that suits their needs, the company says.

Plus the standard rotor SuperFeed and professional CropCutter variants enable tailored baling, according to Tony Peters, Product Manager for New Holland.

"The all-new pick-up, dual density system and endless belt design will deliver significant productivity gains," he adds.

PICK-UP & FEEDER DELIVER HIGHER CAPACITY

New Holland says the pick-up has been completely redesigned to boost capacity by up to 20 per cent in silage.

The standard heavy-duty, five solid tine bar pick-up with reinforced rubber tines, which are 10 per cent stiffer laterally and last five times longer, will maintain pick-up performance in difficult, uneven and stony terrain, the company claims.

The new feed assist roll transfers the crop from the pick-up to the rotor whilst simultaneously merging the flow of the crop to ensure that it matches the exact width of the bale chamber.

CUSTOMISED FEEDING OPTIONS

To improve baling flexibility owners can choose the SuperFeed standard rotor with New Holland’s renowned ‘W’ pattern fingers. The company says the 55mm diameter rotor maintains high throughput of all crops.

The CropCutter model delivers the densest bales, with 15 integrated knives which guarantee the ultimate in fine chopping performance.

DROP FLOOR TECHNOLOGY

During tight baling windows, stopping to unblock clogged balers wastes valuable baling time.

After extensive consultation with farmers, New Holland has introduced ‘Drop Floor’ functionality.

Operated from the comfort of the cab, when large wedges of crop block the rotor, the floor is simply lowered to provide additional space in the feeding zone, and baling can continue.

NEVER ENDING SUPER WIDE BELTS

The Roll-Belt baler features four 273mm wide belts which prevent costly losses as well as improving tracking performance.

New Holland says the increased belt stability ensures a large contact area with the crop to improve both reliability and bale formation.

Constructed using ultra-modern endless belt technology, these belts are much stronger as there are no joints. This eliminates stretching for uniform bale formation.

Furthermore, the belts’ texture has been engineered by design to assist cleaning and to prevent clogged belts for efficient bale formation.

DUAL HYDRAULIC DENSITY SYSTEM

New Holland claims the addition of a second hydraulic density cylinder has increased bale density by up to 5 per cent when compared to the BR7000.

The system, which has a density cylinder on either side of the chamber, provides improved density control, which is ideal for all operations, as uniformly denser bales improve the fermentation profile for more nutritious crops and storability.

NET AND TWINE WRAPPING

CropCutter models are standard with net-only wrapping, while SuperFeed models are standard with the choice of net and twine combination system to match their individual needs.

The twine placement system has been redesigned and now uses an improved centre pivot dual twine tube to maintain a consistent wrap pattern to maintain bale shape, even during extensive handling.

The duckbill net wrapping system is now closer to the actual bale, which means it takes even less time to provide full wrap coverage, thus enabling operations to get back baling even more quickly.

New Holland estimates that up to two rolls of additional net can be stored on CropCutter models, with a convenient storage area to the rear of the baler, and the second roll can be stored above the active roll.

The industry-leading duckbill net wrapping system now only requires limited power from the in-cab connection, making connecting it to the tractor even simpler.

ISOBUS COMPATIBILITY

The Roll-Belt baler is fully ISOBUS compatible for single monitor control. This means owners use the IntelliView III colour touchscreen or even use the existing ISOBUS compatible monitor in their tractor.

The state-of-the-art IntelliView III colour touchscreen delivers fingertip baler management, and its larger display makes setting up the baler even easier.

DISTINCTIVE STYLING

Operator safety was at the heart of the Roll-Belt balers’ design, New Holland says.

The distinctive single-piece, self-supporting side shields open wide to facilitate maintenance, and they can only be opened using a specific tool to prevent accidental opening during working.

The electric power safety cut of switch, located on the drawbar, enables operators to cut the power to the baler, to ensure it is fully deactivated. This enhances safety when changing the net or maintenance.

FLOATATION TYRES

The Roll-Belt baler is specified with wide 480/45-17 10 ply tyres, which ensure an infield footprint to reduced compaction when baling silage, essential to protect valuable shoots to facilitate regrowth for subsequent cuts.

During high-speed road transport, these tyres absorb bumps to deliver a smoother, more comfortable ride and prevent potentially dangerous bouncing.

SPECS

MODEL: Roll-Belt 150

BALE HEIGHT (MINIMUM-MAXIMUM [M]): 0.90 - 1.5

BALE WIDTH (M): 1.2

MINIMUM PTO HORSEPOWER REQUIRED (HP): 70



MODEL: Roll-Belt 180

BALE HEIGHT (MINIMUM-MAXIMUM [M]): 0.90 - 1.8

BALE WIDTH (M): 1.2

MINIMUM PTO HORSEPOWER REQUIRED (HP): 80
