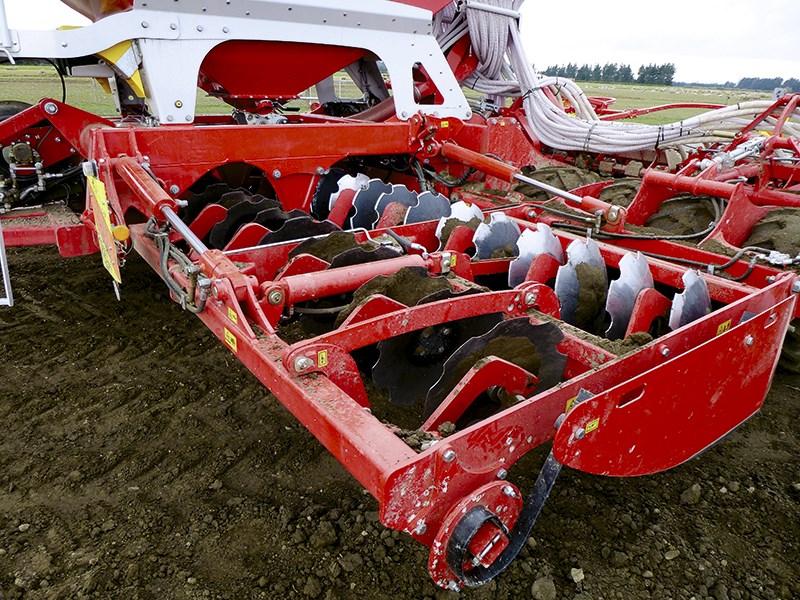

Pottinger Terrasem C6 seed drill 3 Two rows of 510mm diameter scalloped discs at the front of the drill are adjustable from the cab and work at opposing angles to cultivate the soil Pottinger Terrasem C6 seed drill 3
Pottinger Terrasem C6 seed drill 4 A computer-controlled electronic metering system uses a ground speed radar to acurately measure seed out in to the main tube to the distribution head Pottinger Terrasem C6 seed drill 4
Pottinger Terrasem C6 seed drill 5 A large rectangular hopper has a 3000L capacity Pottinger Terrasem C6 seed drill 5

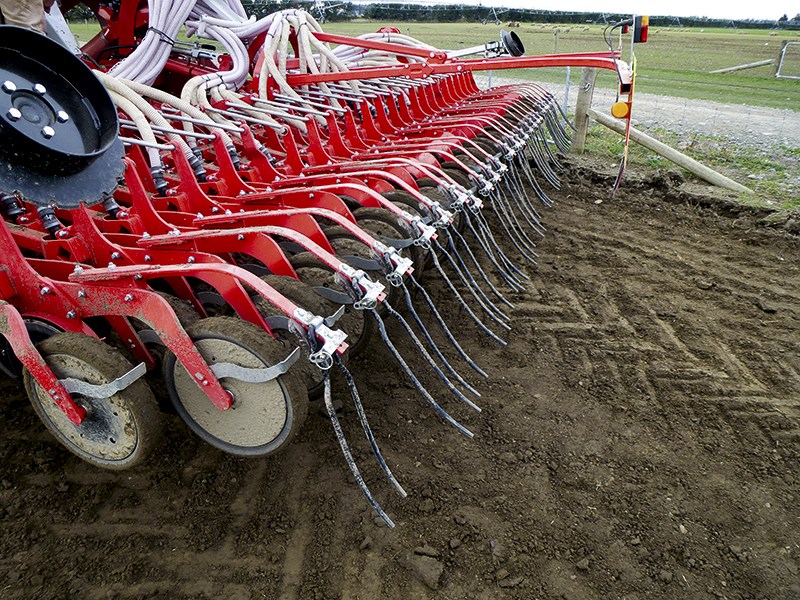

Pottinger Terrasem C6 seed drill 6 Press wheels following the coulters and tine harrows are used to cover and consolidate the seed furrow Pottinger Terrasem C6 seed drill 6

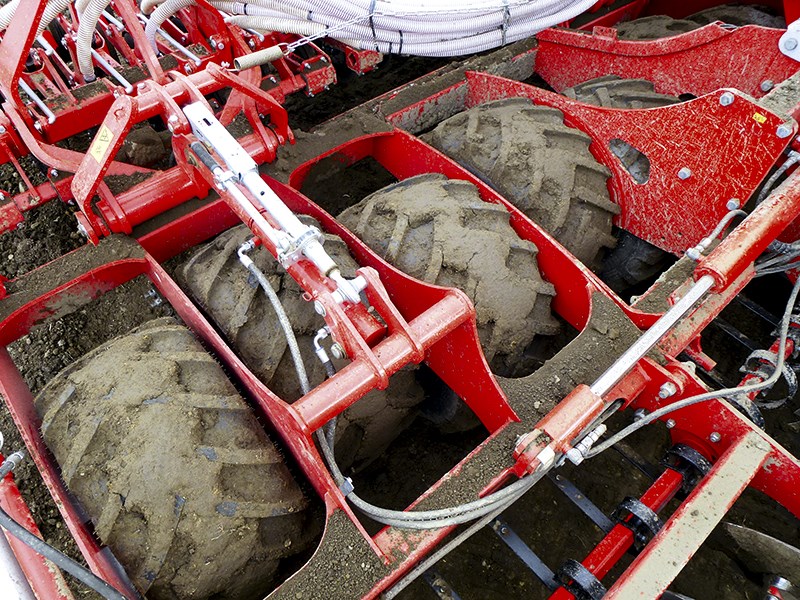

Pottinger Terrasem C6 seed drill 7 The twelve-wide 425/55 R17 tyres across the width of the drill firm up the seedbed before the coulters Pottinger Terrasem C6 seed drill 7
Pottinger Terrasem C6 seed drill 8 At least four hydraulic remote valves on the tractor are required and there are still taps on the drill that need to be changed Pottinger Terrasem C6 seed drill 8
Pottinger Terrasem C6 seed drill 9 Pottinger Terrasem C6 seed drill 9

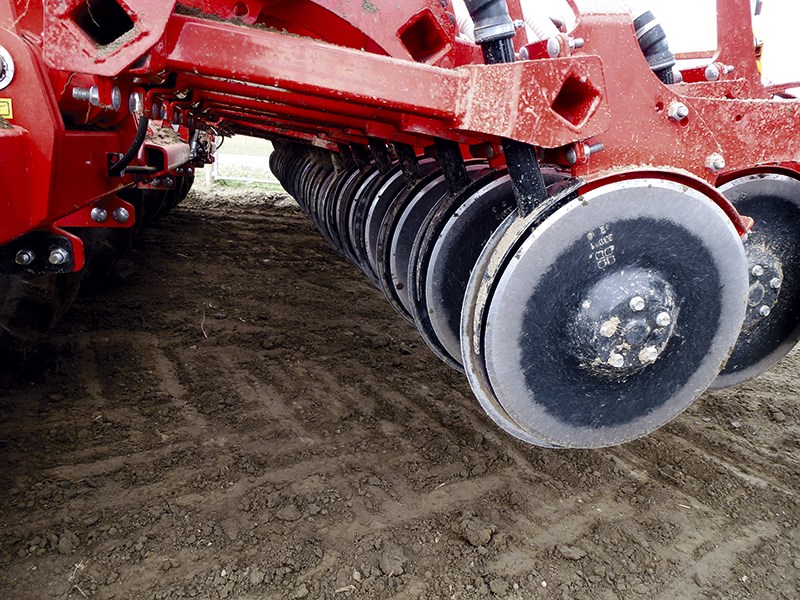

Pottinger Terrasem C6 seed drill 10 Double disc coulters use a slightly-leading disc to open a furrow and the seed is dropped between the two discs Pottinger Terrasem C6 seed drill 10

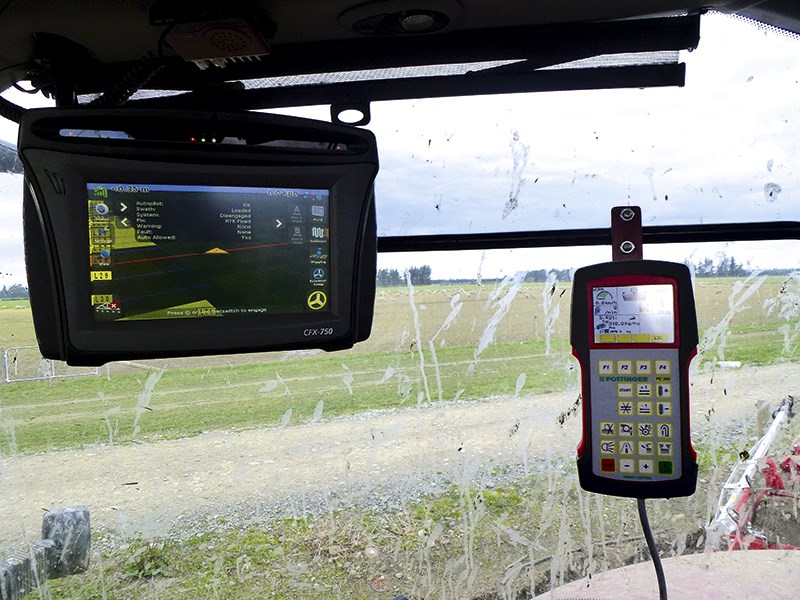

Pottinger Terrasem C6 seed drill 11 A straightforward and easy-to-use control box with a backlit colour display screen Pottinger Terrasem C6 seed drill 11
Pottinger Terrasem C6 seed drill 12 Pottinger Terrasem C6 seed drill 12

A drill is a huge investment for any operation, but Brent Lilley tested one that offers larger-scale arable farmers big savings thanks to its huge coverage.

In August I head to the heartland of New Zealand's arable industry, mid-Canterbury, to witness the Pottinger Terrasem C6 drill. With 6m of coverage, the new drill gives an impressive output of around 3 hectares per hour as it sows processing peas on Keith Wild's property near Chertsey.

It is pulled by a 305hp (224kW) Case IH Magnum, which has no problem given the Terasem’s recommended 10-12km/h.

CONTENTS

Design

Tillage Equipment

Packer Roller

Seed Hopper

Metering system

Fan and distribution head

Coulters

Controls

Verdict



POTTINGER TERRASEM C6 DRILL DESIGN

Pottinger -Terrasem -C6-seed -drill _2

The Pottinger Terrasem disc drill is designed as a trailing cultivator drill in order to cut down the number of passes required when establishing crops in a cultivated seedbed.

The drill works in three sections — tillage equipment at the front, followed by a packer roller, followed by the disc coulters for sowing. These are all mounted to a solid and stable box-section frame in the centre. Wings are used on either side of the mainframe in each section to give the machine a 6m working width, while also allowing it to fold up to a safe travel width of 3m. Over-width markers are fitted to the front and rear, along with a road lighting package.

At the front, a telescopic drawbar allows the drill to be used on tractors with duals, without compromising manoeuvrability. Linkage bar mounts on the lower link arms of the tractor, with a heavy-duty rotary joint to the drawbar, allow for impressive turns up to 90 degrees.

This drill is fitted with bout marker arms, although they weren't in use as the Case is running a Trimble GPS guidance and auto-steering set-up.

Back to top



POTTINGER TERRASEM C6 DRILL TILLAGE EQUIPMENT

The tillage equipment at the front end of the drill uses two gangs of 510mm scalloped discs at opposing angles to loosen and break up the soil while incorporating trash. The discs are in sets of two and are mounted to a hefty length of box section, with four rubber blocks allowing each individual set of discs to lift over rocks and obstacles.

The depth of the front gang can be set independently of the second gang, while hydraulic rams are used to lift both gangs out of work and set the overall depth — a scale that can be seen from the cab of the tractor allows the depth of the discs to be adjusted on the fly.

Behind the discs is a single row of spring tines with an adjustable depth to help leave a smooth and level seedbed. Steel guide plates on the outside edges of the discs keep the soil in, preventing it from spewing out onto the previous run.

The tillage equipment on the Terrasem is doing an impressive job. The ground being sown has been ploughed and cultivated once, but there are still some decent-sized clods on the surface, which I imagine would require at least one or two more passes with a cultivator or harrow and roller to create a seedbed for a conventional drill.

Back to top



POTTINGER TERRASEM C6 PACKER ROLLER

A tyre packer roller, after the tillage equipment and before the seed coulters is used to consolidate the seedbed before drilling, using 12 425/55 R17 tyres arranged in three sections. This is probably the widest packer tyre I have come across on a drill and it is doing an excellent job.

When the machine is working and lifted at the headland, the tillage equipment seed coulters are raised up, while the packer tyres remain in the same position. As the weight of the drill is spread over the entire width of the 12 tyres rotating independently, there will be minimal compaction and scuffing of the headland when turning.

When the outer wings, featuring three tyres on each side, are folded up for road travel it leaves six in the centre section. Of these, the centre two are hydraulically lifted automatically.

This greatly improves the stability of the drill and cuts down on tyre wear. The tyres are all mounted to the frame individually and slightly staggered, which should make it easier to get one out if you happen to get a puncture.

Back to top



POTTINGER TERRASEM C6 SEED HOPPER

A decent-sized seed hopper mounts longitudinally down the length of the machine and, at 3,000 litres, has plenty of capacity to keep you drilling for longer between fills, even when drilling larger seeds at higher rates.

There is a dust- and rain-proof tarpaulin cover that rolls clear of the hoppers, opening for full access, while a ladder from the left-hand side to the platform at the front of the hopper gives safe and stable access for the operator.

 Inside the hopper, a steel removable mesh prevents larger objects from getting into the metering mechanism and a seed-level indicator is located low under the mesh to allow drilling to continue down to a very low level.

The long rectangular shape of the hopper allows for the possibility of filling direct from a bucket, bulk bags or an auger. The drill on the day was being loaded with another Case IH tractor using a loader from Keith Wild's red fleet and although it is possible to load the drill with a tractor, it was awkward and the drill was jack-knifed. A telehandler would make the job easier.

Back to top



POTTINGER TERRASEM C6 METERING SYSTEM

Pottinger -Terrasem -C6-seed -drill _4

A single electronically-controlled metering system is used at the bottom of the hopper, dropping the seed directly into the main tube to the distribution head. The speed of the metering wheel is computer controlled and the ground speed is taken from a radar mounted at the front of the drill.

With a coarse and fine metering wheel that is easily changed without tools, and a gearbox with interchangeable gears, the Terrasem has infinitely variable drilling rates, from as low 1kg right up to 350kg. An outlet slide next to the metering unit is handy to empty any leftover seed out of the hopper.

Although the drill was calibrated when we got there, Chambers was happy to run me through the straightforward process. A flap on the metering unit, with a handy sensor to prevent it accidently being left open when you go drilling, is opened to divert seed into a collection container. A calibration sequence is selected on the control box in the cab of the tractor, which runs a measured amount of seed out.

Once this is weighed, the amount is entered into the control box and it will adjust the speed accordingly. The process can be completed again to check. This is incredibly simple compared to the pages of tables and calculations that I remember in the past.

Back to top



POTTINGER TERRASEM C6 FAN AND DISTRIBUTION HEAD

A hydraulically-driven fan is situated at the front of the drill, out of the dust. The speed is adjustable to ensure there is a high volume of air to pick up the seed and carry it through the distribution head and on to the coulters without damaging it. The fan was noticeably quiet when compared to some larger air seeders I've experienced overseas.

The distribution head is at the rear of the machine, above the centre section with 48 outlets. I believe this had two stand-out features incorporated into it, the first being a half-width shut, using a hydraulic ram to close off half of the outlets to one side of the drill. This, when combined with the metering unit that will halve the metered rate, will lead to savings when drilling out triangles or narrow finishing strips.

The second feature to impress me was a tramlining kit that shuts off up to six rows over two tramlines on the required run. Unlike many drills, this uses an electronic servo motor to divert the seed from the tramline rows back into the riser tube, while the metering unit once again reduces the seed rate accordingly, leading to seed cost savings.

Back to top



POTTINGER TERRASEM C6 COULTERS

Pottinger -Terrasem -C6-seed -drill _10

At the rear, there are 48 double disc coulters, spaced across the 6m width of the machine in two staggered rows to give row spacing of 125 mm (or 5 inches). The two discs are identical and have a 380mm diameter. They are mounted in a V-shape with one disc slightly leading the other, opening up a slot into which the seed is dropped. The discs are followed by a wide-press wheel that guides the depth of the coulter, ensuring a uniform depth and adequate soil contact to the seed.

The pressure on the individual coulter is hydraulically adjustable between 40kg and 120kg, while the depth via the press wheels is adjusted centrally with a ratchet adjuster. The coulters are once again mounted to a box section coulter rail, with four rubber blocks allowing for individual movement.

The coulter rail mounts to the back of the tyre packer, with a four-point parallel linkage ensuring the coulter follows the contours of the ground while maintaining the set down pressure. Coulters are lifted hydraulically from the cab of the tractor. This system works well on a drill this wide as, regardless of the ground contour, the individual coulters remain in contact with the ground.

This was evident on the uneven runs left from the previous run of the plough where the drill coulter followed in a wave pattern.

Back to top



POTTINGER TERRASEM C6 CONTROLS

The in-cab control box for this machine is an Isobus compatible Artis box, featuring a back-lit colour screen and a membrane panel with the buttons to control it. This control box is simple to use, with a customisable home screen displaying the forward speed, fan speed, seed rate, hopper level and the area covered. Several pages can be scrolled through on the screen to change settings and select the calibration sequence.

The rest of the hydraulic functions on the drill, including the fan drive, headland lift, cultivating depth, folding, track markers and coulter pressure, are controlled through the tractor hydraulics.

One of the few faults I have with this drill lie is, with six hydraulic functions to control, you require an absolute minimum of four remotes on the tractor to get the best out of the drill and even then you will need to get out to turn taps for folding, coulter pressure adjustment and track markers.

Pottinger does have a solution for this though, which is its Artis+ control box, featuring all the Artis box controls along with full control over all the hydraulic functions running through a power beyond coupling on the tractor.

Back to top



THE VERDICT

For me, this drill largely ticks all the boxes for those operating in a large arable situation with a lot of acres to cover. A drill like this is a huge investment for any farming operation, although there are some massive gains and savings to be made cutting down the number of cultivating passes over a field before sowing.

 I imagine this drill could easily cut out at least one or two passes in most situations. Also, the half-width and tramlining shut-offs, recycling the seed back into the system while lowering the seed rate, will lead to impressive savings on seed costs. Origin Agroup offers a range of Pottinger seed drills for those of you with fewer acres to cover and a smaller budget.

Back to top



The review was initilaly published in NewFarmMachinery magazine issue 5, December 2013. For the latest farm machinery news and reviews, subscribe to NewFarmMachinery magazine.

Click here to find tillage and seeding equipment for sale.
