REVIEW: John Deere 9410R 4WD tractor

By: Tom Dickson, Photography by: Andrew Britten, Video by: Andrew Britten

Presented by

The 410 horsepower, articulated 9410 R is part of the recently released 9R series of tractors from John Deere primarily designed for broadacre cropping, and is ideal for dragging scrapers and land planes, TOM DICKSON finds.

The first step and often the hardest is getting access to a new piece of equipment to review. On this occasion it’s a breeze.

The management team from Cervus Equipment could not have been more helpful and within a day its Ballarat dealership regional manager, Brad Fisher, has lined up a brand new 9410R recently delivered to the Barr family at Lismore, Victoria.

The Barr family, Greg and son Jeremy, have been farming in this area for about 30 years. They crop about 1,400 hectares of canola, wheat, barley and beans at Lismore and a further 700ha at Donald where Vetch hay is included in their cropping rotation.

Off in the distance, in freshly burnt stubble, I can see the 9410R expectantly observing our arrival. As we get closer it seems to grow and by the time we pull up alongside it a massive piece of machinery reveals itself.

Dual wheels with Michelin 620/70R42 tyres all round make the already impressive looking articulated tractor seem even bigger. I love its sleek sculptured look and can’t wait to take it for a spin.



Contents

Enigne

Transmission

Maintenance

Cab and controls

Hydraulics

PTO

Verdict

Specifications



John Deere 9410R engine

John Deere 9410R Tractor _enginejpg

In total there are eight models in the new 9R series. The smallest in the range is the 9360R, a 360hp (268.45kW) tractor sporting a 9-litre 6 cylinder version of the John Deere PowerTech engines.

The rest, eight models ranging from the 410hp (306kW) 9410R to the most powerful 560hp (418kW) 9560R all feature the same John Deere PowerTech PSX 13.5-litre inline 6 cylinder diesel engine.

Correct me if I am wrong but I am thinking that if the 410hp model has the same engine as the 560hp then it may be possible to access more power from the lower horsepower models via the computer or installing a different chip. I realise it’s not that simple but may be possible.

I was advised that the 13.5-litre PowerTech engines are still Tier 2. It is not yet a compulsory requirement for Australia to be Tier 3 or Tier 4 compliant and the longer that is the case the better.

The Tier 2 engine is a lower maintenance, trouble free motor and means there is no AdBlue, no exhaust gas recirculation (EGR) and no variable geometry turbocharger (VGT). It does however have a fantastic deep throaty note and doesn’t falter when we drop the 9m trailing scarifier into the ground.

Back to top



John Deere 9410R transmission

The Barrs upgraded from the standard 24-speed manual shift transmission to the more advanced 18-speed Power Shift with efficiency manager transmission.

The Power Shift transmission shift lever is conveniently mounted on the armrest of the seat, CommandArm. It has three positions of park, reverse or forward.

Once the lever is in either forward or reverse it is easy to perform clutchless gear changes by moving the little lever forwards or backwards. Operating the transmission this way has a traditional feel however, I find I get much better fuel economy by using the new efficiency manager.

By setting my speed to 9km/h then pressing the S1 button on the CommandArm, I let the tractor operate in cruise control. Straight away the software changes up a gear, decreases revs and the fuel I am using immediately drops by 5 litres per hour.

Back to top



John Deere 9410R maintenance

Daily engine oil checks can be done from the ground without the bonnet having to be lifted and that is probably a good thing because it weighs a tonne. Unlatching it is easy but it does take a bit of muscle to get it up, on the other hand it comes down easily under its own weight.

As far as I can tell the only time I would have to get off the ground to carry out maintenance is cleaning the engine oil filter.

It’s mounted high on the right-hand side of the tractor at the base of the cabin and is a little bit out of reach from the ground, but it appears possible to move around the outside of the cab using a carefully placed handrail for assistance.

The rest of the daily checks can all be done from the ground. Fuel, coolant and the combined hydraulic and transmission oil reservoir have visual sight gauges for quick inspection. Then there is just the normal greasing of the main articulating pivot and steering rams.

Back to top



John Deere 9410R cab and controls

John Deere 9410R Tractor _controls

A lot of tractors on the market have a door on the right-hand side of the cab, but have you ever asked why. You can’t ever use it because there is always a monitor or front end loader lever or some other piece of electronics in the way. Generally the hinge support or door lever only creates a hindrance to vision.

John Deere has taken a common sense approach and left the right-hand door off. In its place a huge single panel glass window is installed. While this adds to the already exceptional daytime vision a triple battery 12-volt system services a fantastic light package once the sun goes down.

The large cab offers plenty of space to move around in and includes an extra seat ensuring a bit of comfort for the passenger.

In terms of the articulated steering, I find it a bit jerky in the beginning but this is because I’m not used to the sensitivity of its response. Once I lessen my aggressiveness on the steering wheel the tractor responds in a very smooth manner even at low speed.

All the usual tractor performance info is provided for, and auto steer and mapping can be run through the GS3 Command Centre. But for convenience the Barrs have installed a larger autotrack monitor to permanently display mapping and GPS information.

It makes sense to run two monitors and it gives me a better idea of what is going on at all times without having to scroll through the screens.

Another highlight for me is the CommandArm console incorporated into the driver’s seat. It seems to be positioned perfectly and each function is very clearly labelled, as opposed to some which are more confusing creating stress for the driver.

An example of how John Deere is reducing the risk of error can be seen in the hydraulic switches.

If you are not using a set of remotes, the control switch inside the cab can be covered over, reducing your option only to those applicable to the specific job you are doing. Simple but effective.

From a driving point of view there is very little to do. Once I have engaged auto steer and pushed S1 for cruise I have plenty of time to listen to the surround sound system with built in subwoofer, familiarise myself with the GS3 Command Centre or just read the paper till I get to the end of the run.

With the correct set-up programming the 9410R can go through the process of turning on its own as well, which indicates we are not that far away from seeing driverless tractors taking a more active role in agriculture.

Back to top



John Deere 9410R Hydraulics

As it rolls off the production line, a standard 9410R with Power Shift transmission has a maximum hydraulic oil pump flow of 182 litres per minute, but again the Barrs wanted a little more security and peace of mind.

They boosted it up to 295 litres per minute with the optional high flow pump and added a fifth set of remotes to the standard four.

Hydraulic functions can be split between the two systems. Functions requiring high flow and low pressure can be combined on one system.

Airseeder fans and planter motors, while functions requiring high pressure and low flow such as implement lift, fold and down pressure, can be connected to the remaining system. The high flow will guarantee sufficient oil flow to maintain consistent fan speed at all times.

Hydraulic oil flow rate and timed flow can be programed to each remote, taking the guess work out of positioning implements in just the right place.

Back to top





John Deere 9410R PTO

John Deere 9410R Tractor _PTO

The optional 1,000 rmp, 1.75-inch (4.45cm) 20 spline power take-off (PTO) has been included on this tractor to extend its working capabilities.

My first observation is that the PTO is going to be a nuisance because the safety shroud mounted above and around the PTO shaft completely blocks my view of the drawbar pin from the driver’s seat.

However, I soon realised that when nothing is attached to the PTO shaft the safety cover can be folded down allowing a clear view to the drawbar.

The five sets of remote valves have also been mounted at the rear to the right of centre, so don’t provide any obstruction to the visibility of the drawbar either.

Jeremy Barr says they will be hitching up a PTO driven 10-tonne chaser bin during harvesting. He concedes it’s a bit of overkill using such a small chaser but it’s all they have at the moment. He’s hoping to upgrade to a much larger one down the track.

"Buying this tractor is not just about what we are doing today but what we want to be able to do in the future," he says.

For anyone who is thinking of purchasing one of these tractors for heavy haulage work I suggest upgrading the drawbar from the standard Category 4 drawbar support with a 2,470kg vertical load to the optional Category 5 with heavy duty drawbar support with 5,440kg vertical load, as the Barrs have done.

Back to top



The Verdict

The only thing bigger than the 9410R on this occasion is Western Victoria’s Mount Elephant standing prominently in the background, but the 9410R proves a Deere is more agile, has better grip and at 40km/h is much faster than an elephant.

It’s a beautiful looking tractor that is easy to access and exit, which may not seem that important to some but try scaling down from one of these massive machines that isn’t and you will soon appreciate its value.

It impressed me that this twenty plus ton mountainous machine hardly left a footprint suggesting that the dual wheels will dramatically reduce the effects of soil compaction and will be invaluable in the future when hauling much larger equipment than we have been playing with today.

John Deere 9410R Hits:

  • Dual wheels (traction without compaction)
  • Tier 2 engine
  • Simplicity/visibility and efficiency
  • Powershift transmission with efficiency manager
  • High flow hydraulic pump
  • Sounds powerful

John Deere 9410R Misses:

  • Aircleaner cleaning
  • Heavy bonnet

Back to top





John Deere 9410R Specifications

ENGINE

Make: john deere powertech

Hp/kw: 410/305

Capacity: 13.5 litres

Cylinders: 6

TRANSMISSION

Type: power shift with efficiency manager

Gears:18 forward/6 reverse

Speed range: 0-40km/h

ELECTRICAL

Volts: 12

No. Of batteries: 3

HYDRAULICS

Type: high flow

L/min: 295

Valves: 5

PTO: 1,000rpm

Shipping weight: 17,695kg

Back to top

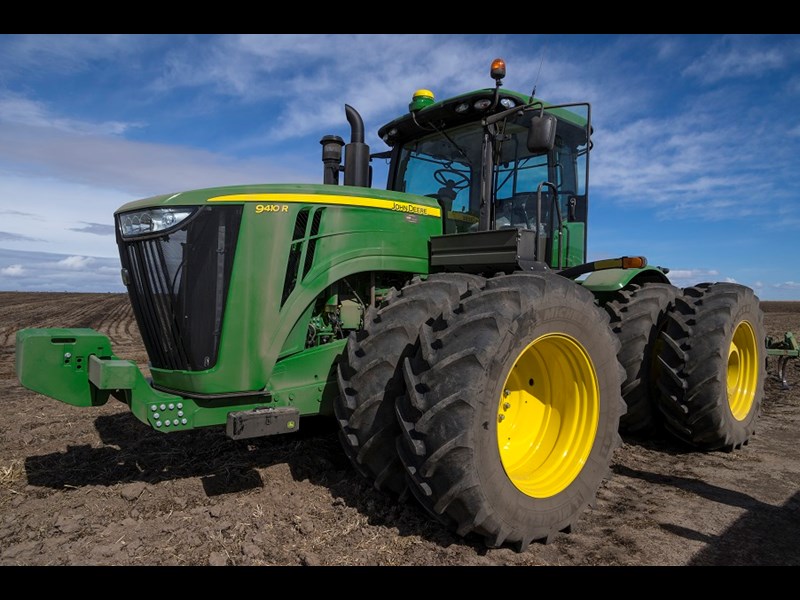

John Deere 9410R tractor 1 The latest in John Deere tractor technology. The articulated 9R series offer power and traction for serious cropping operations in Australia John Deere 9410R tractor 1

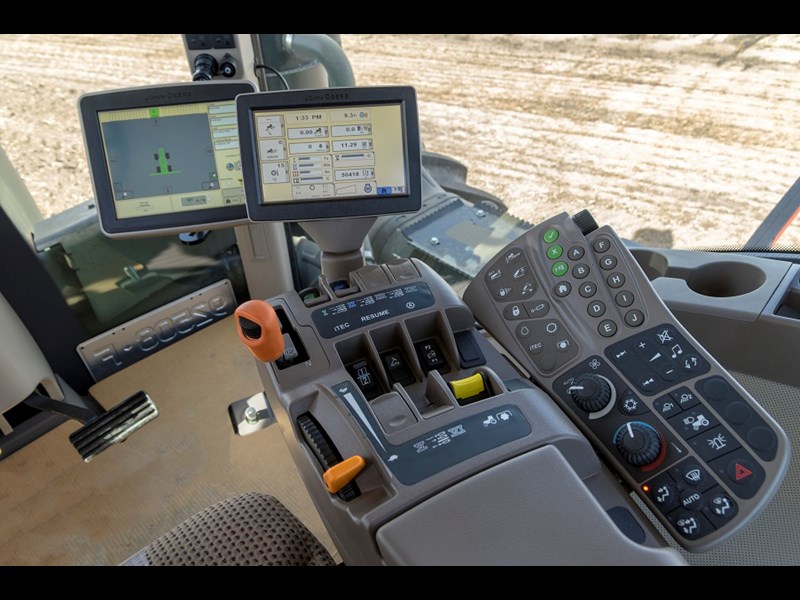

John Deere 9410R tractor controls The CommandArm console and GS3 Command Centre displays are uncomplicated and simple to operate. The extra monitor is designated to GPS and auto tracking John Deere 9410R tractor controls

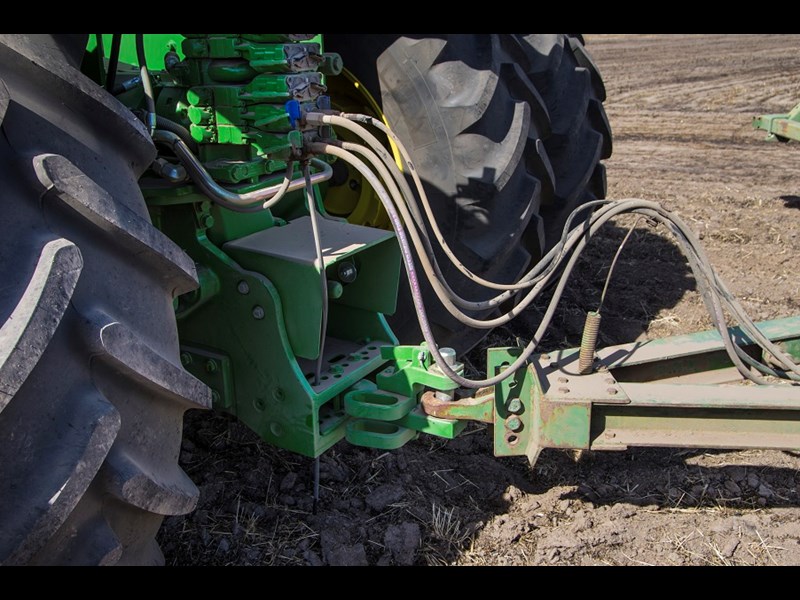

John Deere 9410R tractor drawbar The optional Category 5 drawbar with heavy duty drawbar support further enhances the pulling capabilities of the 9410R John Deere 9410R tractor drawbar

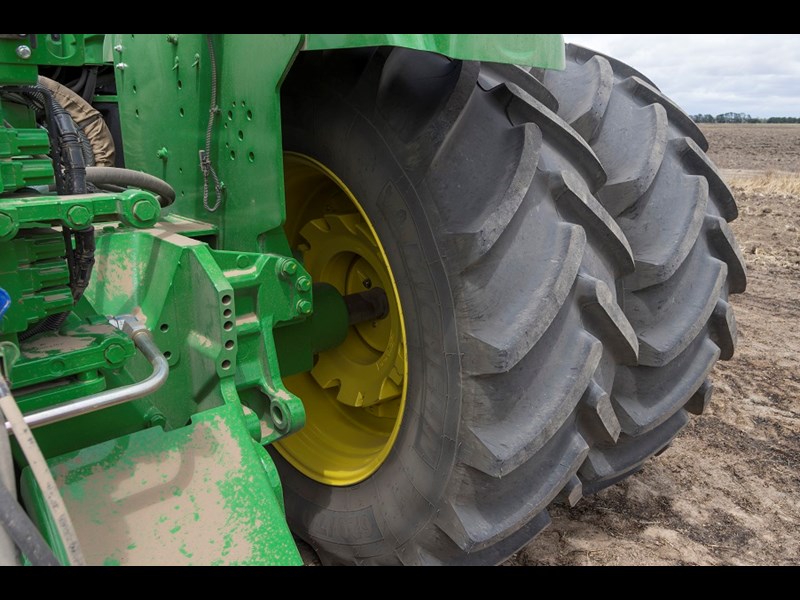

John Deere 9410R tractor dual wheels Michelin 620/70R42 duals all round guarantees maximum power to the ground with minimum soil compaction. John Deere 9410R tractor dual wheels

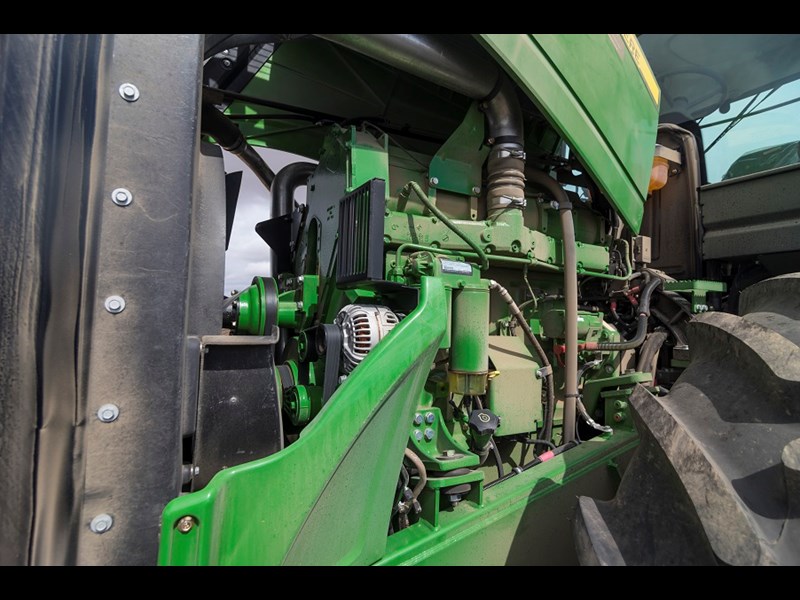

John Deere 9410R tractor enginejpg Under the bonnet the John Deere PowerTech PSX 13.5-litre engine is low maintenance and remains Tier 2 compliant. John Deere 9410R tractor enginejpg

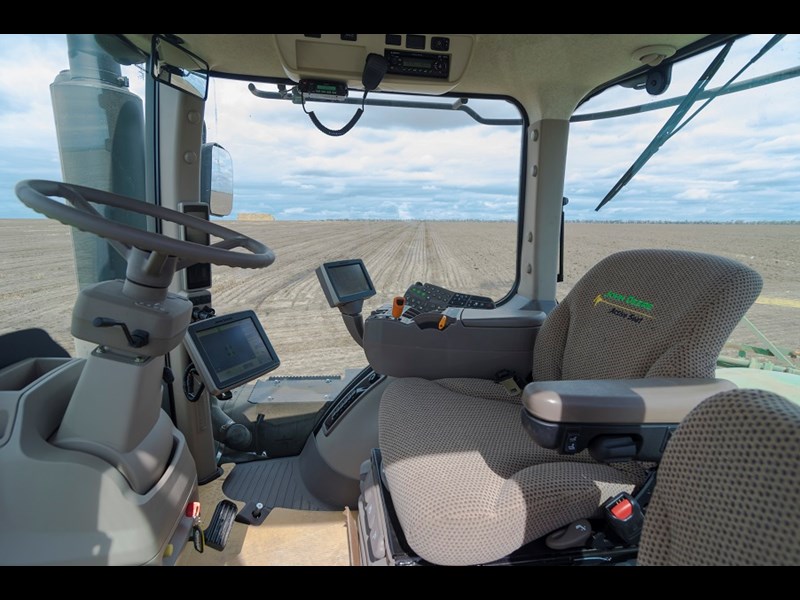

John Deere 9410R tractor interior The single panel window on the right-hand side provides maximum visibility from the driver’s seat. John Deere 9410R tractor interior

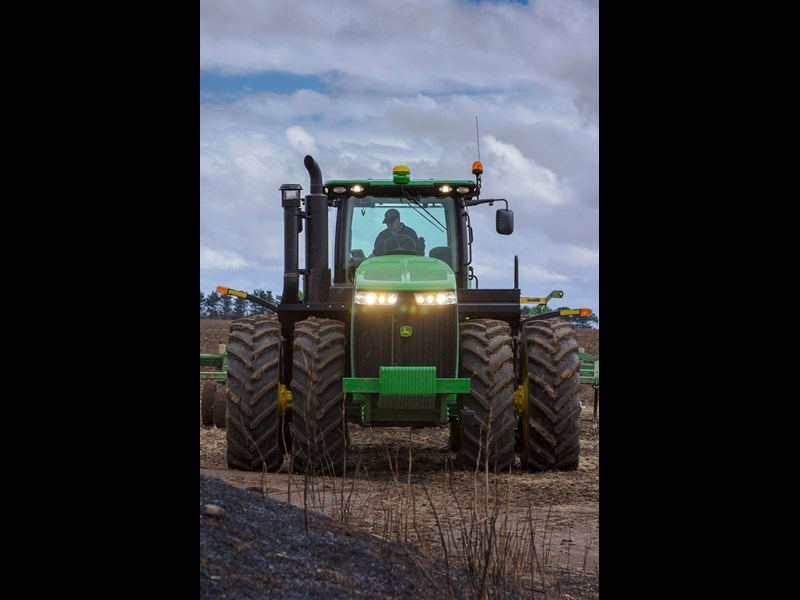

John Deere 9410R tractor lighting A three battery, 12V system power an exceptional light package. John Deere 9410R tractor lighting

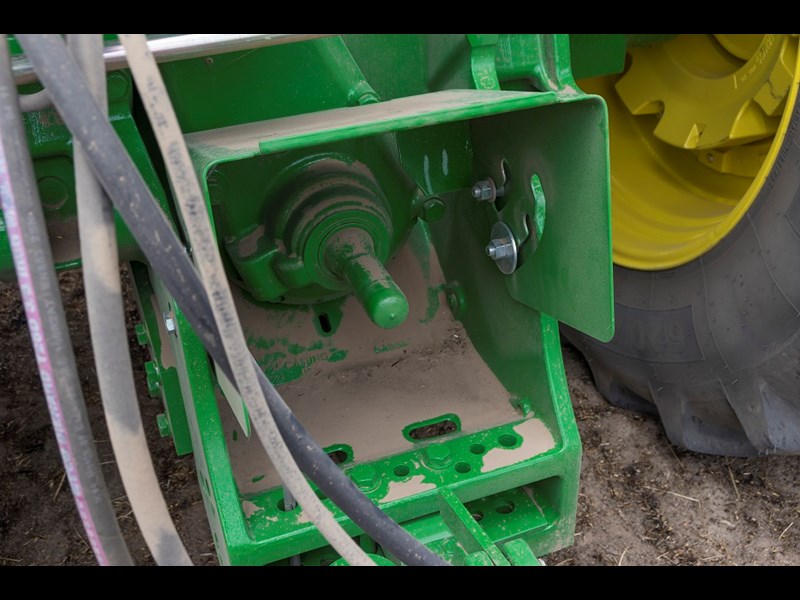

John Deere 9410R tractor PTO A 1,000rpm PTO with 1.75-inch 20 spline shaft will add another dimension to the 9410R’s usefulness on the Barr property. John Deere 9410R tractor PTO

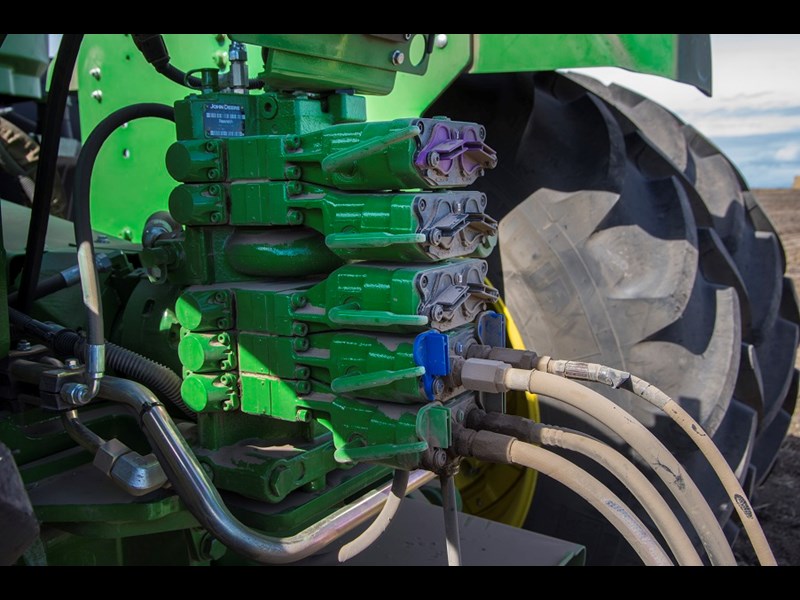

John Deere 9410R tractor remote valves The Barrs opted for the high flow hydraulic pump as well a fifth set of remote valves to complement the standard four. John Deere 9410R tractor remote valves

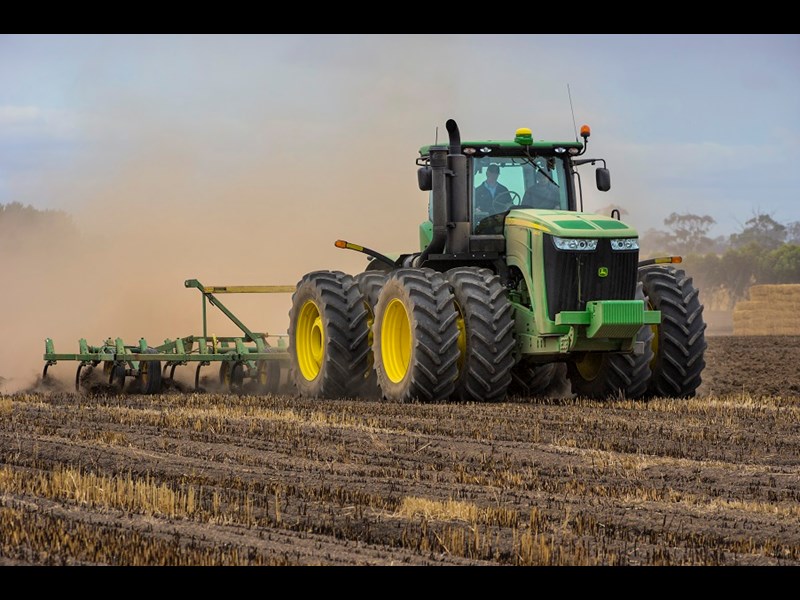

John Deere 9410R tractor wih scarifier The 9410R looks right at home raising dust with a 9m scarifier on the Barr property at Lismore in South West Victoria. John Deere 9410R tractor wih scarifier
